3.2 EWX11831 General characteristics
The electronic control system consists of three circuit boards.
In the event of problems with the touch sensors (difficulty selecting/adjusting them), clean and dry the display
and do not wear gloves when setting the chosen programme.

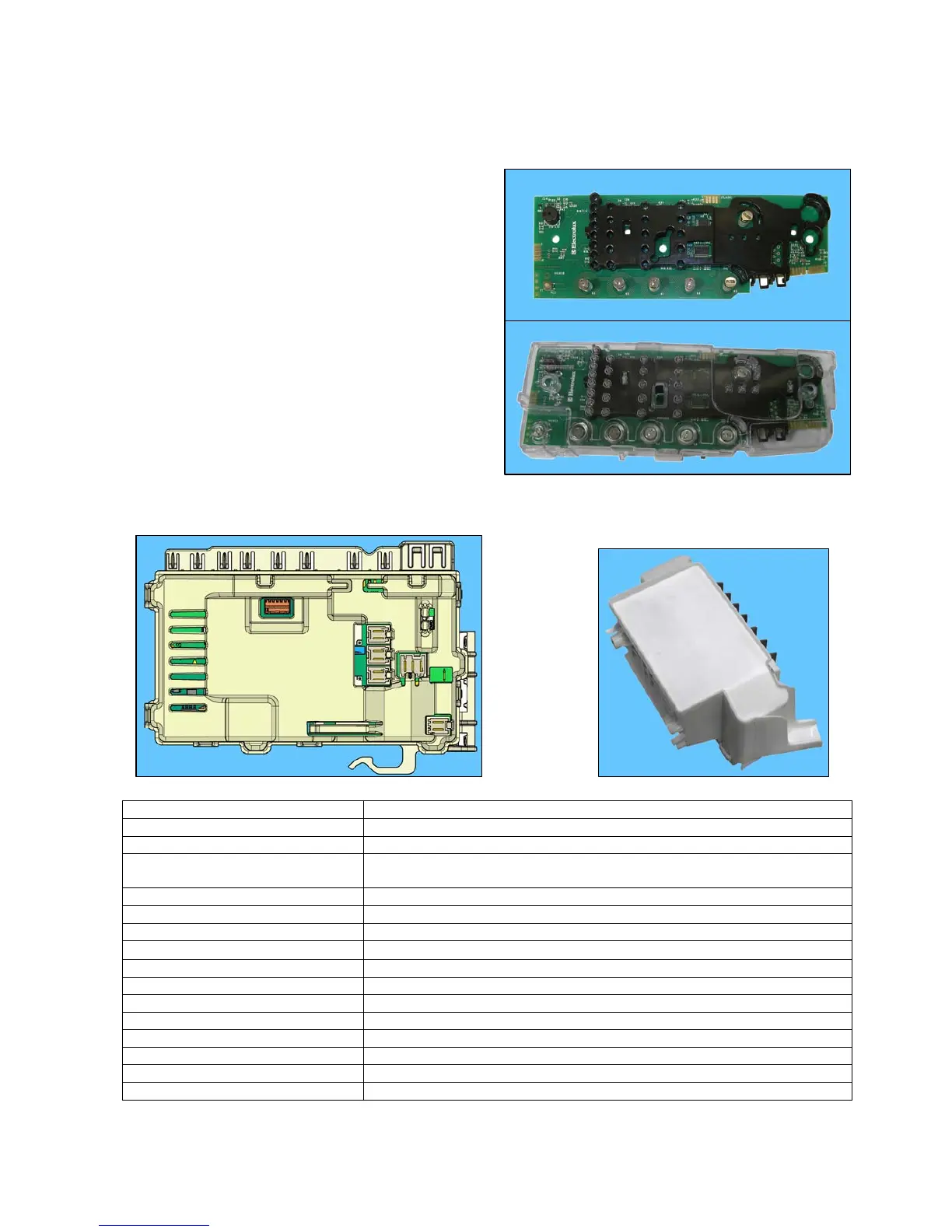

 The control/display board, which is inserted in
a plastic container fixed to the control panel
(the figure shows: the display board and the
display board assembly).
 The main circuit board is positioned at the rear of the appliance and powers the electrical components,
receiving commands from the display board as well as communicating with the motor control board
(Inverter UIMC).
No. of buttons
 Maximum 1
No. of touch-sensitive keys
 Maximum 6 (5 options + start/pause)
No. LEDs
 Maximum 27 yellow + 1 red LED + Digit (made up of 22 LEDs)
Power supply voltage
 220/240 V
 50/60 Hz (configurable)
Washing type
 Traditional with “Eco-IDB”
Rinsing system
 Traditional with “Eco-IDB”
Motor
 Two-pole asynchronous (three-phase)
Spin speed
 1,0001,600 rpm
Anti-unbalancing system
 AGS
Cold water fill
 1 solenoid valve with 1 inlet – 2 outlets
Detergent dispenser
 2 compartments: wash, conditioners
Control of water level in the tub
 Electronic/analogue pressure switch
Door safety interlock  Instant “Pull To Open”
Heating element heat outpu
t
 1,750 W with thermal fuses incorporated
Temperature check
 NTC probe incorporated in the heating element
Buzzer
 Traditional incorporated in the PCB
Inverter UIMC
EWX11831 Main Board
