14.2.5 Analogue pressure switch

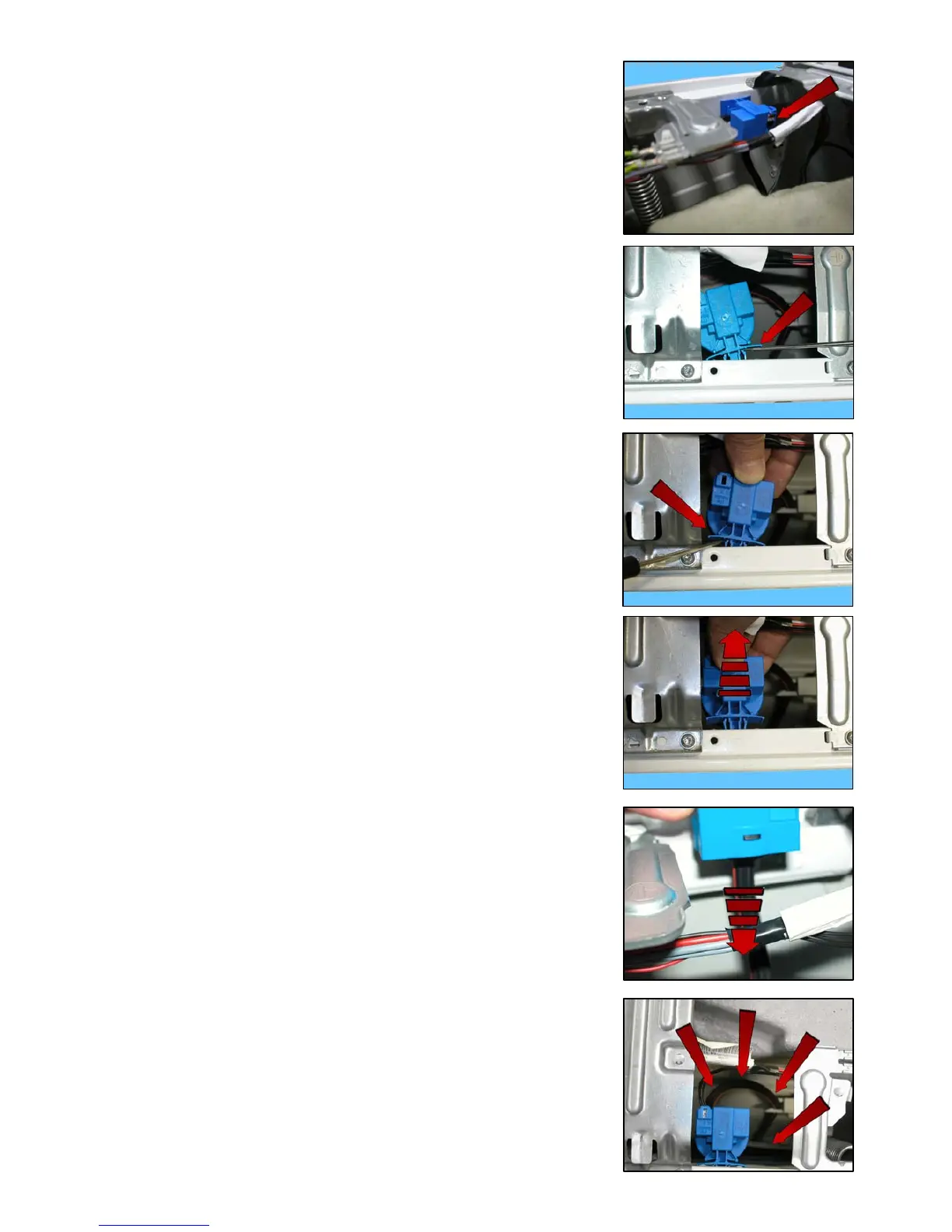

Remove the worktop (see relevant paragraph).
Remove the connector (red arrow)
Tighten the tabs which secure it to the cabinet, first on one side
then on the other.
Take it out.
Pull out the small tube which connects it to the pressure chamber.
When reassembling the pressure switch, repeat these steps in the reverse order.
arrange the pipe as shown in the figure, making sure it does not touch the
counterweight and position it in its purpose-provided seats incorporated into
the welded tub (shown by the arrows). To prevent the pipe from coming into
contact with the unit while the appliance is in operation.
