Detergent dispenser
New detergent dispenser assembly, with a dispenser assembly incorporated at the front, which is inserted into
the detergent inlet pocket of the appliance door bellow seal.

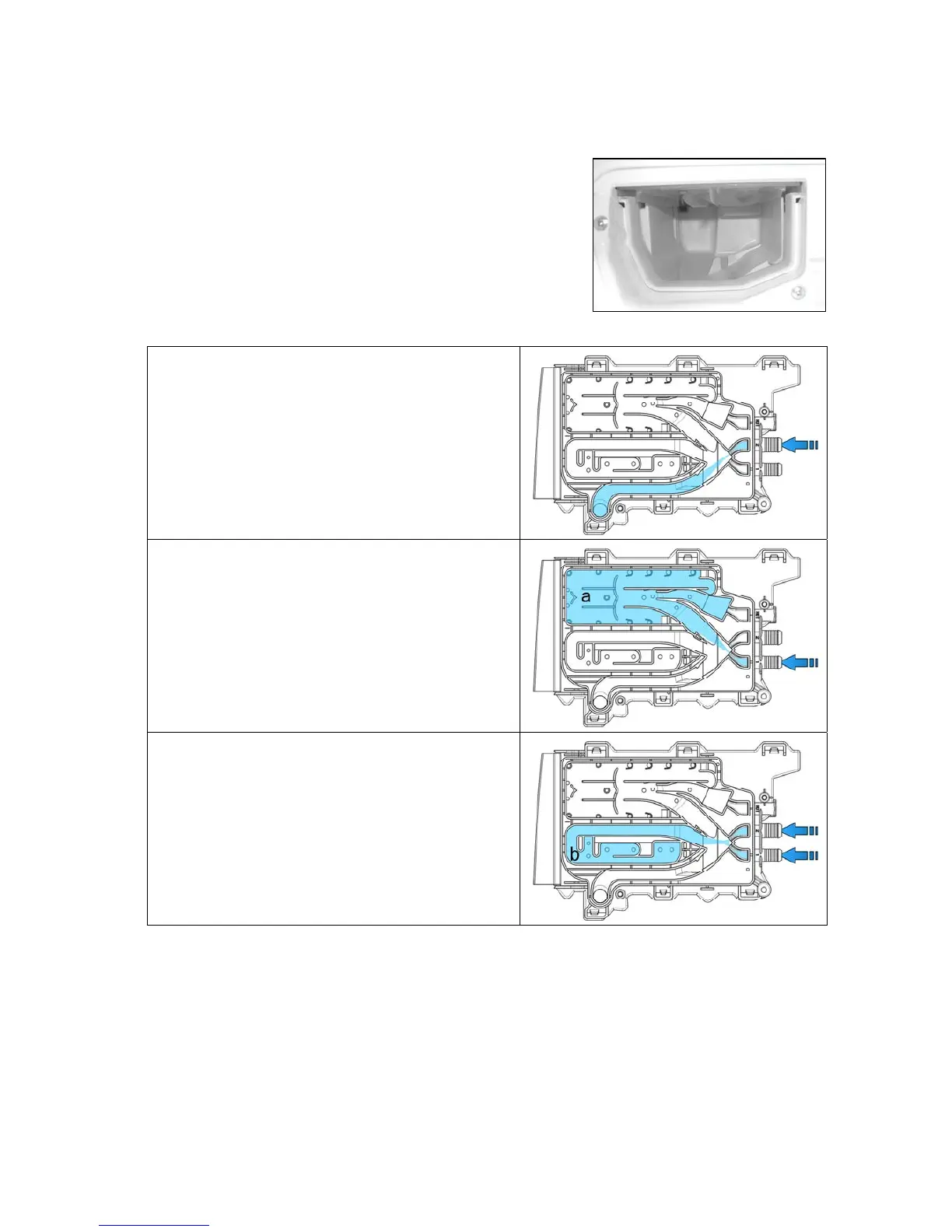

Operating principle of the conveyor.
Water fill directly to tub
(pre-wash solenoid)
There is no pre-wash compartment. If necessary, the
detergent must be introduced directly into the drum.
Water fill to wash compartment
(wash solenoid)
In all models: compartment “a” is used to contain
the detergent loaded at the start of the washing.
In the event of stains, mix stain removers with the
washing detergent (for powder detergent).
Water fill to conditioner compartment
(pre-wash and wash solenoid valves)
In all models: compartment “b” is used to contain
the conditioner, which is removed with the water
of the last rinse.
