15 ACCESSIBILITY (appliances with INVERTER motor control)
Make sure you wear gloves, because parts of the cabinet are sharp
15.1 Worktop
See page 65.
15.2 From the worktop, you can access
1 Main board
2 Solenoid valve
3 Display board/light diffuser/buttons/buttons springs assembly
4 Control panel
5 Analogue pressure switch
6 Detergent dispenser
7 Upper counterweight

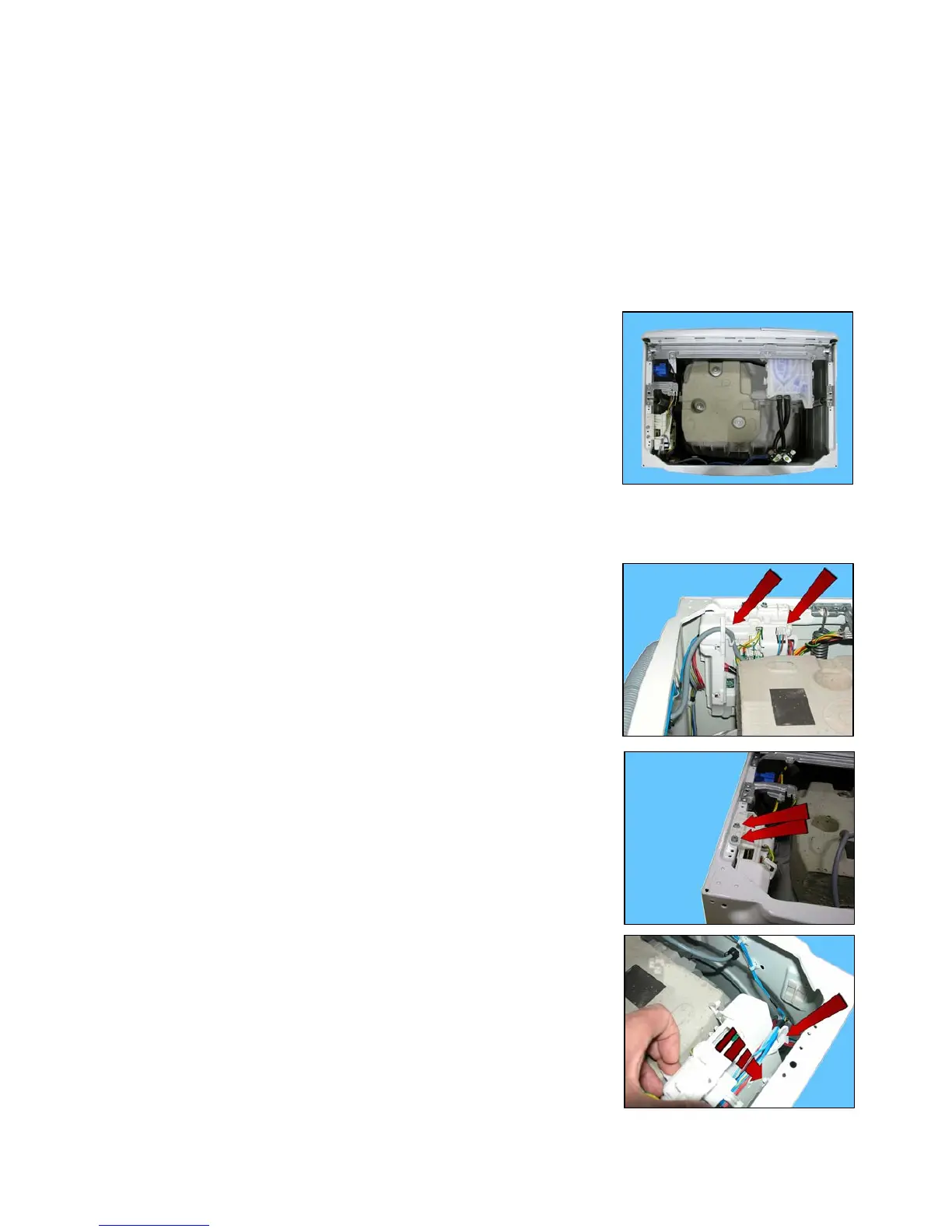

15.2.1 Main board
To service the main board, use the antistatic kit a code 4055063-95/4.
Remove the worktop (see relevant paragraph).
Remove the power cable from the hooks that hold it close to the board.
Slide off the connector.
Unfasten the two screws securing it to the cabinet.
Lower the power board assembly to remove the wiring from the hook shown
by the arrow.
