Electrolux EWX11831 - Technical Characteristics; Construction (Universal Motor)

Technical Support - MDM 34/104 599 77 39-16 Rev. 00
10 TECHNICAL CHARACTERISTICS

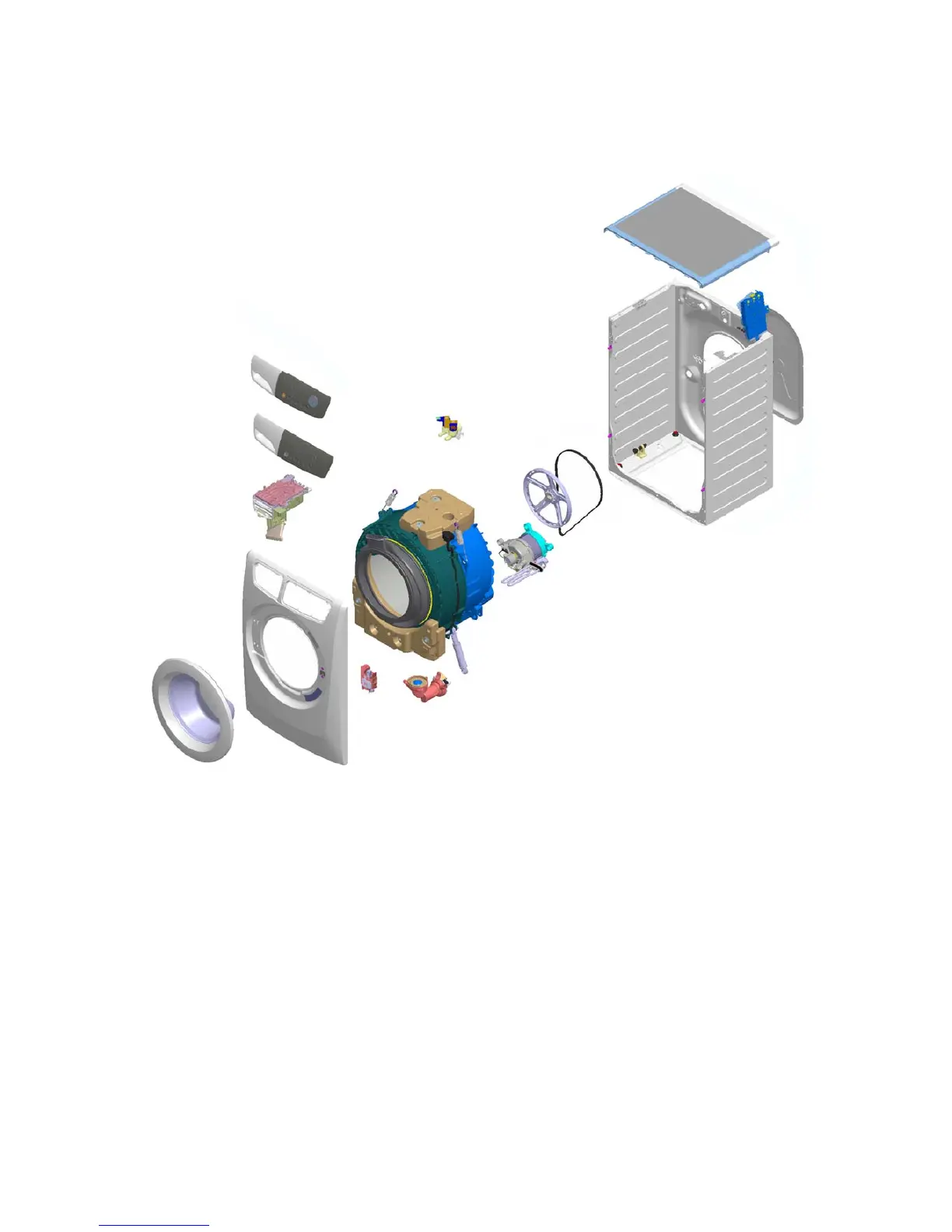

10.1 Construction characteristics (universal motor)
1. Door
2. Front panel
3. Door Lock
4. Control panel
5. Drainage pump
6. IDB (with drain filter)
7. Shock absorbers
8. Detergent dispenser
9. Washing unit suspension springs
10. Front counterweight
11. Solenoid valves
12. Upper counterweight
13. Analogue pressure switch
14. Heating
15. Pulley
16. Motor
17. Belt
18. Back unit casing
19. Main electronic circuit board
20. Worktop
21. Back panel
1
2
3
4
5
6
7
8 9
11
17
13
14
15
18
10
16
12
19
20
21
9
22
