Electrolux EWX11831 - Construction (Three-phase Motor, Inverter); Detergent Dispenser

Technical Support - MDM 35/104 599 77 39-16 Rev. 00

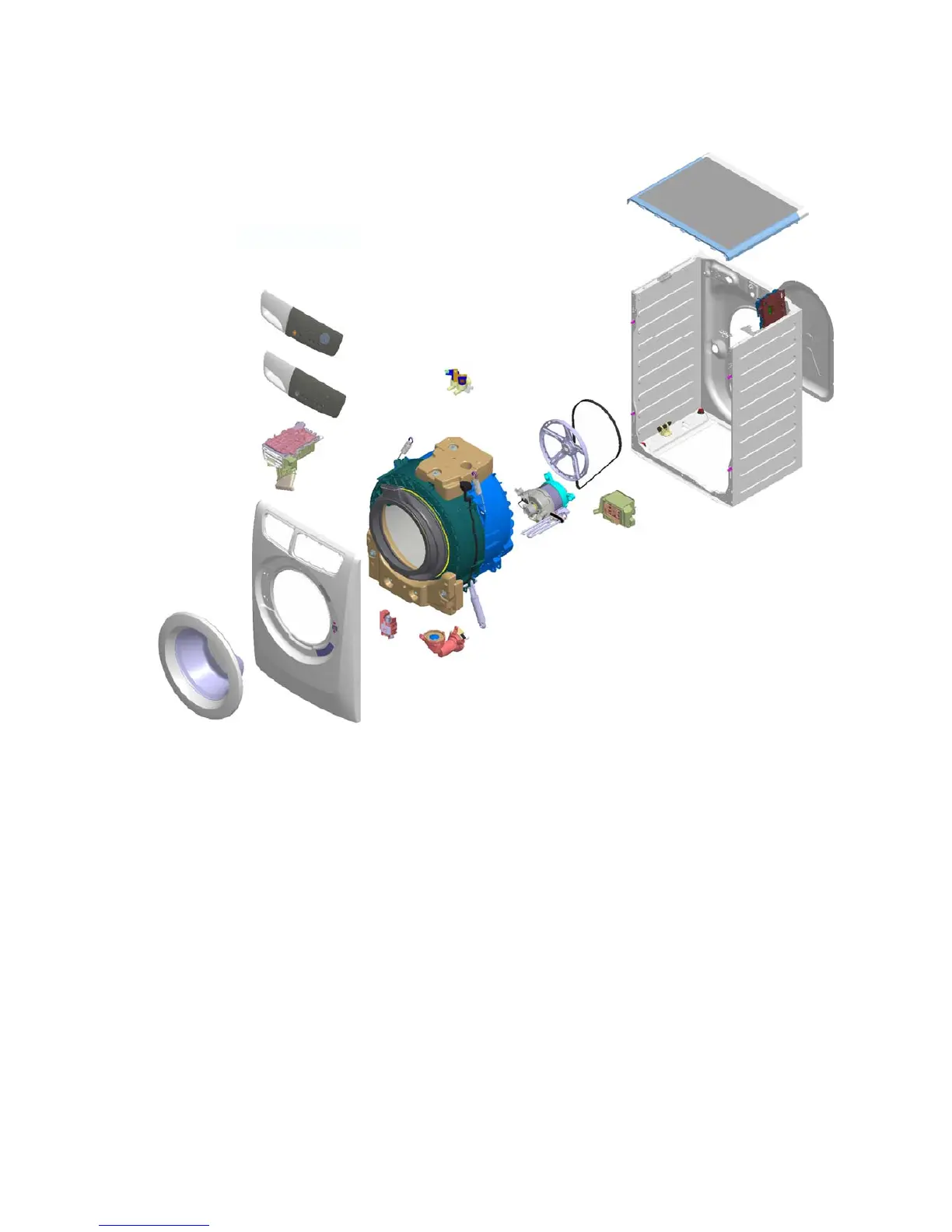

10.2 Construction characteristics (three-phase motor, Inverter)
1. Door
2. Front panel
3. Door Lock
4. Control panel
5. Drainage pump
6. IDB (with drain filter)
7. Shock absorbers
8. Detergent dispenser
9. Washing unit suspension springs
10. Front counterweight
11. Solenoid valves
12. Washing unit
13. Upper counterweight
14. Analogue pressure switch
15. Heating
16. Pulley
17. Motor
18. Belt
19. Inverter motor control board
20. Back unit casing
21. Main electronic circuit board
22. Worktop
23. Back panel
1
2
3
4
5
6
8
9
11
17
13
14
15
18
7
10
16
12
19
20
21
9
22
23
