14.5 Accessing the rear part
Make sure you wear gloves, because parts of the cabinet are sharp.

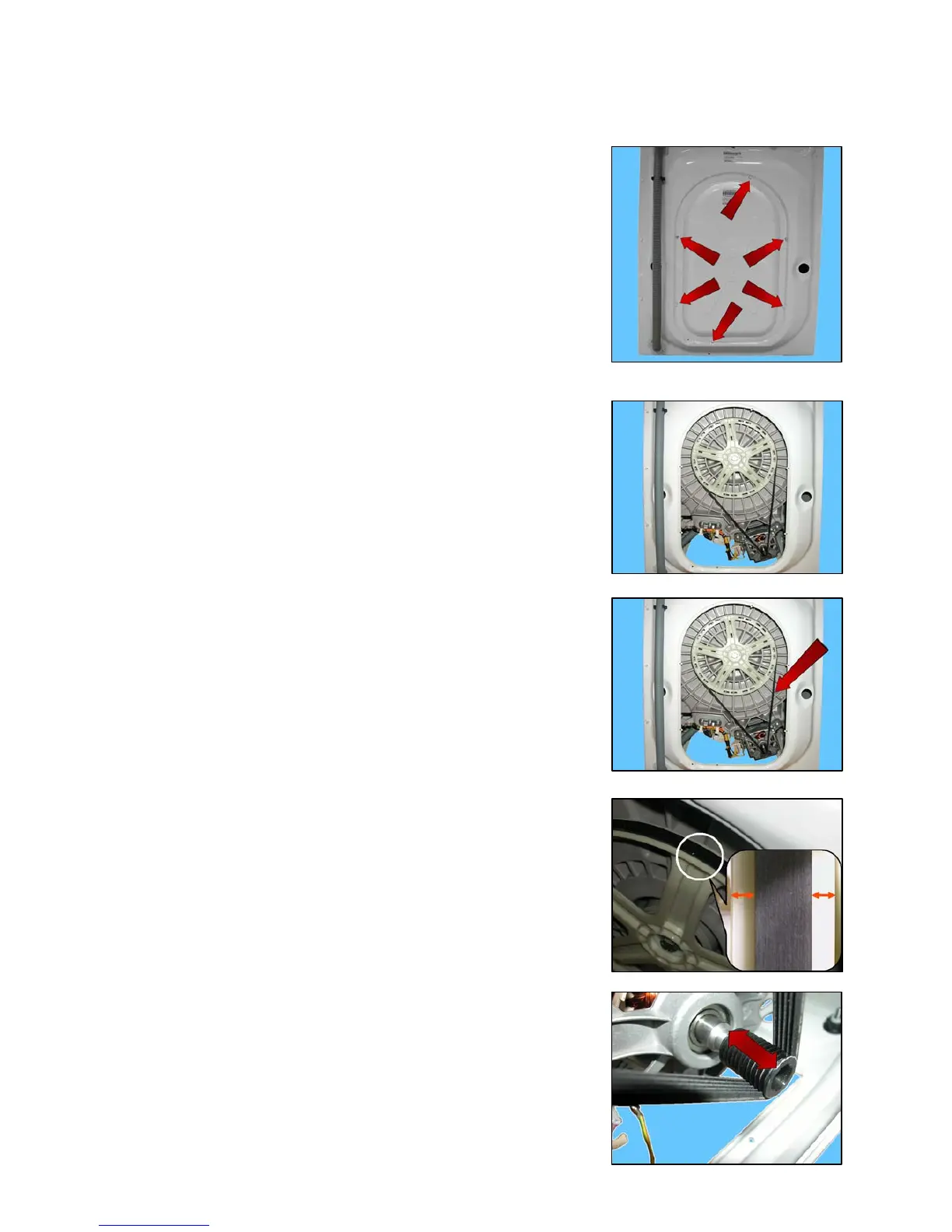

14.5.1 Back panel
Loosen the screws that fix it to the cabinet.
Do not fully unscrew the screw marked with the number 1.
14.6 From the back panel, you can access
1. Belt
2. Plastic pulley ( 273 mm)
3. Motor
4. Heating
14.6.1 Belt
Remove the back panel (see relevant chapter).
Hold the belt, and by turning the pulley, remove it.
When reassembling:
Position the belt and align it with the centre of the pulley ( 273 mm)
as shown in the figure.
Turning the pulley, check that the belt positions itself and remains in the
central part of the pulley.
If necessary, adjust the position of the belt on the drive pulley, so that it
is correctly positioned.
