Technical Support - MDM
38/104
599 77 39-16 Rev. 00
10.5
Washing unit
WASHING UNIT
Type
Load capacity (cottons)
Drum volume
max.
P49 7/8 kg 53 litres

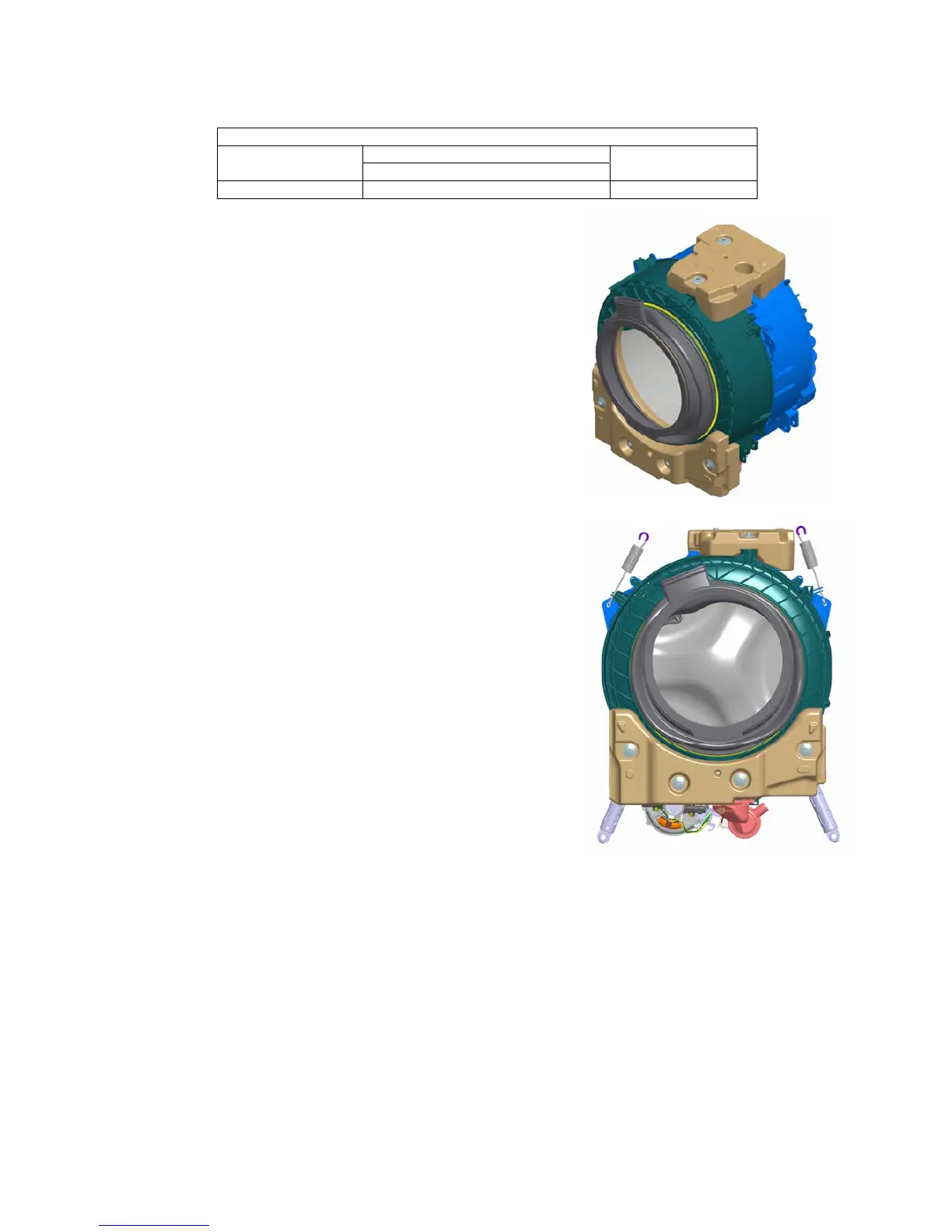

The washing unit is made up of:
A back casing (1) and a front casing (2), welded together to form
the welded tub. Inside this is the drum (6) (made of stainless steel)
with the three blades (7) (in carboran) snap-fastened to the drum.
To balance the unit during the washing movements and during the
spin phases, the two counterweights are secured in place with
screws: one at the front (3) and one at the top (4).
The bellow seal (5) is fixed at the front.
The washing unit is suspended by two coil springs (8) attached
to the top crosspiece, and the oscillations are dampened by two
shock absorbers, one on the right (9) and one on the left (10)
(looking straight at the front of the appliance).
1
2
3
4
5
6
7
8 8
10
9
