And the fluff filter is in the centre of the IDB.
When reassembling, repeat the same steps in the reverse order, tightening
the screws at a torque of 1.5 Nm.

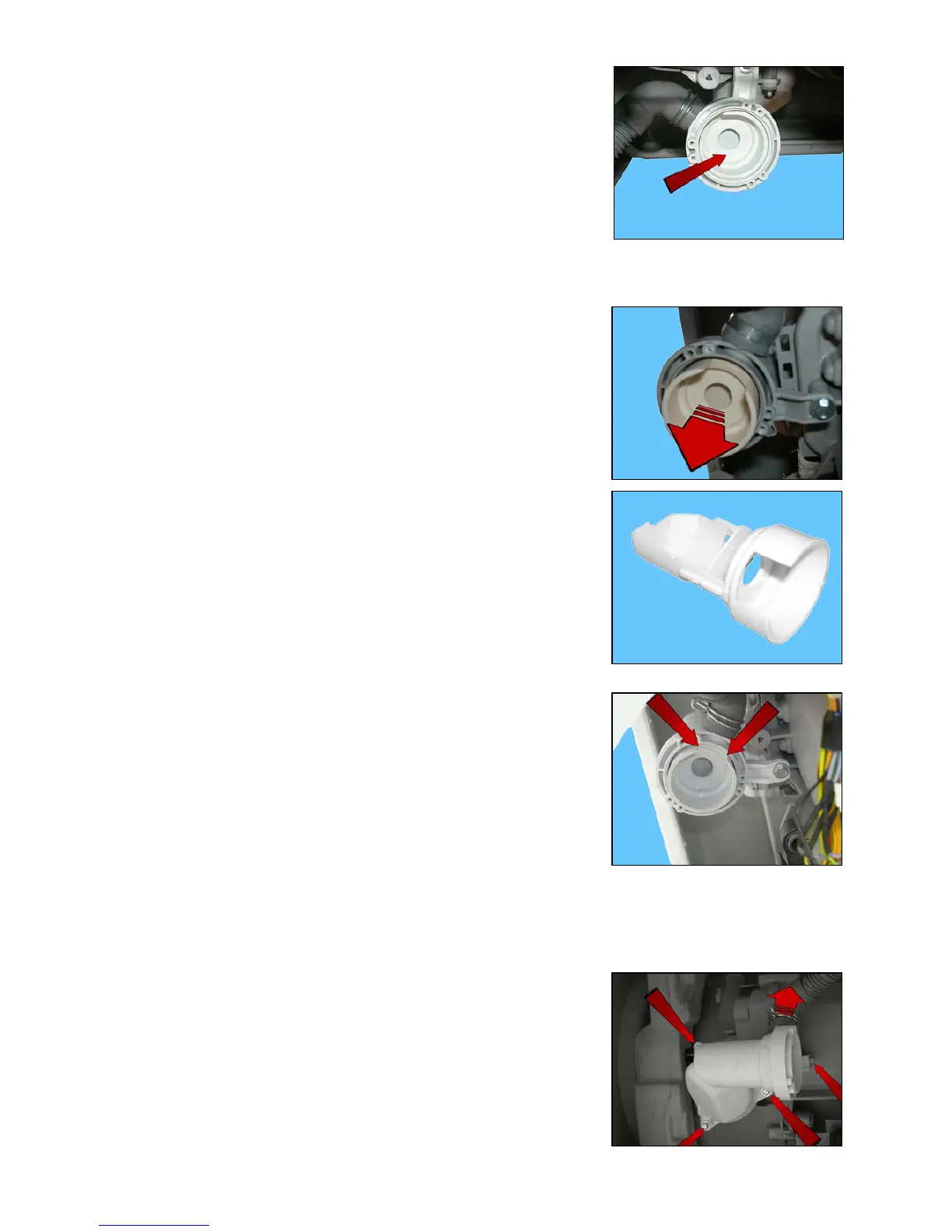

14.7.1.2 Drain filter
Remove the back panel to make certain operations easier.
Empty the drain circuit.
Lay the appliance onto its left side (the side where the detergent dispenser is).
Remove the pump (see relevant paragraph).
Take the filter out of its seat (IDB).
Filter or needle trap.
When inserting the filter in its seat, make sure the indented part (shown by
the arrows) is facing towards the drain pipe.
If inserted incorrectly, it will be difficult to insert the filter completely in
its seat.
If the filter has not been inserted or if it has been positioned incorrectly,
the appliance will report the alarm E21.
14.7.1.3 IDB (Integrated Drain Body)
Remove the drain pump (see relevant paragraph).
Pull out the main drain pipe.
Remove the screws that secure it to the welded tub.
