Electrolux EWX11831 - Access from Front Panel (Inverter); Accessing the Rear Part (Inverter); Access from Back Panel (Inverter)

Technical Support - MDM 97/104 599 77 39-16 Rev. 00

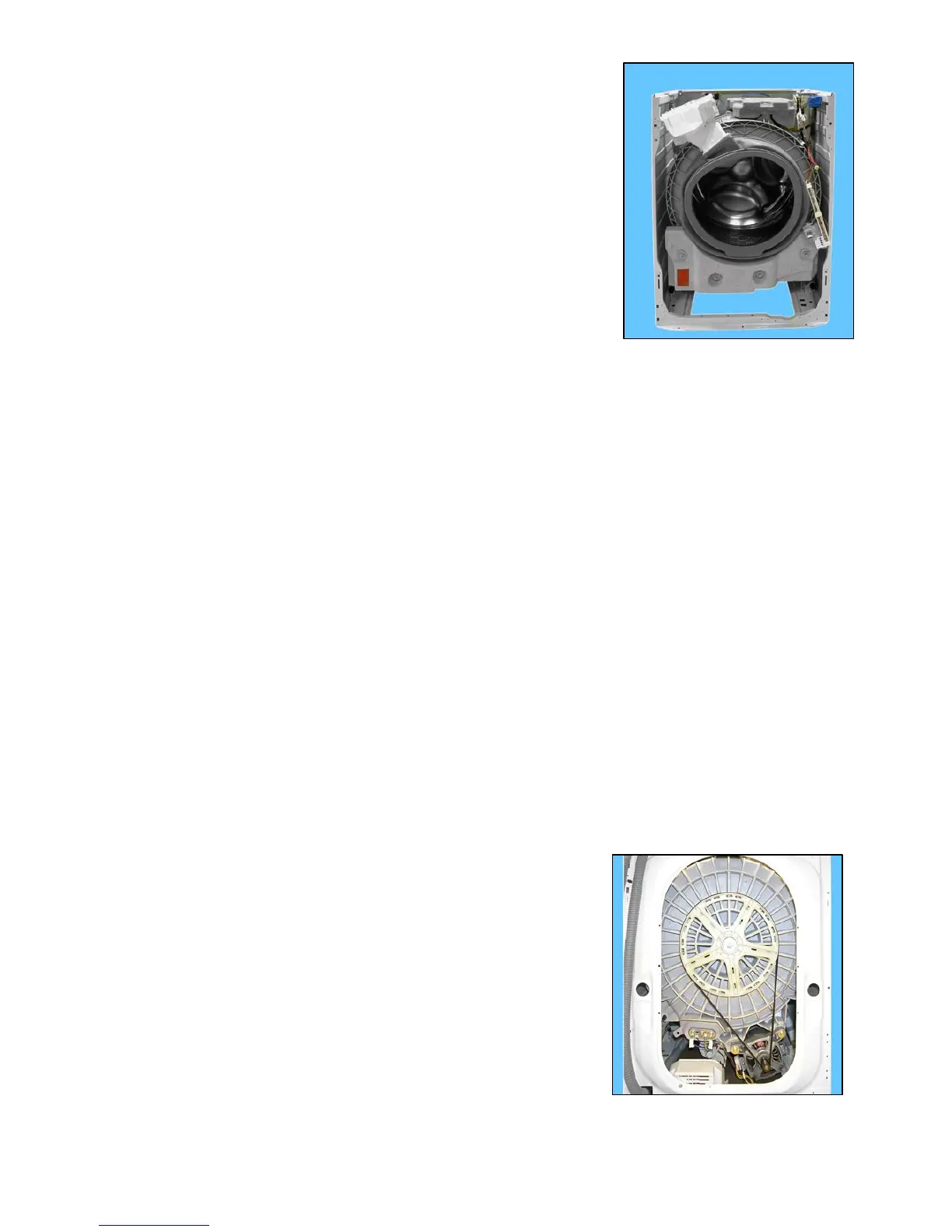

15.4 From the front panel, you can access
1. The front counterweight
2. Bellow seal
3. The welded tub assembly
4. The tub suspension springs
15.4.1 Front counterweight
See page 82.
15.4.2 Bellow seal
See page 82.
15.4.3 Welded tub assembly
See page 82.
15.4.4 Tub suspension springs
See page 83.
15.5 Accessing the rear part
Make sure you wear gloves, because parts of the cabinet are sharp.
15.5.1 Back panel
See page 84.
15.6 From the back panel, you can access
1. Belt
2. Plastic pulley (Ø 273 mm)
3. Motor
4. Heating
5. UIMC
6. Drainage pump
7. Fluff filter
15.6.1 Belt
See page 84.
1
2
3
4
1
2
3
4
5
6
