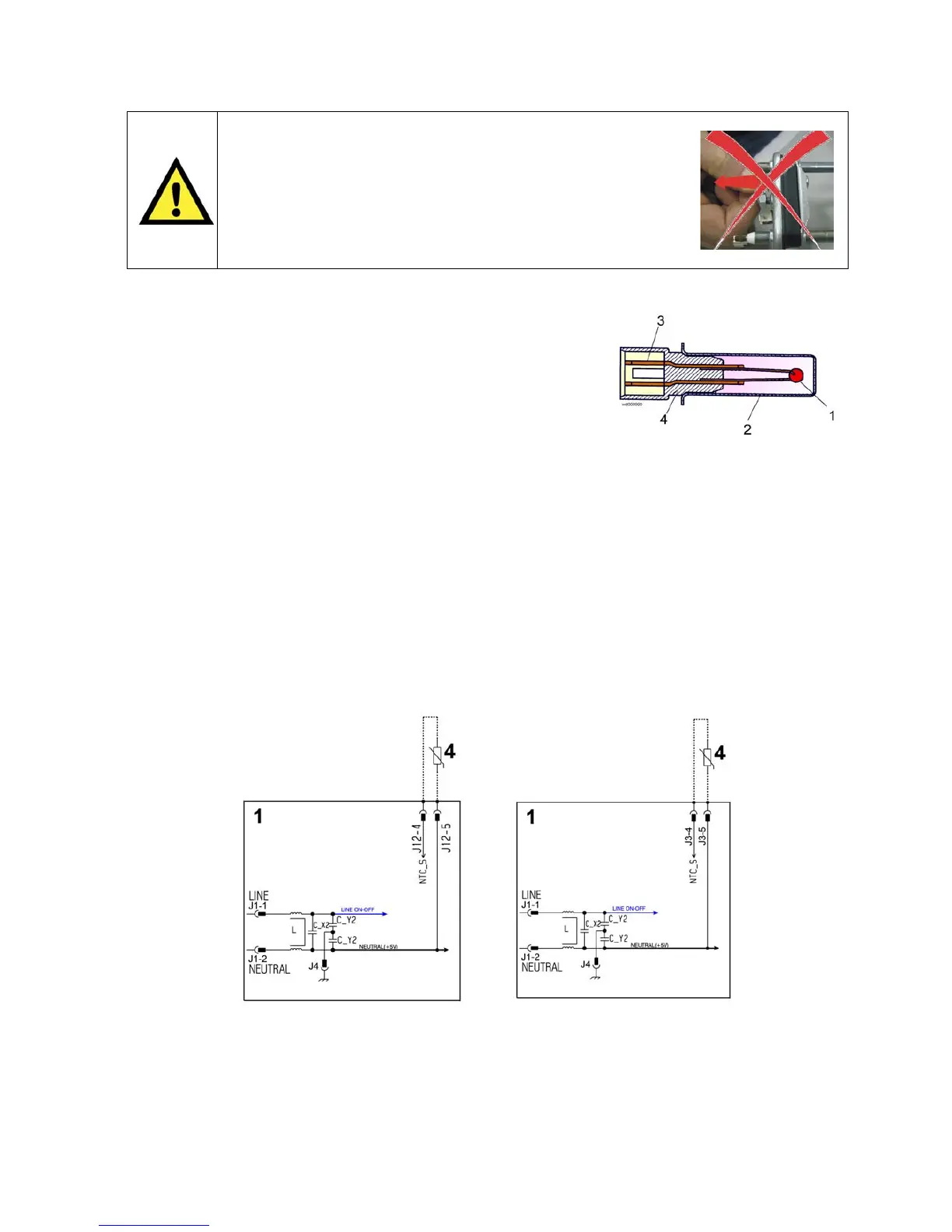

11.5
Temperature probe
When replacing the heating element, please refer to the code
shown in the list of spare parts relating to the appliance.
It is strictly forbidden to tamper with the heating element
in any way!!!
(e.g. replace the NTC probe, etc...)
11.5.1 General characteristics
1. NTC heating element
2. Metal capsule
3. Terminals
4. Plastic casing
An NTC type probe is used to control the washing temperature: it is built in such a way that its internal
resistance decreases as the temperature rises. This drop in resistance is detected by the electronic control
which, when the desired temperature is reached, disconnects the heating element.
The temperature of the water is controlled by the circuit board by means of an NTC temperature probe
incorporated in the heating element.
Diagram with universal Motor Diagram with Inverter
1. Main electronic circuit board
4. NTC probe
1. Main electronic circuit board
4. NTC probe
In the event of a fault (short-circuit or stoppage) an alarm will be displayed - see table of alarms.
