4.1 EWX13611 General characteristics
The electronic control system consists of two circuit boards.
In the event of problems with the touch sensors (difficulty selecting/adjusting them), clean and dry the display
and do not wear gloves when setting the chosen programme.

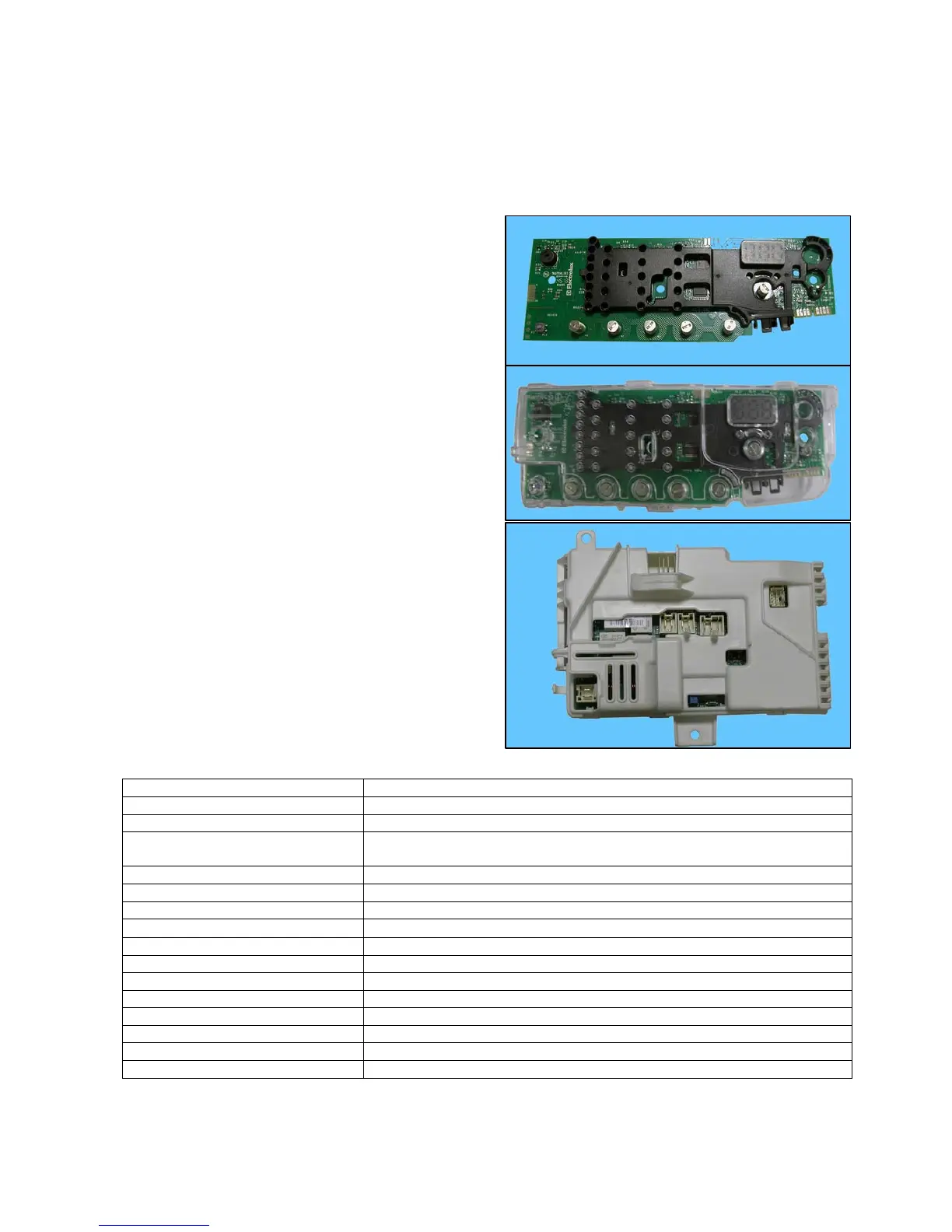

 The control/display board, which is inserted in
a plastic container fixed to the control panel (the
figure shows: the display board and the display
board assembly).
 Main board, positioned at the rear of the appliance.
It powers the electrical components and receives
commands from the display board.
No. of buttons
 1 Maximum
No. of touch-sensitive keys
 Maximum 6 (5 options + start/pause)
No. LEDs
 Maximum 24 yellow + 1 red LED + Digit (made up of 22 LEDs)
Power supply voltage
 220/240 V
 50/60 Hz (configurable)
Washing type
 Traditional with “Eco-IDB”
Rinsing system
 Traditional with “Eco-IDB”
Motor
 Collector, with tachometric generator (Universal)
Spin speed
 1,0001,600 rpm
Anti-unbalancing system
 AGS
Cold water fill
 1 solenoid valve with 1 inlet – 2 outlets
Detergent dispenser
 2 compartments: wash, conditioners
Control of water level in the tub
 Electronic/analogue pressure switch
Door safety interlock
 Instant “Pull To Open”
Heating element heat outpu
t
 1,750 W with thermal fuses incorporated
Temperature check
 NTC probe incorporated in the heating element
Buzzer
 Traditional incorporated in the PCB
