Technical Support - MDM
86/104
599 77 39-16 Rev. 00
14.7
From the base of the appliance, you can access
1. Drain water circuit
2. Pressure chamber
3. Shock absorbers
14.7.1 Drain water circuit

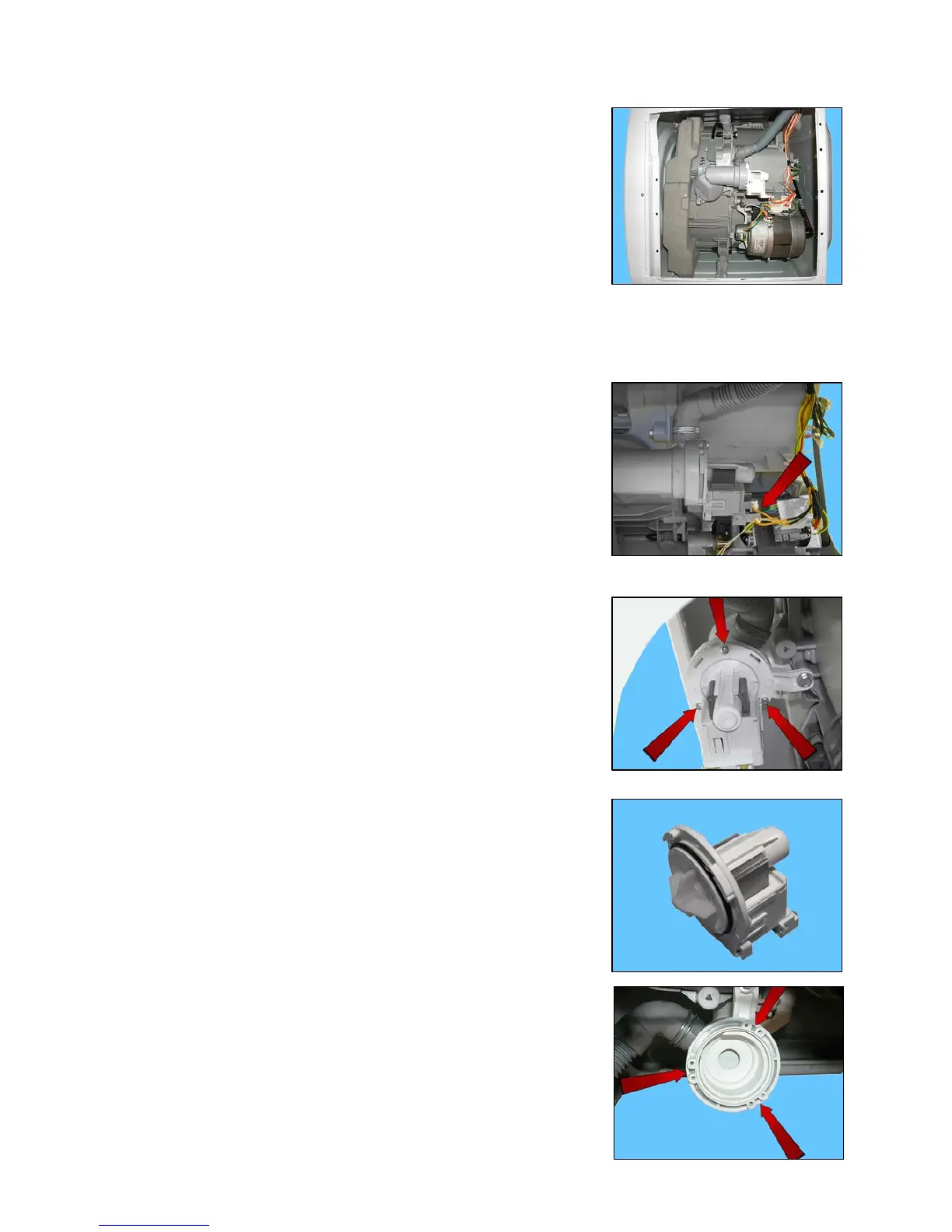

14.7.1.1 Drainage pump
Remove the back panel to make certain operations easier.
Empty the drain circuit.
Lay the appliance onto its left side (the side where the detergent dispenser is).
Disconnect the connectors.
Before removing the pump, make sure the drain circuit is empty.
Place a protection over the motor to avoid any water drops from falling into it.
Loosen the three screws which secure it to the new drain circuit
(IDB see page 86).
When reassembling:
tighten the screws at a torque of 1.5 Nm.
Pump
Once you have removed the pump, you will see that the IDB features
six slots, if three of the slots are damaged, you can use the other three.
1
2
3
3
