Insert the pipe and secure the pressure chamber.
14.7.3 Shock absorbers
Empty the drain circuit.
Lay the appliance onto its left side (the side where the detergent dispenser is).
Right-hand shock absorber from the rear.
Left-hand shock absorber from the rear.
14.7.4 Shock absorber pin

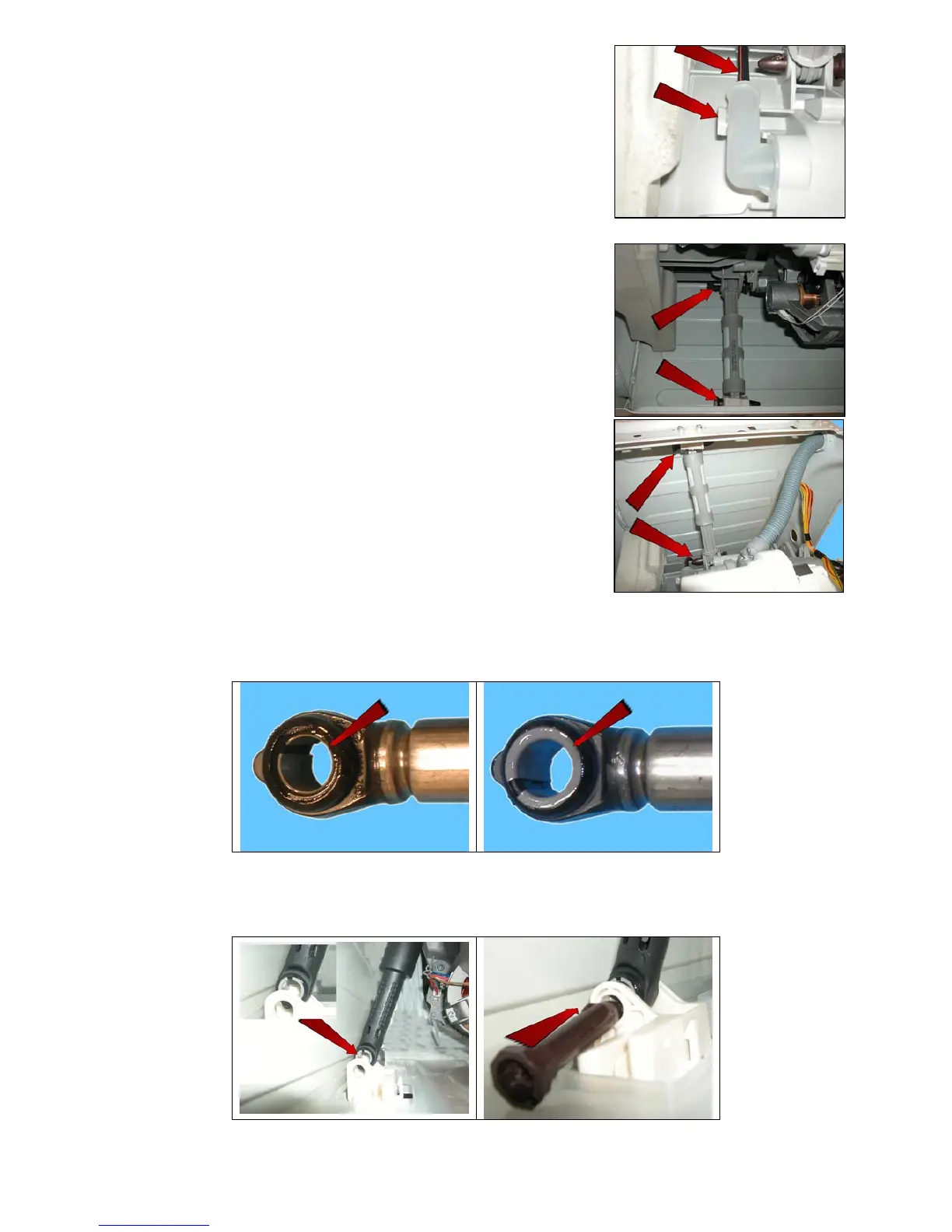

The principle is still the same, even if the photographs show different components and situations.
There is a bushing on either end of the shock absorber. It has a wider profile on one end to avoid it becoming
dislodged when the pin is inserted (see the two figures below).
When positioning the shock absorber inside the fastening (situated at the bottom of the cabinet or in the tub),
take care when positioning the bushing, so as to insert the pin from the part of the bushing with the widest profile.
The spare bushing is supplied under code 344 91 25-30/5.
If you are having difficulty inserting the pin, grease it a little (code 5026 24 16-00/6).
