6.3 Phases of the diagnostics test
Irrespective of the type of electronic board and of the configuration, once the diagnostics system has been activated,
touch sensor S1 to run a diagnostic check of the various components and the alarm reading (touch sensor S1
(Programme) to progress in sequence from the top down, or touch sensor S2 (Temperature) to go back).
Where featured, the Display (P3.0) indicates the description provided in the last column of the table below.
(All alarms are enabled in the diagnostic cycle.)

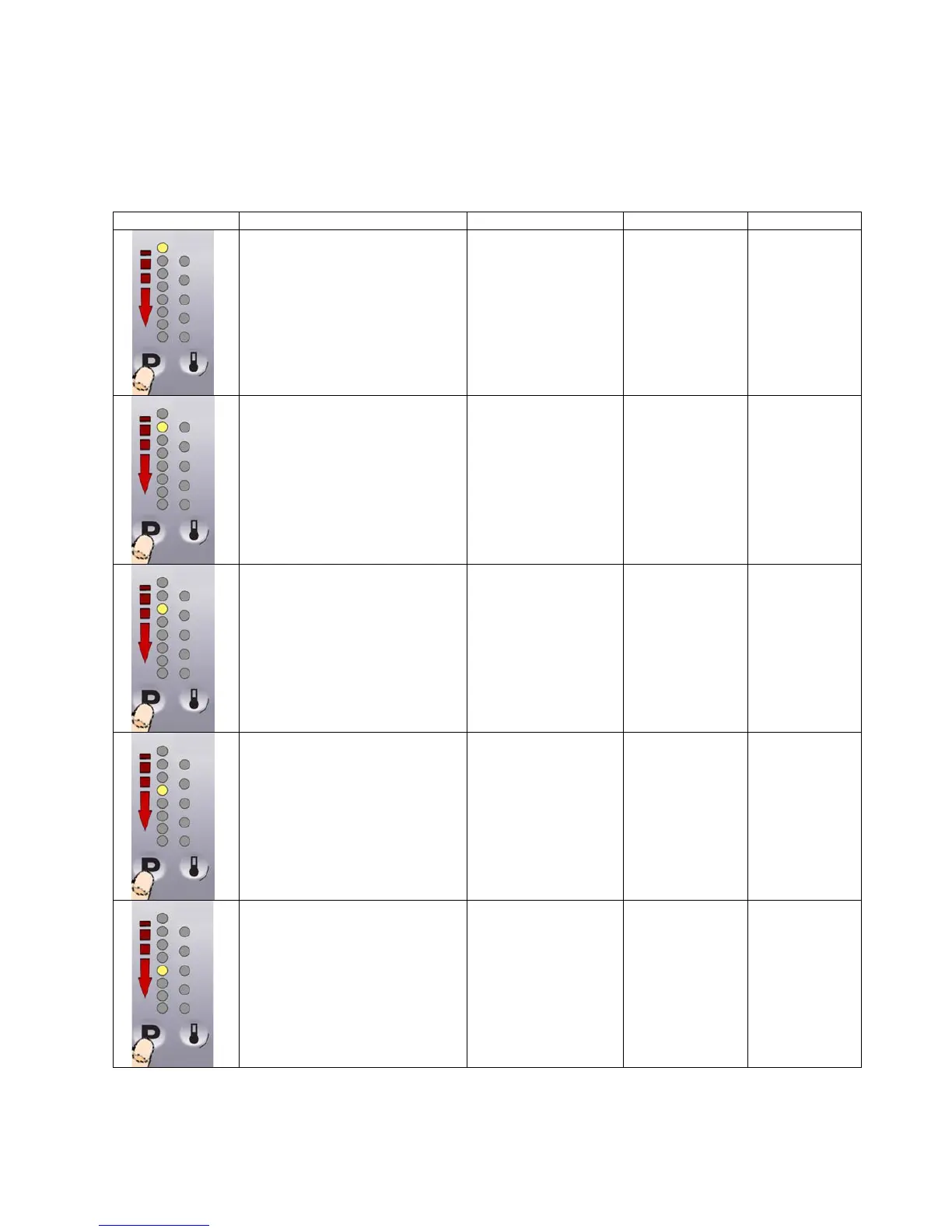

LED lit up Components activated Working conditions Function tested Displa
y
- Door safety interlock
- Wash solenoid valve
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to wash
compartment
Water level in
the tub (mm)
- Door safety interlock
- Pre-wash solenoid valve
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to
pre-wash
compartment
Water level in
the tub (mm)
- Door safety interlock
- Pre-wash and
wash solenoid valves
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to
conditioner
compartment
Water level in
the tub (mm)
- Door safety interlock
- Third solenoid valve
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to Third
solenoid valve
compartment
Water level in
the tub is
displayed (mm)
- Door safety interlock
- Fourth solenoid (hot water,
if present)
Door closed
Water level below
anti-flooding level
Maximum time 5 min.
Water fill to Fourth
solenoid valve
compartment
Water level in
the tub is
displayed (mm)
