Electrolux EWX11831 - Accessibility (Universal Motor); Worktop and Access from Worktop

Technical Support - MDM 65/104 599 77 39-16 Rev. 00

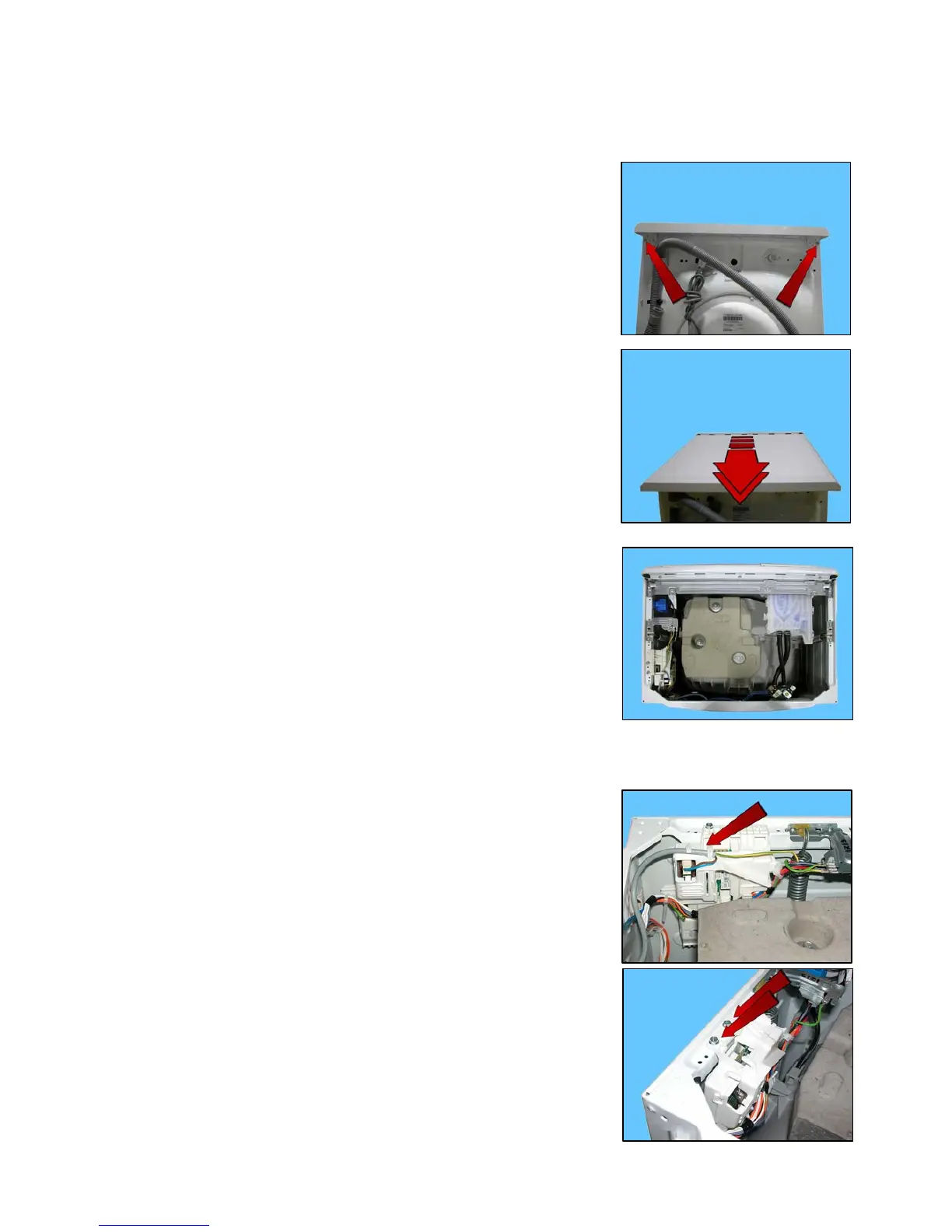

14 ACCESSIBILITY (appliances with universal motor)
Make sure you wear gloves, because parts of the cabinet are sharp.
14.1 Worktop
Remove the screws that secure it to the back panel.
Pull it out from the back.
14.2 From the worktop, you can access
1. Main board
2. Solenoid valve
3. Display board/light diffuser/buttons/buttons springs assembly
4. Control panel
5. Analogue pressure switch
6. Detergent dispenser
7. Upper counterweight
14.2.1 Main board
To service the main board, use the antistatic kit a code 4055063-95/4.
Remove the worktop (see relevant paragraph).
Remove the power cable from the hooks that hold it close to the board.
Slide off the connector.
Unfasten the two screws securing it to the cabinet.
1
2
3
4
5
6
7
