Electrolux EWX11831 - Access from Front Panel Components

Technical Support - MDM 82/104 599 77 39-16 Rev. 00
14.4 From the front panel, you can access
1. The front counterweight
2. Bellow seal
3. The welded tub assembly
4. The tub suspension springs

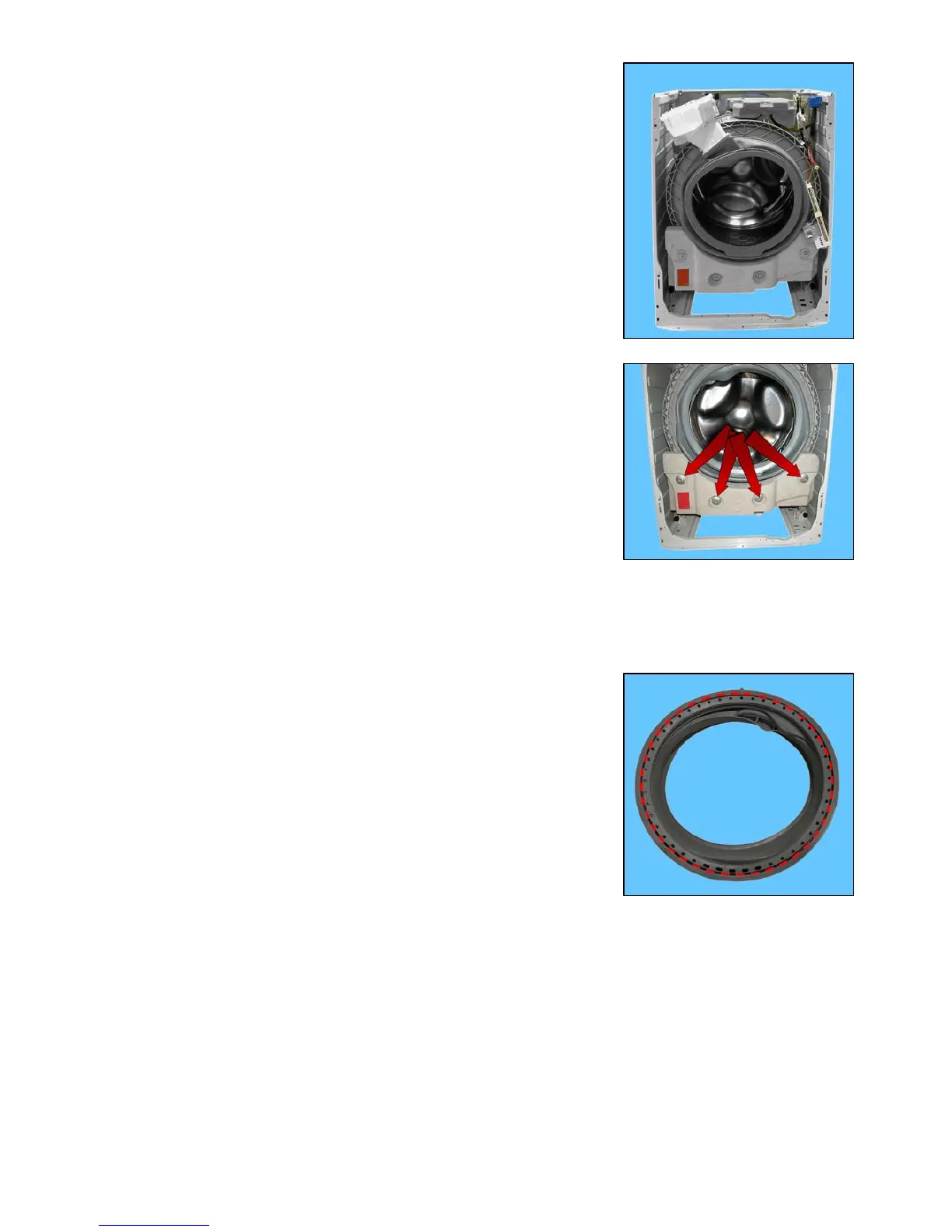

14.4.1 Front counterweight
Remove the worktop (see relevant paragraph).
Remove the iron ring securing the bellow seal to the front panel.
Release the door safety device (see relevant paragraph).
Remove the front panel (see relevant paragraph).
Loosen the four screws securing the front counterweight to the welded
tub assembly.
Bellow seal.
When reassembling:
tighten the screws at a torque of 20 Nm if the tub assembly is new, if it isn’t
new, the tightening torque should be reduced to 15 Nm.
14.4.2 Bellow seal
Remove the worktop (see relevant paragraph).
Remove the iron ring securing the bellow seal to the front panel.
Release the door safety device (see relevant paragraph).
Remove the front panel (see relevant paragraph).
Pull out the detergent dispenser from the bellow seal detergent inlet pocket.
Take the seal out of the welded tub.
(Take care as the seal is held in position by a snap ring.)
When reassembling the seal.
Use liquid soap to lubricate the part where the tub is inserted (indicated
by the red circle).
Make sure the references are aligned.
Reassemble the snap ring between the door bellow seal and the tub.
Reassemble the iron ring between the door bellow seal and the cabinet.
14.4.3 Welded tub assembly
Empty the drain circuit
Remove the worktop (see relevant paragraph).
Remove the front panel (see relevant paragraph).
Remove the detergent tray (see relevant paragraph).
Remove the upper counterweight (see relevant paragraph).
Remove the front counterweight (see relevant paragraph).
Remove the back panel (see relevant paragraph).
To remove the washing unit assembly, disconnect:
All the tub pipes, the wiring connectors that connect the heating element, the NTC probe, remove the belt and the
motor (to lighten the tub).
Lay the appliance on its back (making sure you place a polystyrene or cardboard layer on the floor to prevent
damaging the cabinet).
Take the tub out of the washing machine.
