Electrolux EWX11831 - UIMC and Drainage Pump Access (Inverter)

Technical Support - MDM 100/104 599 77 39-16 Rev. 00

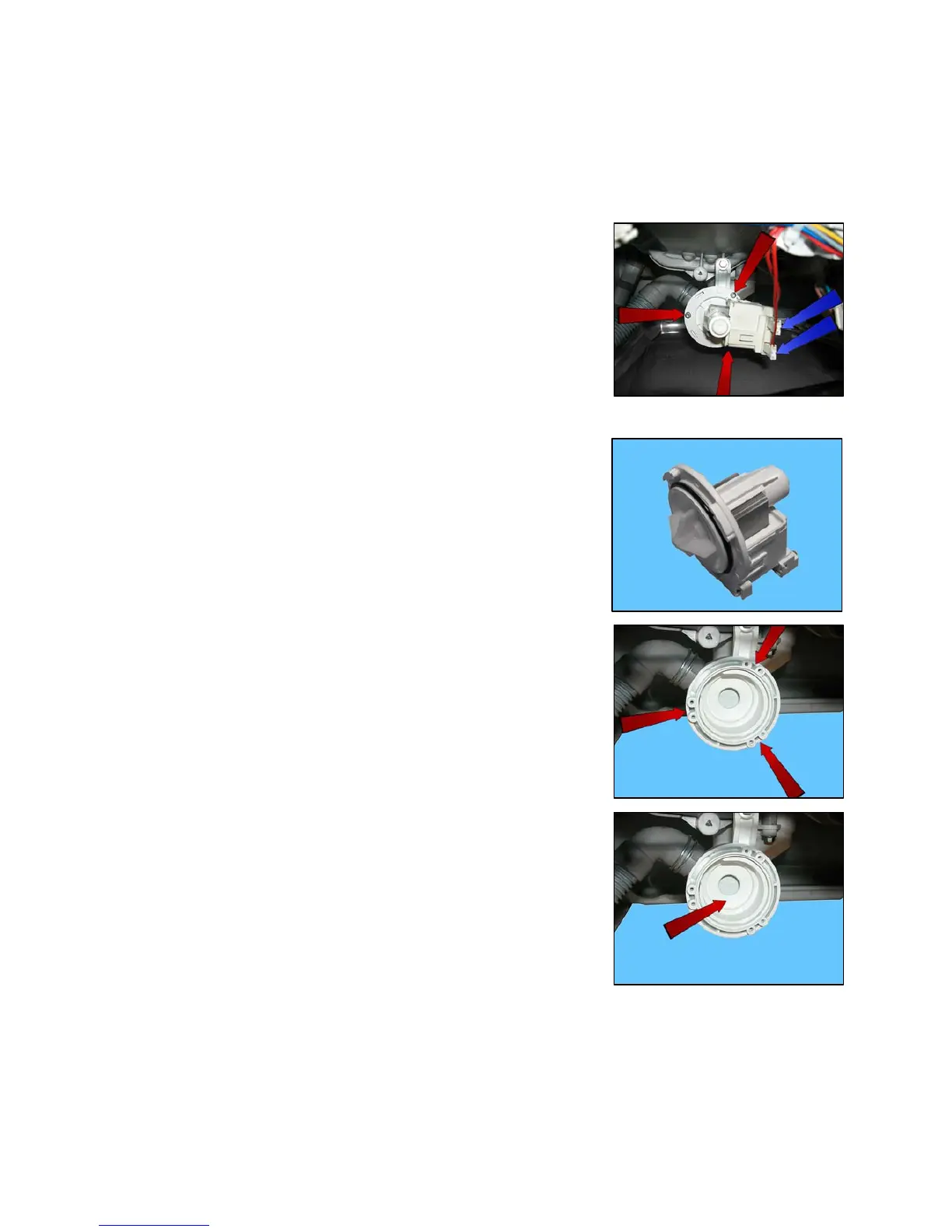

15.6.6 Drainage pump
Empty the drain circuit.
Remove the back panel (see relevant chapter).
Remove the UIMC (see relevant chapter).
Place cloths or a receptacle under the pump.
Remove the connectors (blue arrows).
Remove the three screws securing it to the IDB (red arrows).
When reassembling, repeat the same steps in the reverse order and
tighten the screws at a torque of 1.5 Nm.
Drainage pump.
Once you have removed the pump, you will see that the IDB features six
slots, to secure the pump, if three of the slots are damaged, you can use
the other three.
And the fluff filter is in the centre of the IDB.
When reassembling, repeat the same steps in the reverse order, tightening
the screws at a torque of 1.5 Nm.
