11 ELECTRICAL COMPONENTS
 When replacing any of the components, please refer to the code shown
in the list of spare parts relating to the appliance being repaired.

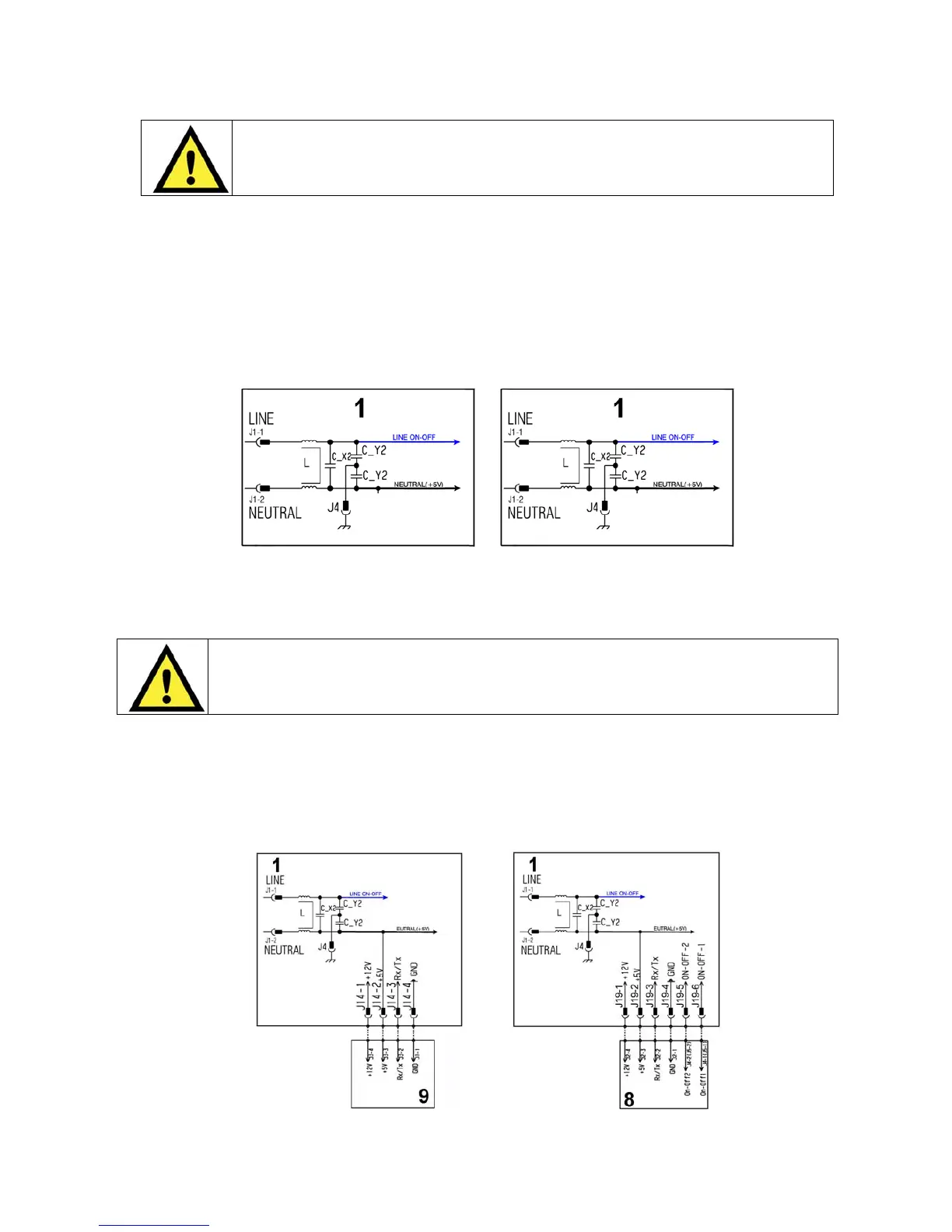

11.1 Noise filter
11.1.1 General characteristics
This device is connected to the electricity power line input of the appliance and avoids the emission
of radio frequency disturbances in the power network. It is incorporated into the main board.
11.2 Display board
 Warning the sensors located in the display boards could be at a potential of
220 Volts.
The main circuit board (1) supplies the power supply voltage to the control/display board.
The programmes can be selected by touching the related touch sensor, which can also be used to:
Select options, start or pause the appliance.
The buzzer - where featured - is powered by the display board.
Diagram with universal Motor Diagram with Inverter
1. Main electronic circuit boar
d
9. Display board
1 Main electronic circuit boar
d
8 Display board
Diagram with universal Motor Diagram with Inverter
1. Main electronic circuit board 1. Main electronic circuit board
