14.2.2 Solenoid valve

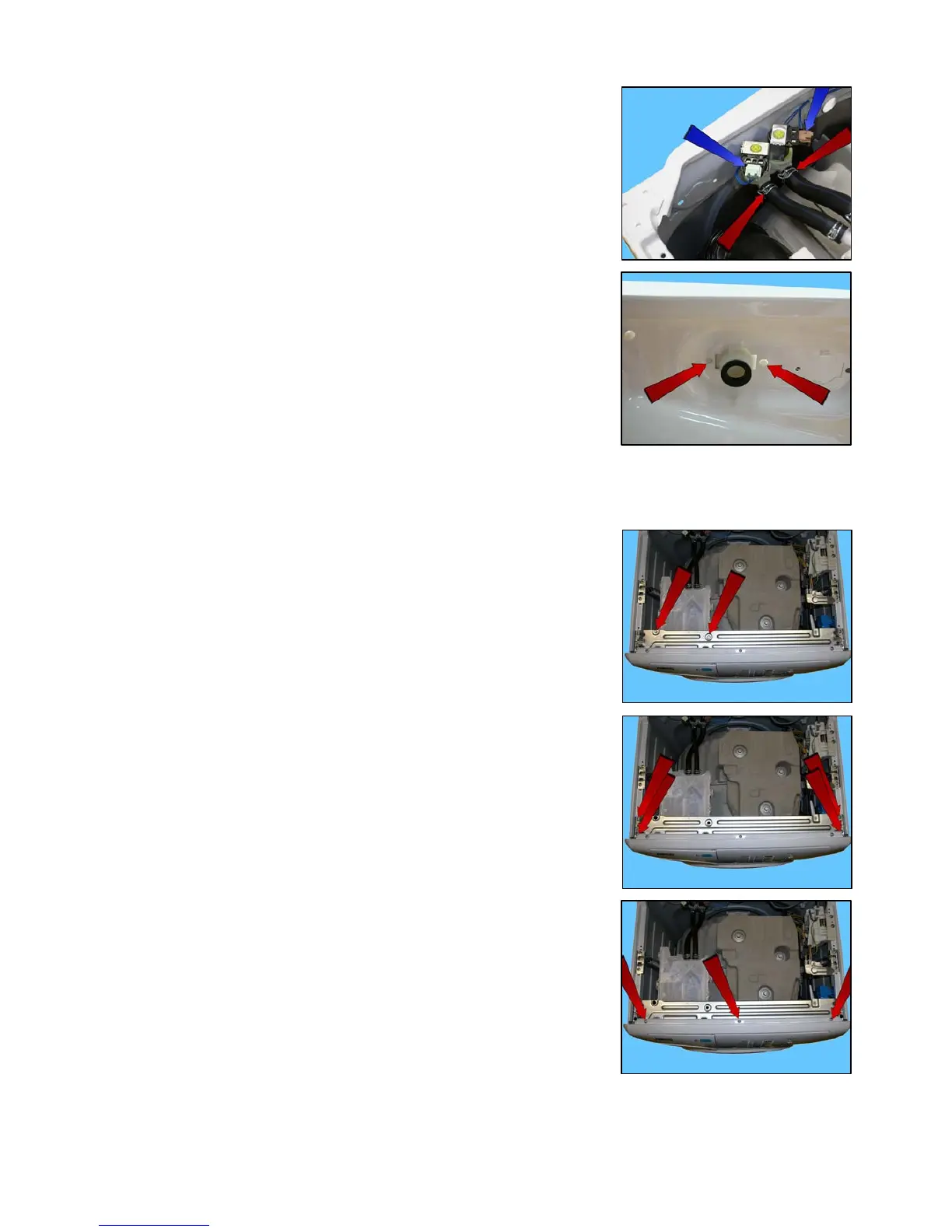

Remove the worktop (see relevant paragraph).
Detach the connectors indicated by the blue arrows.
Pull out the pipes indicated by the red arrows, which connect the
solenoid valve to the detergent dispenser.
Unscrew the water fill pipe from the solenoid valve.
Push the two retainers indicated by the arrows towards the inside
of the appliance.
At the same time, turn the solenoid valve to remove it.
14.2.3 Display board assembly
Remove the worktop (see relevant paragraph).
Remove the two screws securing the detergent drawer to the control crosspiece.
Loosen the screws which secure the control crosspiece to the cabinet.
Loosen the screws which secure the front panel to the control crosspiece.
