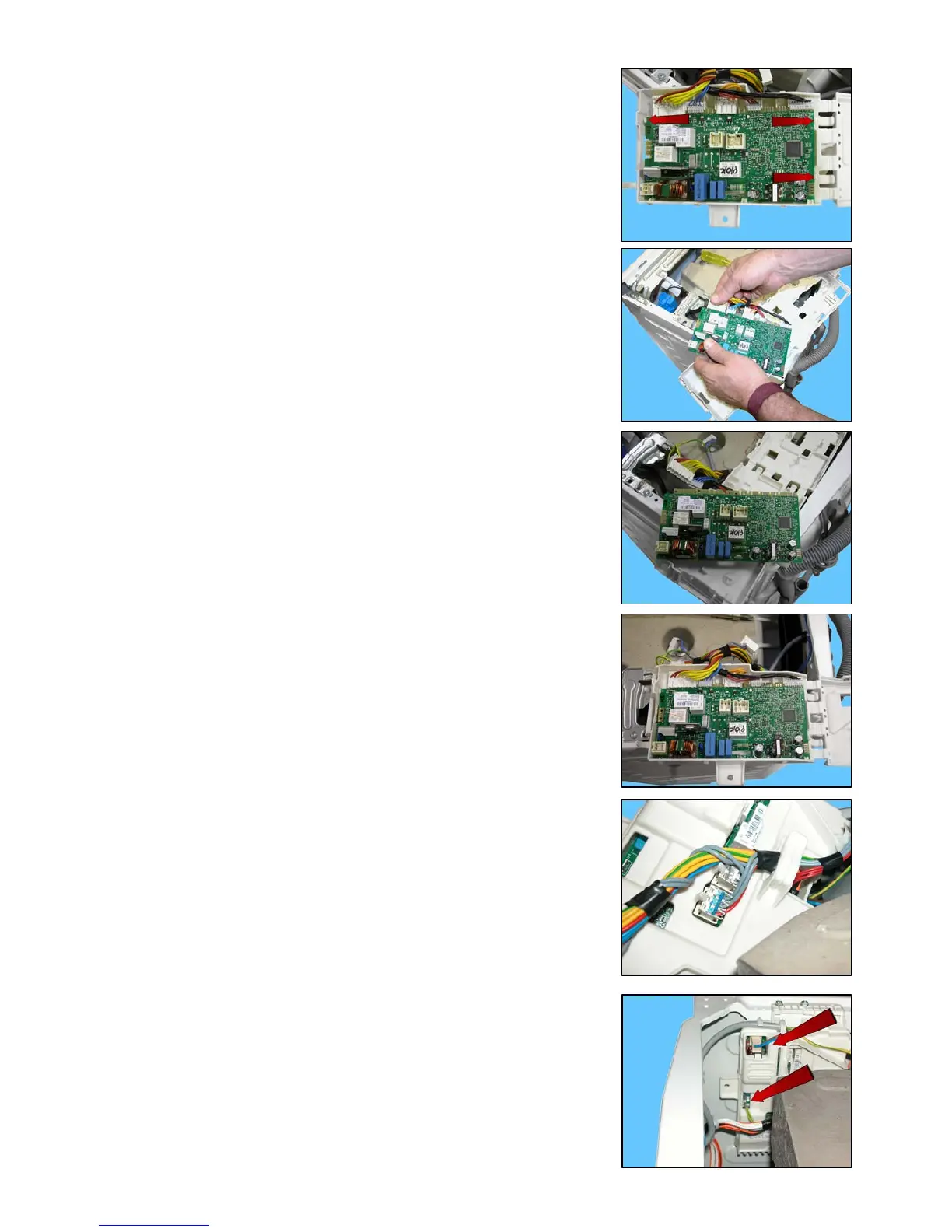

Release the three hooks that secure the board to the container and remove it
(take care not to break the hooks).
Remove the connectors.
Board
When reassembling:
Once you have inserted the connectors, make sure the wiring is inside the box.
So that when the lid is closed, the wiring is not crushed or cut by the two plastic
parts.
Fit the connectors into their proper slots and arrange the wiring as shown in
the figure.
Before securing the side clamp:
Restore the earth connection, fit the power supply connector
and insert it between the two hooks.
