14.2.6 Detergent dispenser

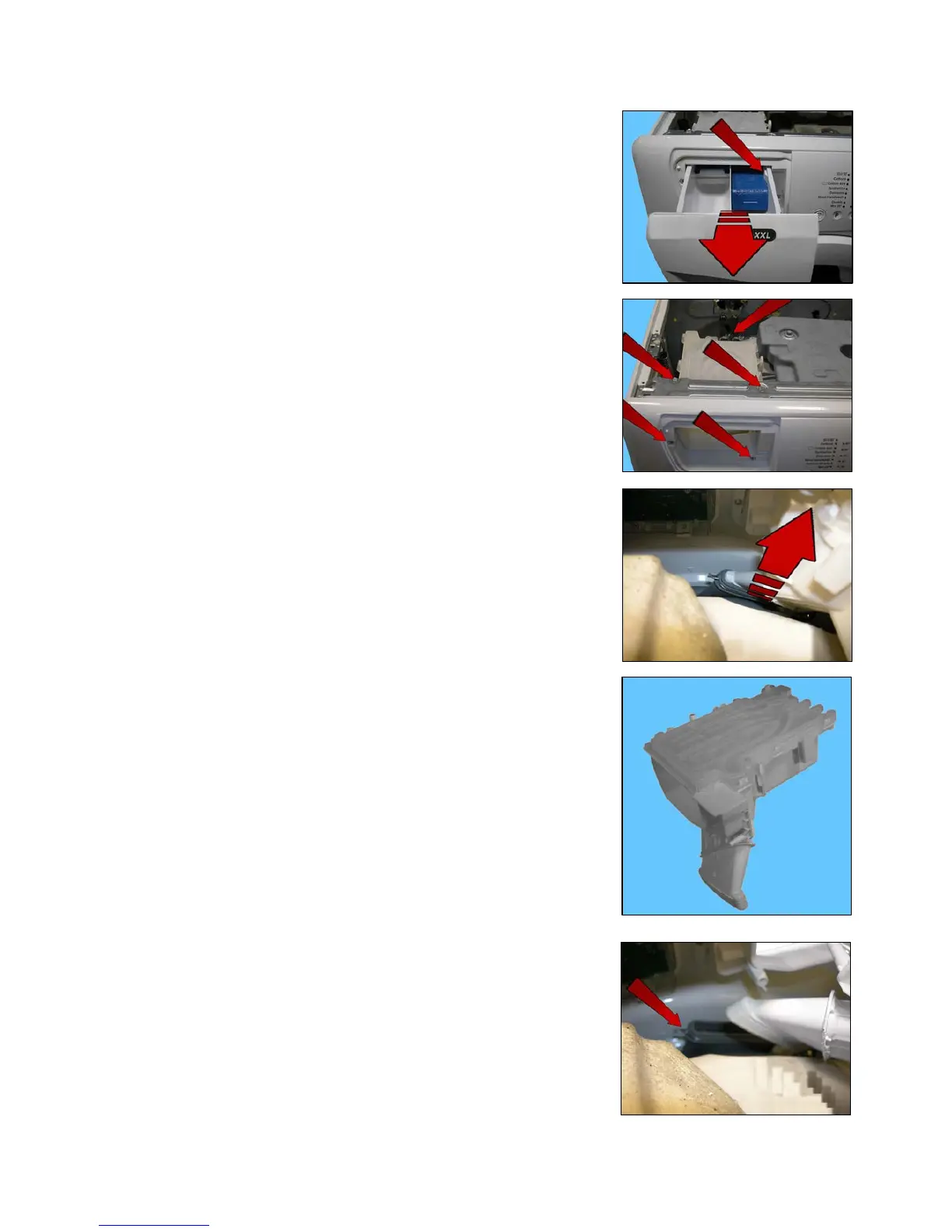

Remove the worktop (see relevant paragraph).
Take out the detergent dispenser while at the same time pressing on its sides
to pull it out (otherwise pull sharply).
Unfasten the two screws securing it to the control panel (1).
Unfasten the two screws securing it to the crosspiece (2).
Remove the pipes that connect it to the solenoid valve (3).
When reassembling, repeat the same steps in the reverse order and tighten
the screws that secure it to the control panel at a torque of 2.5 Nm.
Pull out the detergent dispenser from the bellows seal detergent inlet pocket.
Detergent dispenser.
When reassembling:
If the clamp was removed, reposition it in its seat (shown by the arrow)
in the bellow seal detergent inlet pocket.
1
1
2
2
3
