14.7.5 Main drain pipe

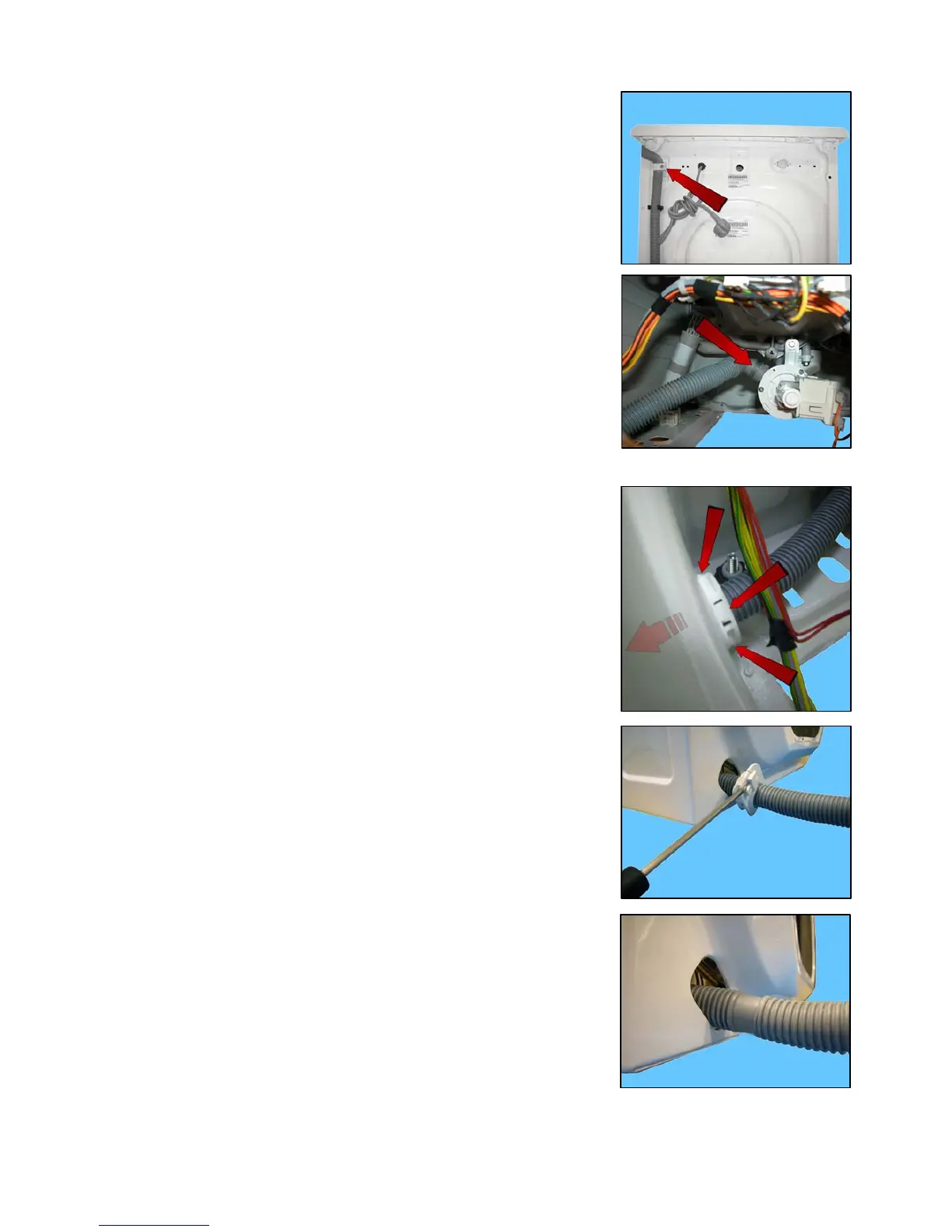

Loosen the screw which fastens the pipe fastener at the top of the appliance.
Straighten out the pipe to drain the water into a container.
Remove the back panel (see relevant chapter).
Open/warp the clamp (shown by the arrow) which secures the drain pipe
to the IDB.
If the clamp breaks, replace it with one featuring the same characteristics.
Remove the pipe fastener that secures it to the cabinet by pressing the three
hooks (indicated by the arrows) and pull it out at the same time.
Insert a screwdriver to open up the cabinet pipe fastener.
When refitting the pipe, make sure that the non-corrugated part.
