10.6 Water circuit
10.6.1 OKO/IDB version drain circuit

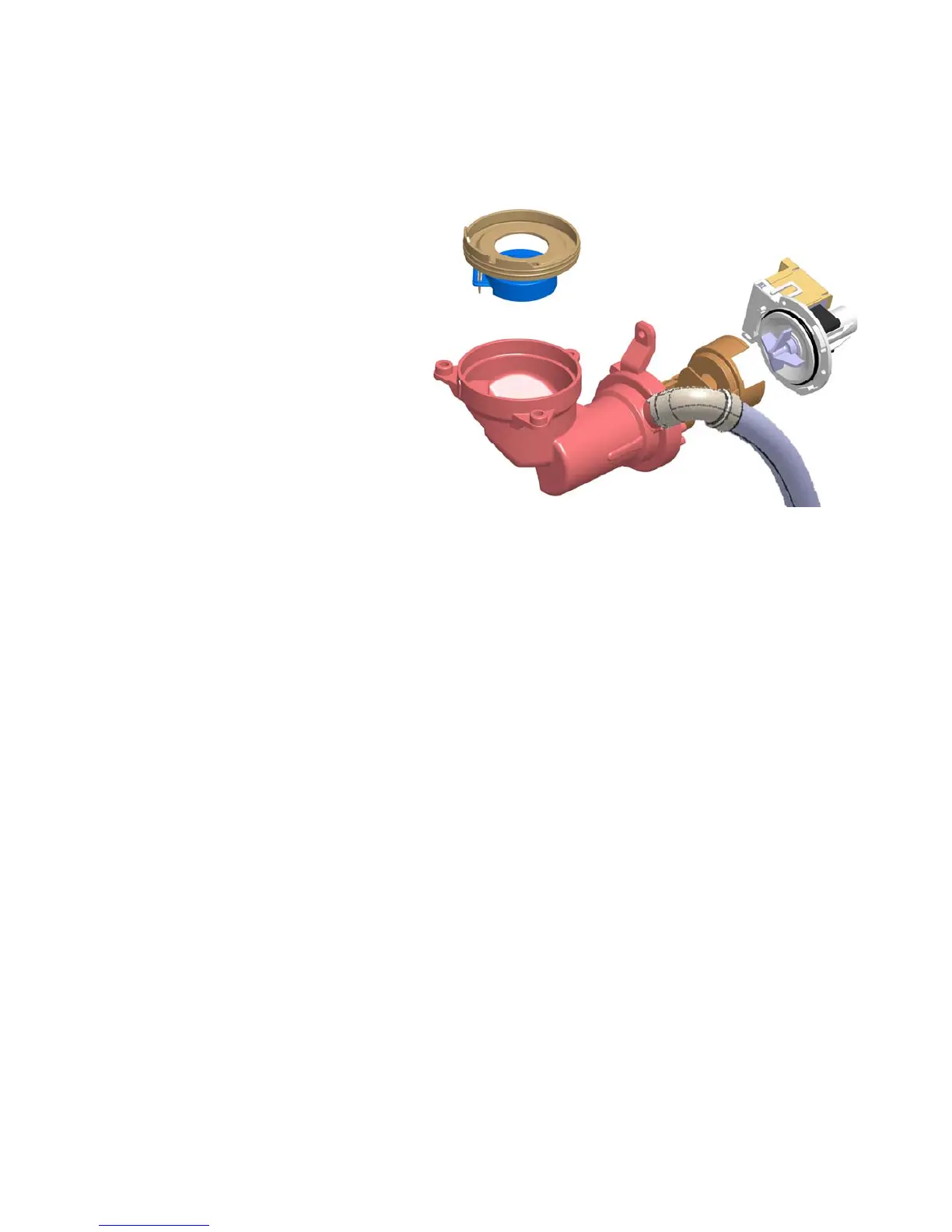

1. Diaphragm ring
2. Floating valve
3. IDB (Integrated Drain Body)
4. Filter or needle trap
5. Drain pipe
6. Drainage pump
For further details, see page 87
