Turn it until you reach the position shown in the figure.
Remove it.

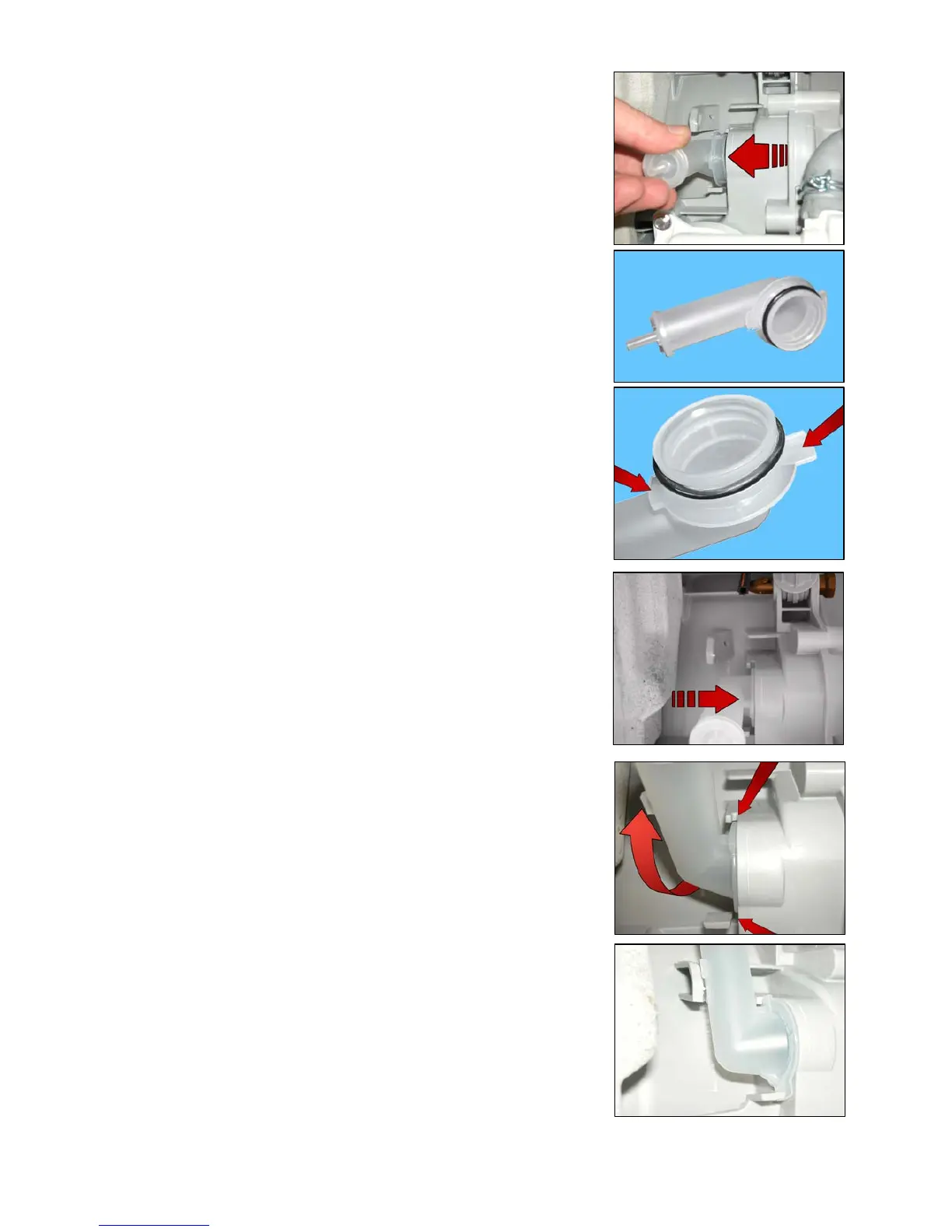

Pressure chamber.
Detail of the pressure chamber set into the welded tub.
When reassembling:
Make sure that the seal is not damaged/warped, otherwise replace it.
Insert the pressure chamber in its seat in the welded tub.
Turn it and make sure that the two tabs slot into the purpose-provided
runners (shown by the arrows).
As shown in this picture.
