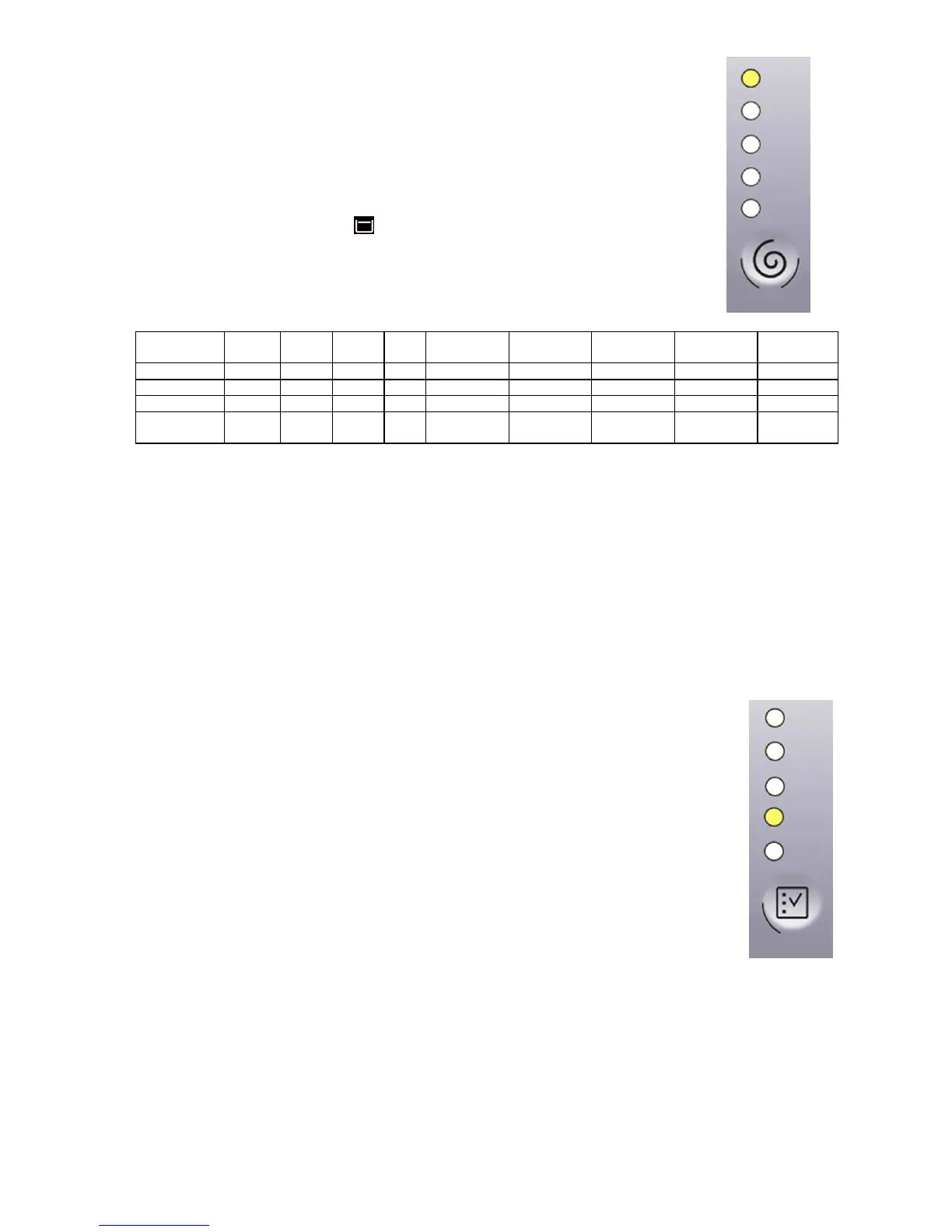

Sensor no. 3: SPIN SPEED (configurable)
The function of the third sensor is dedicated to the spin speed selection, combined with
the five LEDs (L14÷L18) above; the related speed is silk-screen printed beside them on
the control panel.
The initial spin speed is that set for the chosen programme.
Touch the sensor to reduce the spin speed, indicated by the LED near the silk-screen
printed value on the control panel lighting up at the same time to confirm your selection.
Once the lowest speed has been reached, you can, if you wish, select “Rinse hold” and
the related LED beside the symbol silk-screen printed on the control panel lights up.
The next selection will be the highest speed available for the selected programme.
For a quicker selection, hold your finger down on the sensor for longer.
The speeds that can be combined with the five LEDs are shown in the following table.
Max spin
speed (rpm)
800 1,000 1,000 1,200 1,200÷1,400 1,200÷1,400 1,400-1,600 1,400-1,600 1,400-1,600
Intermediate 600 800 800 800 1,000 1,000 1,200 1,200 1,200
Intermediate 400 400 600 400 800 800 800 800 1,000
Intermediate 0 0 400 0 0 400 0 400 800
Min. speed
Rinse
hold
Rinse
hold
0
Rinse
hold
Rinse
hold
0
Rinse
hold
0 0
The recommended intermediate spin speeds are:
800 rpm for the following programmes: Lingerie, Duvet, Shirts, Sport, 14 min., Silk, etc…
1,000 rpm for the Easy-Iron option
1,200 rpm for synthetic fabrics, delicates, wool
If you select the “Rinse hold” option when the cycle ends, the related LED flashes to remind the end user to
drain the water before opening the appliance door.
With the “Easy-Iron” option, the spin speed is reduced to 1000 rpm even if the spin speed selected is higher;
if the option is deselected, the speed automatically returns to the chosen value.
Sensor no. 4: OPTIONS (configurable)
The function of the fourth sensor is dedicated to the choice of option to combine with the
programme, combined with five LEDs (L19÷L23) above, beside which the name of the
related option is silk-screen printed on the control panel.
Touch the sensor when no option has been enabled (all the LEDs are switched off) to light
up the first LED relating to the most important option in the list.
Continue your selection to light up the subsequent LED (from the top down) and the previous
one is switched off, all the way to the last option at the bottom. The next time you press the
sensor all the LEDs will remain switched off.
You can only select one option per programme, as no combinations are possible.
For a quicker selection, hold your finger down on the sensor for longer.
The following options can be combined with the first three LEDs (at the top):
Super Quick
Easy Iron
Intensive
Pre-wash
Daily
Half-load
Soak
The two LEDs (at the bottom) are combined with:
Rinse Only – performs the last rinse cycle for the selected programme. If “Extra Rinse” is set, two or more rinse
cycles are added (depending on the configuration).
Spin/Drain – performs the spin cycle for the selected programme, if the selected option is “No Spin” it only
drains off the water.
S3
L14
L18
S4
L19
L23
