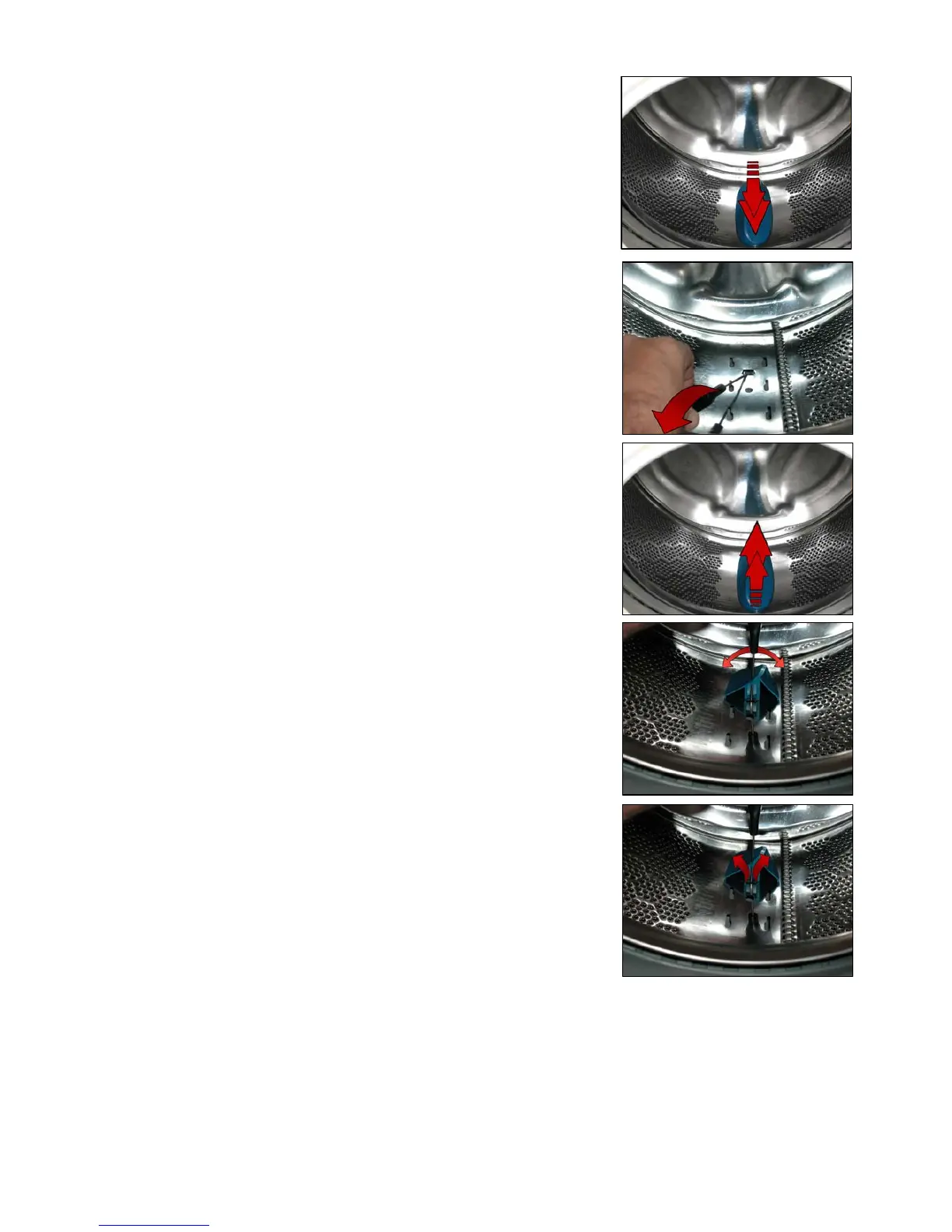

When the two tabs are down.
Push the blade towards the front of the drum.
Reassembling the blade onto the drum.
Before securing the new blade.
Insert a flat-tip screwdriver beneath the lock tabs and raise them a little.
Position the new blade inside the drum guides.
Push it towards the back.
Insert the screwdriver (in the fourth slot) at a right angle to the blade,
so as to position it at the centre of the two lock tabs.
Move to the left and right
to move the tabs up (as shown by the arrows) and insert them inside the
blade, securing it to the drum (as shown in the figure).
