EMC-PARTNER TRA3000 S - 3.2 Impulse-forming Networks

TRANSIENT3000
38/162

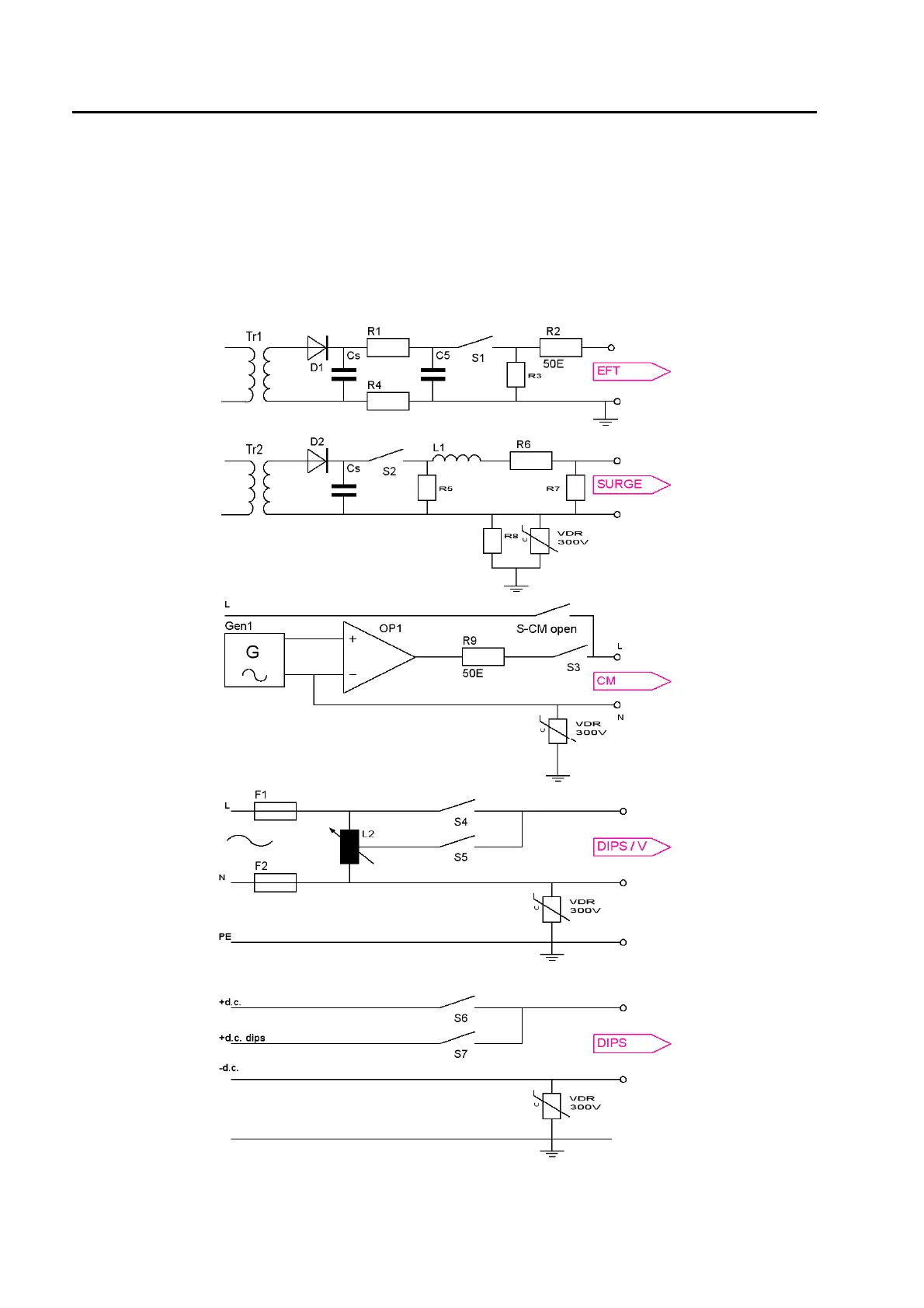

3.2 Impulse-forming Networks
Behind the operation panel, the high voltage source, the polarity change-over switch, the impulse
capacitors, the semiconductor switch and the impulse forming networks are located.
The impulse capacitor Cs is charged by the high voltage source. The discharge of the high voltage
capacitor is done via the semiconductor switches. The impulses are formed by the different impulse forming
networks.
