EMC-PARTNER TRA3000 S - TRA3000 Not Equipped with EXT-TRA3000 D; TRA3000 Equipped with EXT-TRA3000 D; DIP DC (Interrupt) Without PS3 Power Supply Source of EMC PARTNER

TRANSIENT3000
55/162

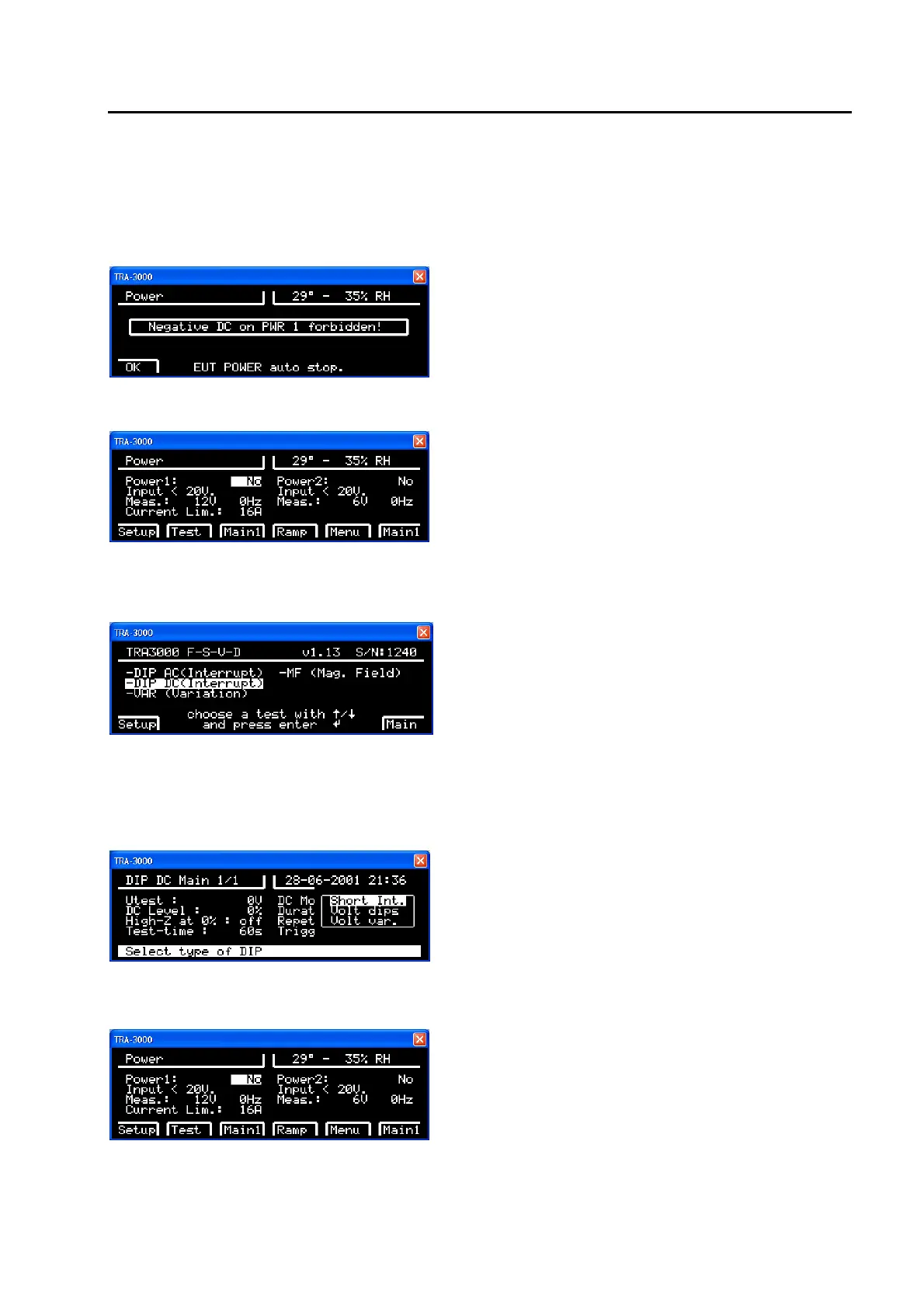

5.4.1 TRA3000 not equipped with EXT-TRA3000 D:
No DIP DC (Interrupt) will be visible in the display. The d.c. supply of the EUT can be turned ON/OFF with
the PWR button on the front of the TRA3000. PWR2 is out off order for d.c. supply.
When on + input a negative voltage of the d.c. supply is connected an error message will occur as shown
below.
Without any guarantee from EMCP of correct operation the lower voltage limit of 20V can be extended by
selcting “No” on Power 1 see display below.
5.4.2 TRA3000 equipped with EXT-TRA3000 D
The display indicates the different possibilities of DIPS and Interruptions
5.4.3 DIP DC (Interrupt) without PS3 power supply source of EMC PARTNER
On his own risk the customer can use his own power supply.
In DC Mode only short Int. can be selected. (Volt dips and Volt var. are only selectable when a power
supply PS3 is connected to TRA3000)
Renmark: High-Z at 0% must be selected off
For voltages lower < 20V No in Power 1 and Power2 must be activated. For power >20V Mains must be
selcted.
