EMC-PARTNER TRA3000 S - EUT Power Supply with Variac

TRANSIENT3000
53/162
Solutions:
1. For testing with TRA3000 F-S-D-V-C use a power supply without a fault current protective switch.
2. Connect an insulation transformer between power supply and TRA3000 F-S-D-V-C. One
secondary output terminal of the transformer must be grounded.
As a results of the leakage current always connect two earth leads to the TRA3000 F-S-D-V-C.
5.3.5 EUT Power, supply of the EUT with voltages differ from the public power line (Variac)
Internal Variac

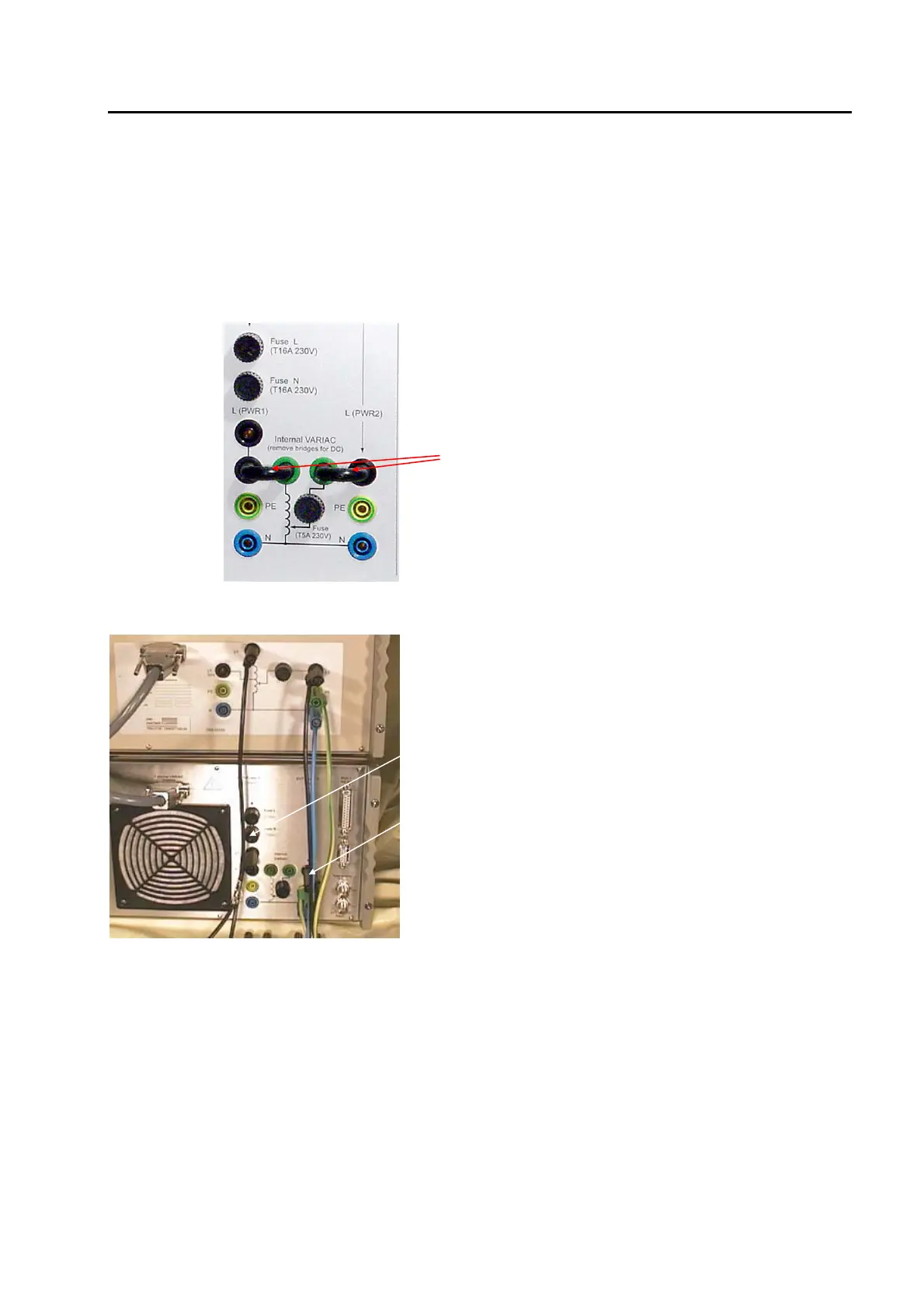

Both bridges must be placed as shown in the
picture . EUT Power 1 must be connected to
the 230 V public power supply.
Figure 5.3.5.1
Connection external Variac:
The external Variac replaces the internal
Variac.
Remove the two bridges.
EUT Power 1 (L1) of the TRA3000 F-S-D-V-C
must be connected with L1 of the external
Variac.
EUT Power 2 L, N, PE must be connected as
shown on the picture.
In addition connect the control cable between
„External Variac Control“
Figure 5.3.5.2
Accessories delivered with the external Variac
• See VAREXT1000 user manual
bridges
EUT
Power 2
EUT
Power 1
