EMC-PARTNER TRA3000 S - TRA3000 F-S-D-V-C Test System Overview

TRANSIENT3000
13/162
1.2 Overview of the TRA3000 F-S-D-V-C test system
1.2.1 TRA3000 F-S-D-V-C and its versions
The tester TRA3000 F-S-D-V-C simulates transients of different interference sources. Such as: indirect
lightning in electronic systems, human body electrostatic discharges, switched inductance (Burst), power
supply interruptions and variations and common mode disturbance.
The test system TRA3000 F-S-D-V-C with accessories fulfils all requirements of the IEC basic standards
IEC 61000-4-2 Ed.2 (ESD); 61000-4-4 Ed.2 (EFT); 61000-4-5 Ed.2 (SURGE) without 10/700 µs impulse;
61000-4-11 Ed.2 (Interruption and Variations), and with accessories 61000-4-8 Ed.2 (Magnetic field
50/60Hz) and 61000-4-9 Ed.1 (Magnetic field SURGE), Common mode disturbance IEC 61000-4-16 Ed.1
Amd.2, 61000-4-29 Ed.1 dips and interruption on d.c. and IEC 61000-4-34, DIPS and Interruption >16A
per phase.
If not all transient test are needed, the TRA3000 F-S-D-V-C tester is also available in various versions, with
the possibility to upgrade the tester later to a full TRA3000 F-S-D-V-C test system.
The upgrade can be made by a customer. Mounting instruction (IS) will be delivered with
the relevant module.

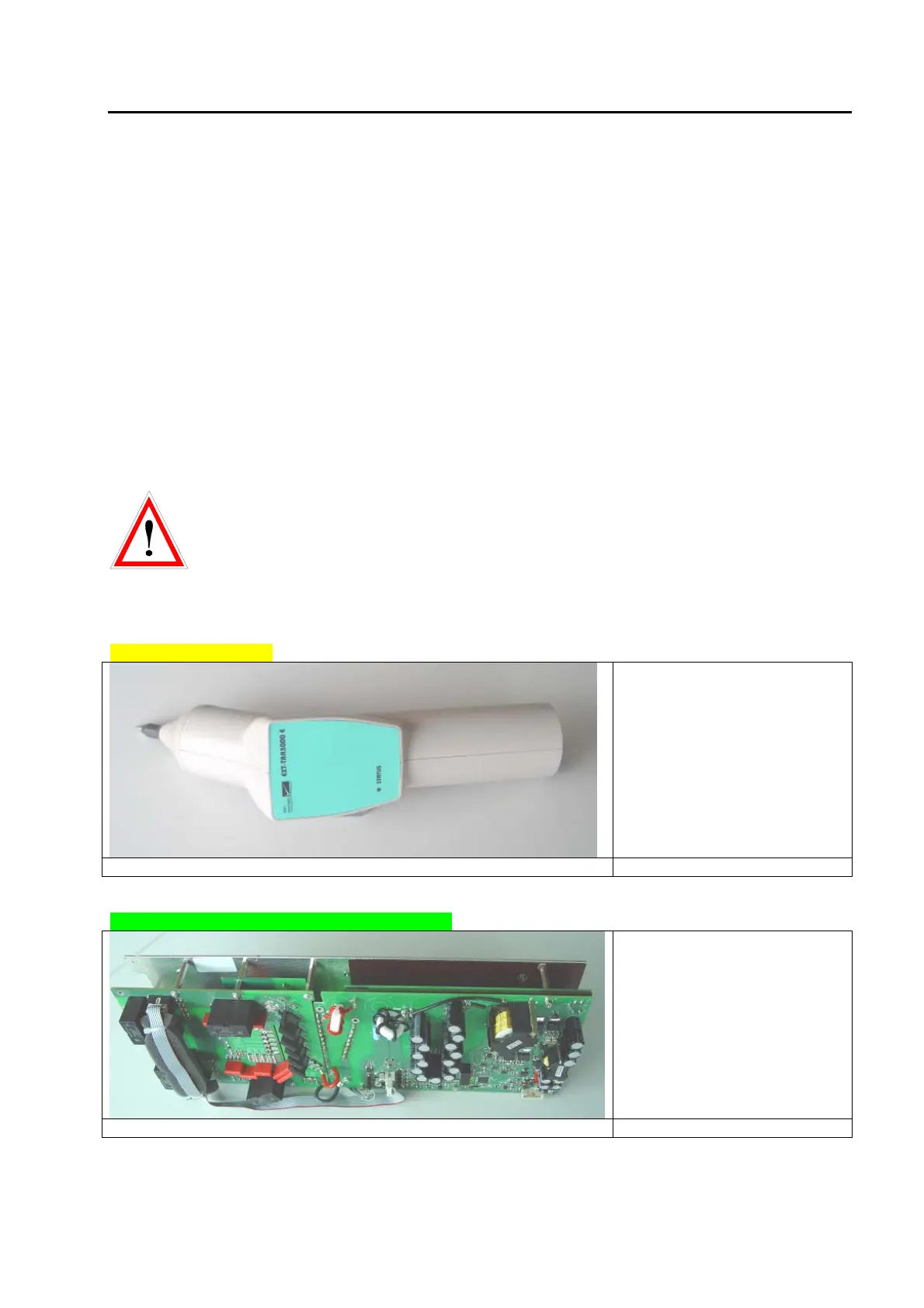

The following EXT-TRA units are available:
EXT-TRA3000 E (ESD)
Installing instruction of EXT-
TRA3000 E can be found in the
Instruction Sheet (IS), delivered
with the EXT-TRA3000 E.
EXT-TRA3000 F (Electrical Fast Transient, Burst)
Installing instruction of EXT-
TRA3000 F can be found in the
Instruction Sheet (IS), delivered
with the EXT-TRA3000 F.
