TRANSIENT3000
61/162

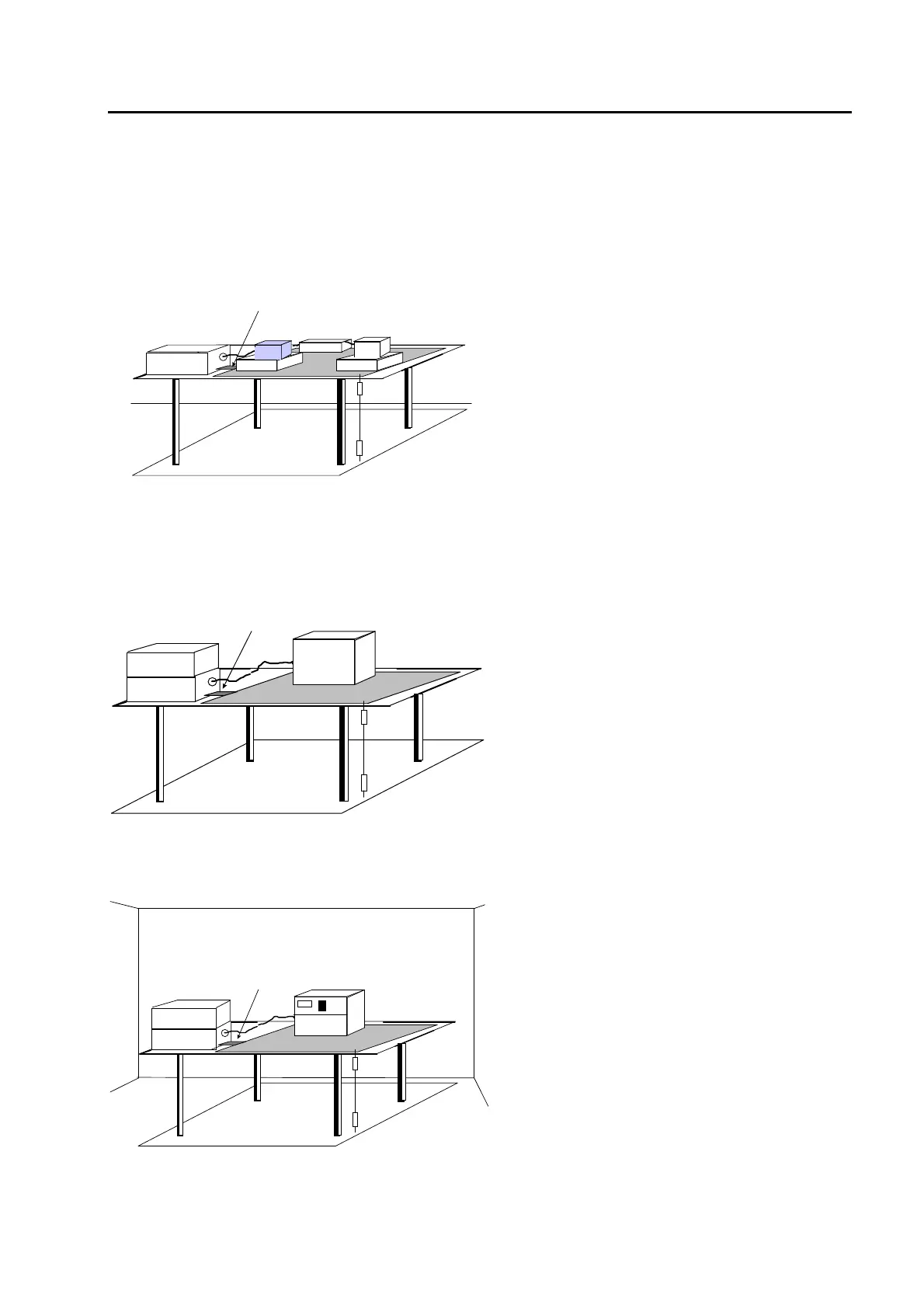

5.5.4 Test set-up for table top equipment
Test set up Test sequence
-
1
GRP
RP / HCP
GRP = Ground reference
lane ESD
RP = Reference
lane EFT
HCP = Horizontal cou
lin
lane ESD
CNEFT = Cou
lin
clam
for EFT
I. EFT
1. Connect the earth bar of the TRA3000 F-S-D-V-
C with the flat multiwire cable (1) to the
reference ground plate
2. Put 10 cm insulation between EUT and the
reference ground plate
3. Carry out the tests!
II. ESD
1. Remove the flat multiwire cable (1) between the
earth bar of the TRA3000 F-S-D-V-C and the
reference ground plate
2. Put 0,5 mm insulation between EUT and the
reference ground plate
3. Carry out the tests!
III. SURGE, DIPS, VARIATION
1. Reinstall the flat multiwire cable 1
2. Carry out the tests!
CDN-1000
1
GRP
RP / HCP
GRP = Ground reference
lane ESD
RP = Reference
lane EFT HCP = Horizontal cou
lin
e
lane ESD
TRANSIENT2000
2x470k
EUT
I. EFT
1. As for single phase EUT
2. As for single phase EUT
3. Connect the Impulse out of the TRANSIENT
with EFT coupling on the threephase
Coupling/De-coupling network CDN-2000-06-32
4. Carry out the tests!
II. ESD
1. As for single phase EUT
2. As for single phase EUT
3. Carry out the tests!
III. SURGE,
1. Make connection 1
2. Connect the surged phase for synchronisation
with EUT Power 1
3. Carry out the tests!
IV. DIPS Interruption
1. Loop the phase for dips and interruption
through the TRA3000 F-S-D-V-C (EUT Power
1)
2. Carry out the tests!
-
1
GRP
RP / HCP
GRP = Ground reference
alne ESD
RP = Reference
lane EFT HCP = Horizontal cou
lin
lane ESD
-
EUT
I. TRA3000 F-S-D-V-C Tests:
1. Carry out the tests as explained for single and
three phase EUT
II. HARMONICS-1000-Measurements
1. Harmonics in accordance with IEC 61000-3-2
2. Flicker in accordance with IEC 61000-3-3
3. Immunity Harmonics IEC 61000-4-13
For brochures and further information about
HARMONICS-1000 contact EMC PARTNER AG or
your nearest representative.
Single Phase EUT
Three Phase EUT
Combination: Immunity and Emission
