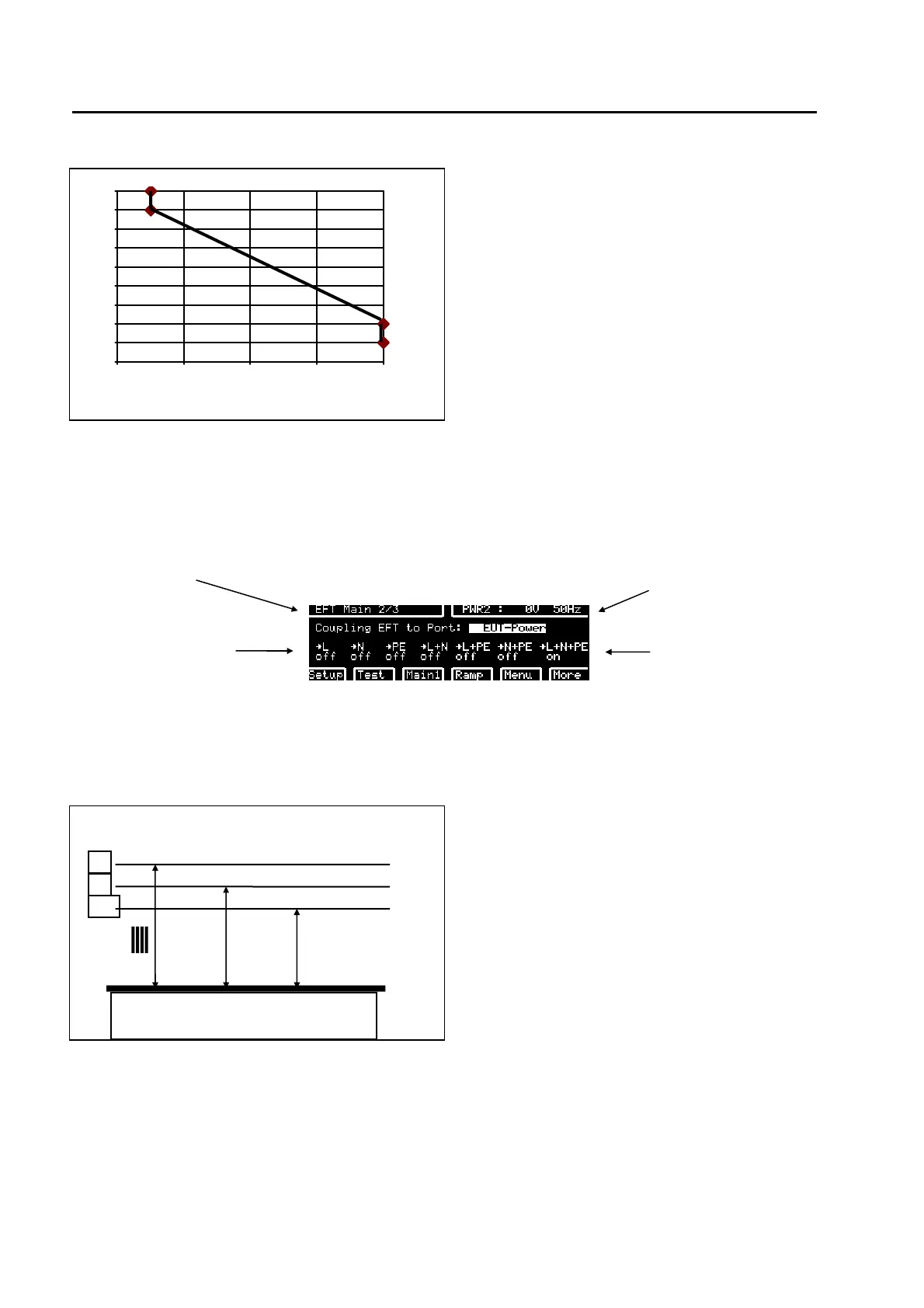

The following Spike Rate Limits are valid for the TRA3000 F-S-D-V-C:
0
500
1000
1500
2000
2500
3000
3500
4000
4500
0 2000 4000 6000 8000
6.2.2.1.2 Spike Rate = number of spikes/ seconds
Selection of coupling path
When pressing "More" the display below will be shown
loaded test EUT power v, f
coupling paths
coupling paths
The coupling paths can be selected as follows:
1. Set the cursor to the coupling path to editing
2. Select ON or OFF
3. Confirm that the values entered are correct by pressing the ENTER - button.
6.2.2.1.3 Definition coupling path
When several coupling paths are activated „ON“, they will be chosen step by step. The sequence
corresponds with the sequence listed in the „Main“ menu. When Impulse -Out = On, the burst impulses stay
at the high voltage. The capacitive coupling clamp can be connected on the high voltage EFT output
(superimposing EFT on data line).
Nominal Voltage
Spike Rate max.(Spikes/ s)
Reference ground, (metallic plate)
GND
L
N
PE
L-GND N- GND PE-GND
