6.2.2.3 Editing ESD test set-up

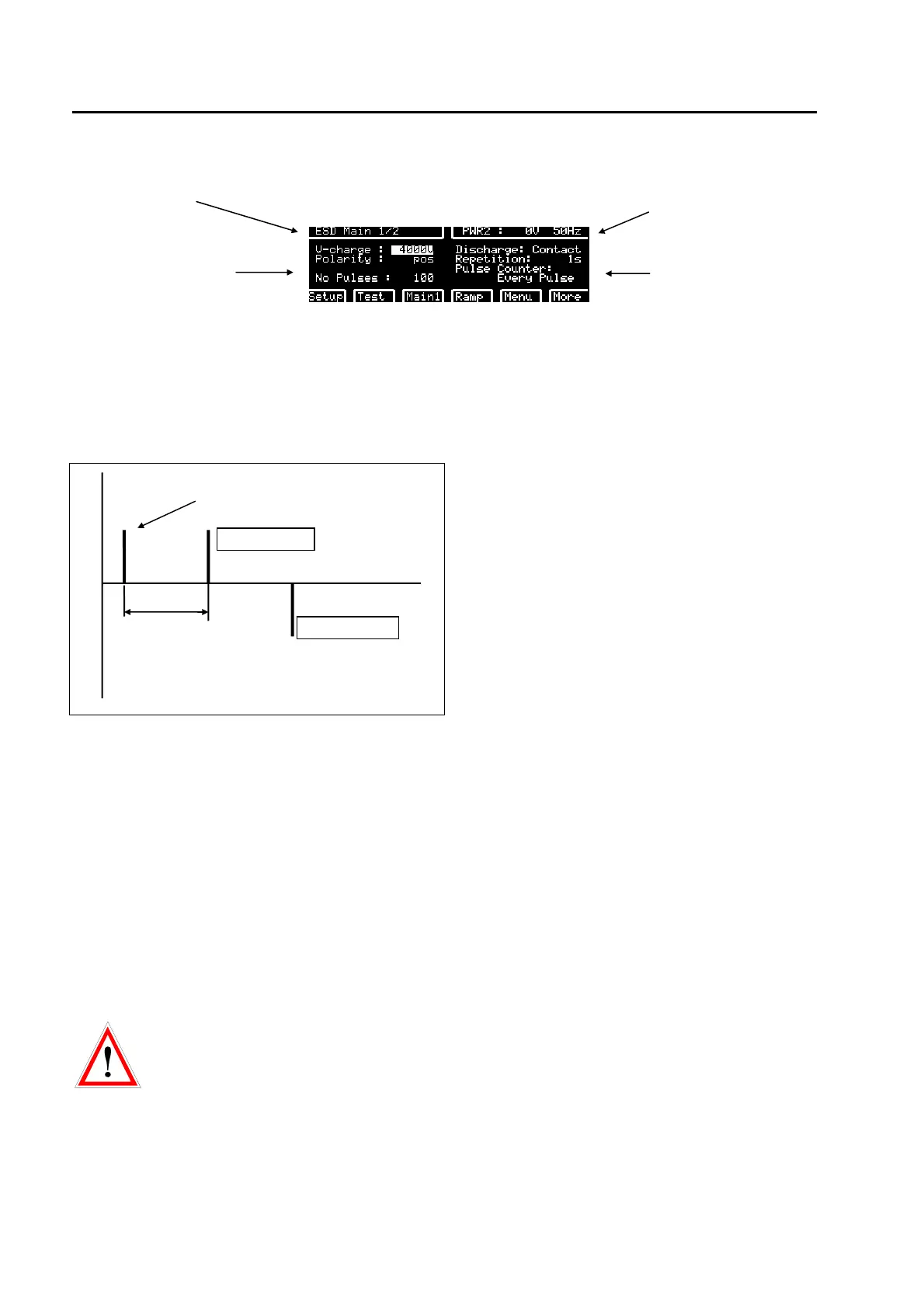

Editing ESD test set-up
loaded test EUT power v, i
test parameters
tests parameters
When the EDIT button has been pressed the dialogue line indicates the possible range like v, time, etc.
The values can be varied as follows within the given ranges:
1. Set the cursor to the parameter to editing
2. Edit the values as required using the numerical keys
3. Confirm that the values entered are correct by pressing the ENTER - button.
6.2.2.2.1 Definition of ESD parameters
Contact Discharge = Discharge via the „ESD Relay“ tip. The relay tip must be on top of the ESD discharge
network. The relay tip must contact the EUT.
Air Discharge = Discharge via the adapter „finger“. The discharge occurs as a spark between the finger
and the EUT.
Pulse Counter = On discharge only
Only the impulses whereas the voltage of the discharge capacitor (150 pF) droplower than 10 % of the
charging voltage are counted.
Which discharge method must be used? See Chapter 5.4.2.
ATTENTION
When using EXT-TRA3000 E, ensure a ground cable is always
connected
t
polarity pos.
polarity neg.
repetition 1/T
T
discharge
