400 Hz). If the angle of DIP Begin and DIP End are different, the DIP duration will be adapted e.g. for End >
Begin longer or for Begin > End shorter.
Interruption to 0% with and without EUT discharge
When the soft key F6 has been pressed:

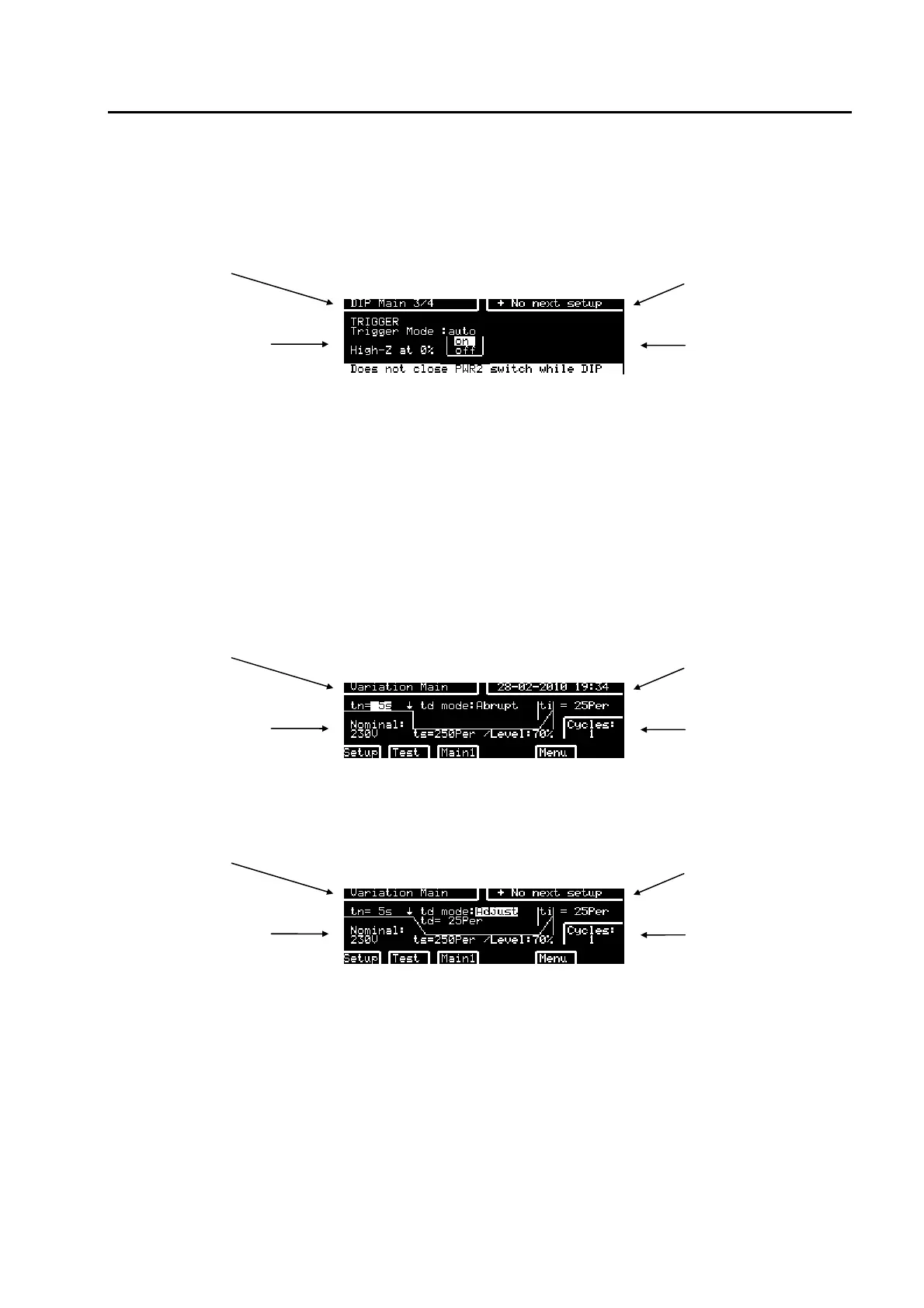

loaded test EUT power v, i
test parameters
tests parameters
At an interruption to 0 %, two modes can be differentiated:
A) High Z at 0% = ON
In this mode, the voltage across the EUT decreases with the time constant of the EUT during an
interruption.
B) High Z at 0% = OFF
Some µs after the DIP begin, the EUT input will be discharged via the EUT Power 2 circuit.
For more information see Chapter 3.4
6.2.2.9 Editing the test set-up "Variation" Ed.2
loaded test EUT power v, i
test parameters
tests parameters
Set the parameter by activation with the white cursor in the display
6.2.2.10 Editing the test set-up "Variation" Ed.1
loaded test EUT power v, i
test parameters
tests parameters
