User Manual Chapter 10
GFK-1742F Jan 2020
Introduction to Local Logic Programming 255
The Local Logic editor is a free-form text editor that allows you to enter programs in the style
that you prefer. This example is a very simple Local Logic program that does not represent a
fully functional application because it is intended for instructional purposes only. The
example program is a simple timer application that relies on the digital servos position loop
sample period (2 mSec) as a time base. See Chapter 1 for position loop sample periods for
other configurations.

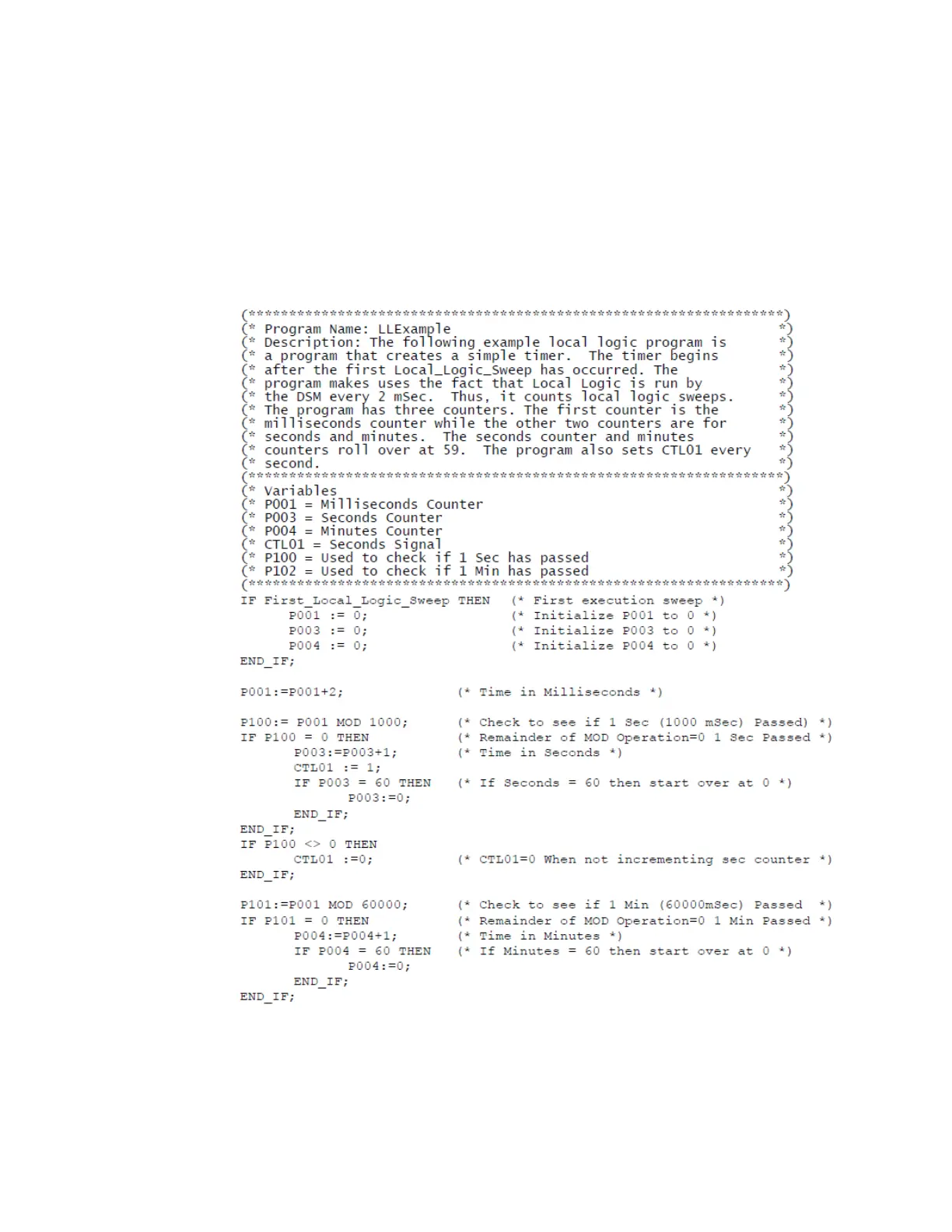

Sample Local Logic Program
Once you type the above program into the text editor, the editor screen will look similar to
Figure 121. .
