User Manual Chapter 2
GFK-1742F Jan 2020
System Overview 25
4.
Connect the Motor Encoder to the
α
Series Digital Servo Amplifier.
A.
Remove the protective plastic cap from the encoder connector on the motor,
and locate the K2 feedback cable CF3A-2MPB-0140-AZ. The cable is configured
so that it can only be attached to one connection on the motor.
B.
Plug the opposite end into the connection labeled JF1 on the bottom of the
Series servo amplifier (see Figure 10).
Repeat this procedure for all axes in the system.

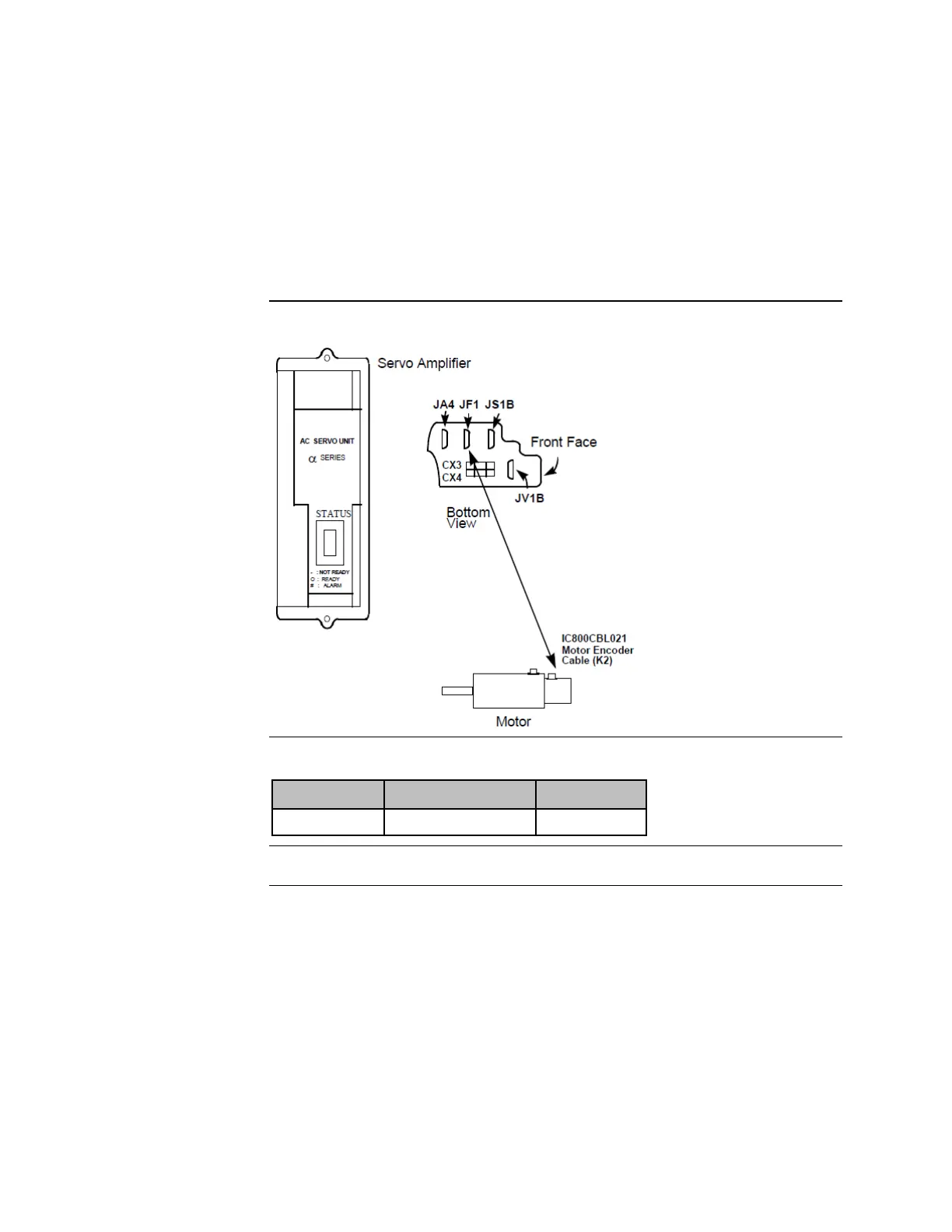

Figure 10: Connecting the
α
Series Motor Encoder
Table 8: Prefabricated
Servo Motor Encoder Cable (K2) for
3 to
40 Models
Motor Models
Severe Duty Cable
Cable Length
3 to
40
CF3A-2MPB-0140-AZ
14 meters
Note: Details on
cables can be found in the
Series AC Servo Motor Descriptions Manual, GFZ-
65142E, and in the
and
Series Product Specifications Guide, GFH-001.
