User Manual Appendix H

GFK-1742F Jan 2020

Using VersaPro with the DSM314 486

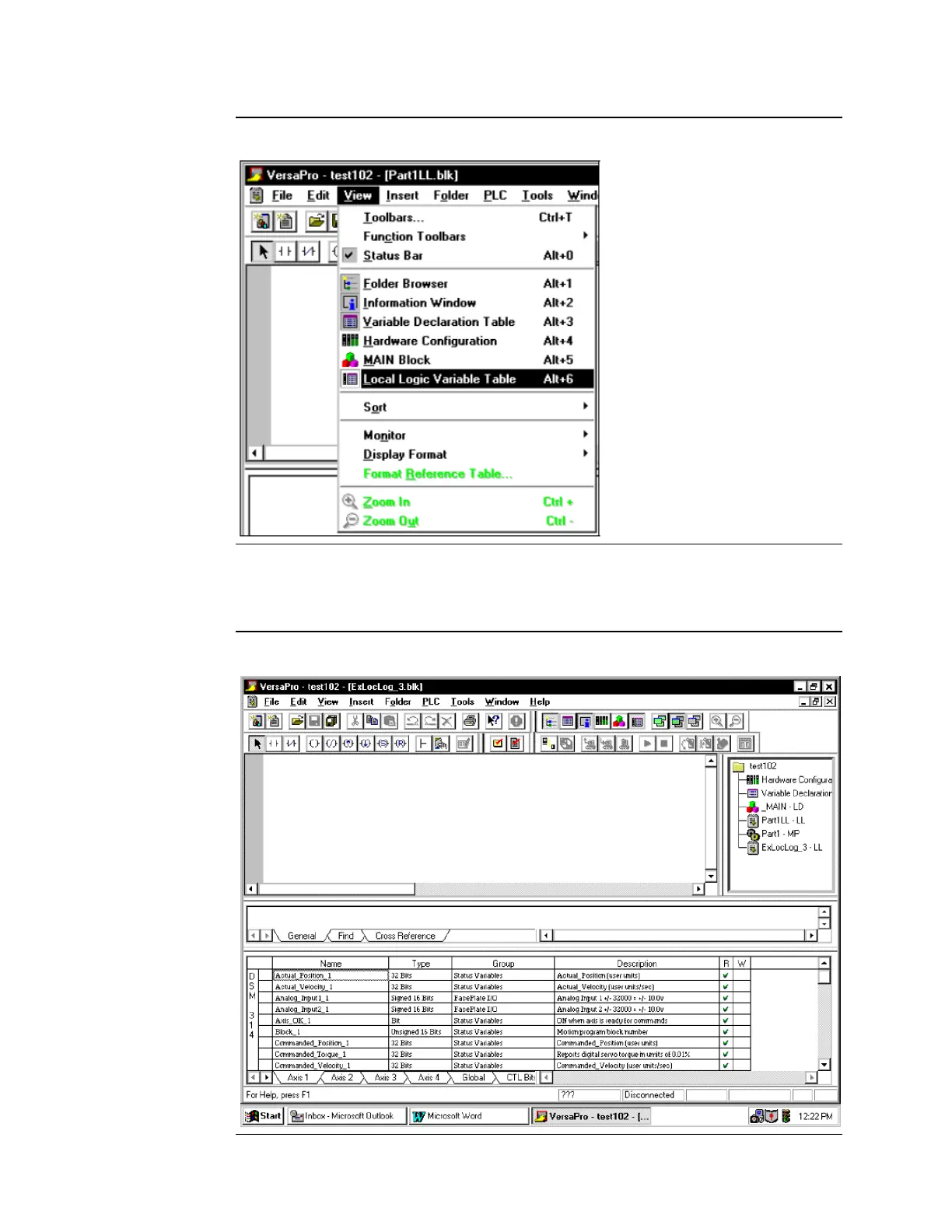

Figure 247: Selecting the Local Logic Variable Table from the View Menu

Once the Local Logic Variable Table appears near the bottom of the VersaPro screen, you

can drag its top border or column borders to size them to your preference. See the next

figure.

Figure 248: View Showing Local Logic Variable Table near Bottom of Screen
