Liebert DS Dimensions and Weights
18

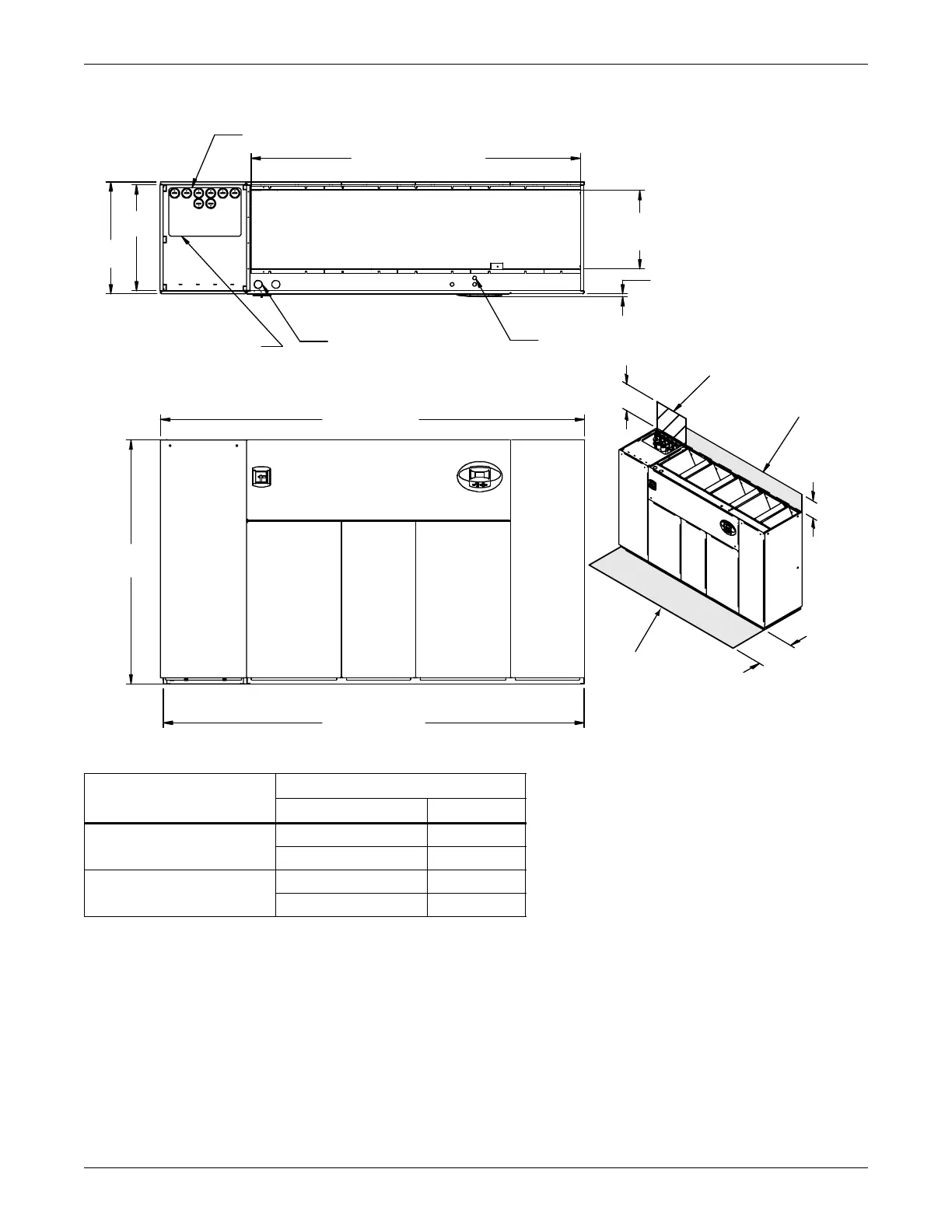

Figure 13 Cabinet and floor planning dimensions—downflow, water/glycol/GLYCOOL, 105kW (30 ton), all
compressor models
Table 10 Weights for downflow, water/glycol/GLYCOOL, 105kW (30 ton), all compressor models
Compressor Type
Dry Weight, lb (kg) approximate
Model 105
Semi-Hermetic Compressor
Water/Glycol 3410 (1550)
GLYCOOL/Dual-Cool 3770 (1714)
Scroll Compressor
Water/Glycol 3290 (1495)
GLYCOOL/Dual-Cool 3650 (1659)
Notes: Filters are accessible
through top of unit only.
Downflow electrical
connections can be made
from top or bottom of unit
TOP VIEW
AIR INLET OPENING
Shaded area indicates a
recommended minimum
clearance for component
access
Minimum required
for filter replacement
Secondary Entrance
High Volt Connection(s)
FRONT VIEW
Required for
condenser cleanout
Secondary Entrance
Low Volt Connections
Condenser Cleanout Access
Secondary Condenser
Fluid Entrance
24-3/8"
(619mm) Opening
3/4"
(19mm) Bezels
76"
(1930mm)
34" (864mm)
DPN001013
Rev. 3
15"
(381mm)
33"
(838mm)
24"
(610mm)
102-13/16" (2611mm)
Opening
35"
(889mm)
132" (3353mm)
131" (3327mm)
