Liebert DS Dimensions and Weights
19

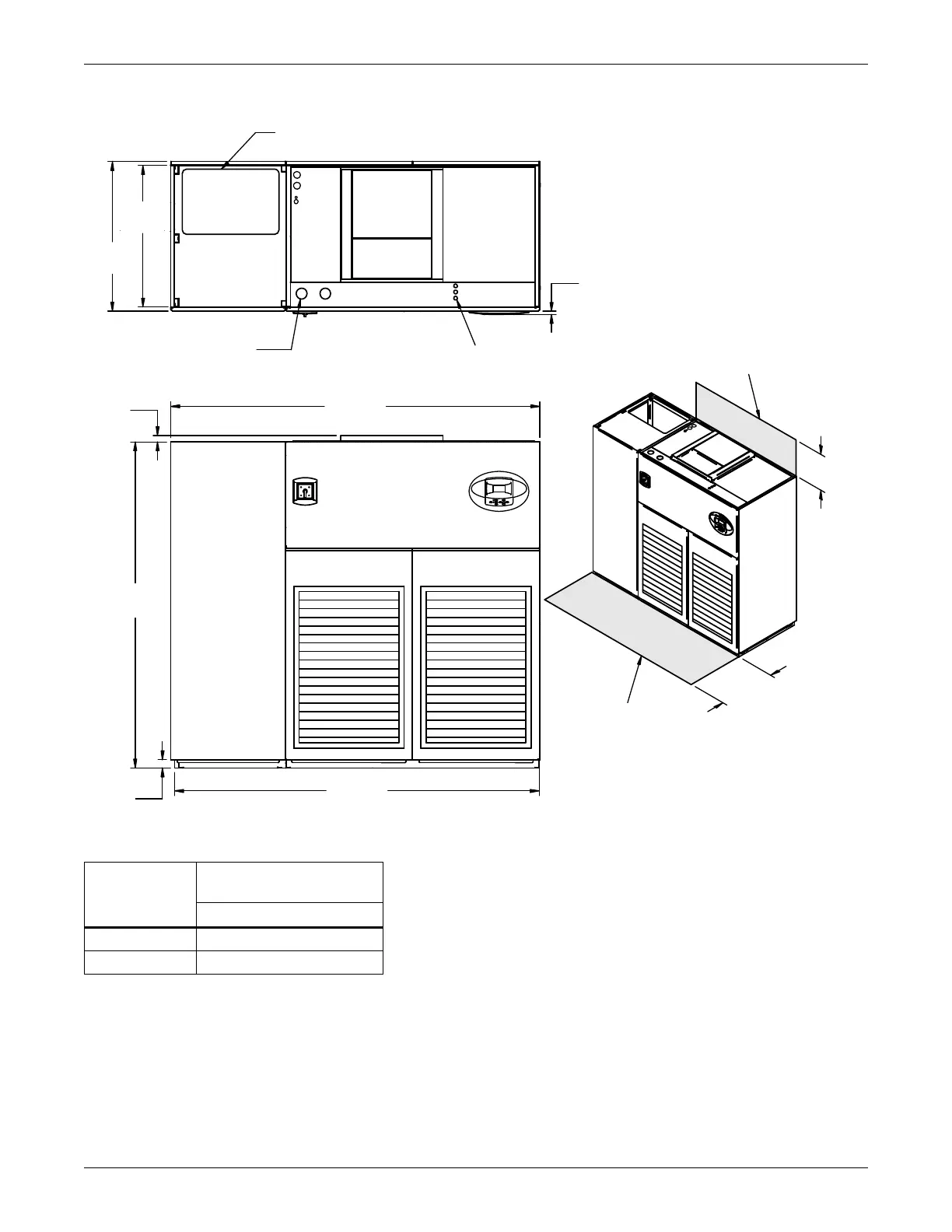

Figure 14 Cabinet and floor planning dimensions—upflow, air-cooled 28-42kW (8-12 ton), semi-hermetic
compressor models
Table 11 Weight for upflow, air-cooled, 28-42kW (8-12 ton), semi-hermetic compressor models
Model No.
Dry Weight, lb (kg)
approximate
028-042
Air-Cooled 1830 (830)
Dual-Cool 1980 (898)
DPN001162
Rev. 1
33"
(838mm)
35"
(889mm)
1-1/2"
(38mm)
86"
(2184mm)
Top View
76"
(1930mm)
High Volt Connection(s)
2"
(51mm)
85"
(2159mm)
34"
(864mm)
24"
(610mm)
Minimum required
for blower replacement
Shaded area indicates a
recommended minimum
clearance for component
access.
Front View
3/4"
(19mm)
Bezels
Low Volt Connection(s)
Alternate Refrigerant
Piping Entrance
Note: Front air return unit shown. For rear
return unit, in addition to front service area
shown, also include 25" (635mm) on one side
of unit for access to rear return filter box.
See DPN001196, Figure 30.
