Disassembling the Liebert DS for Transport

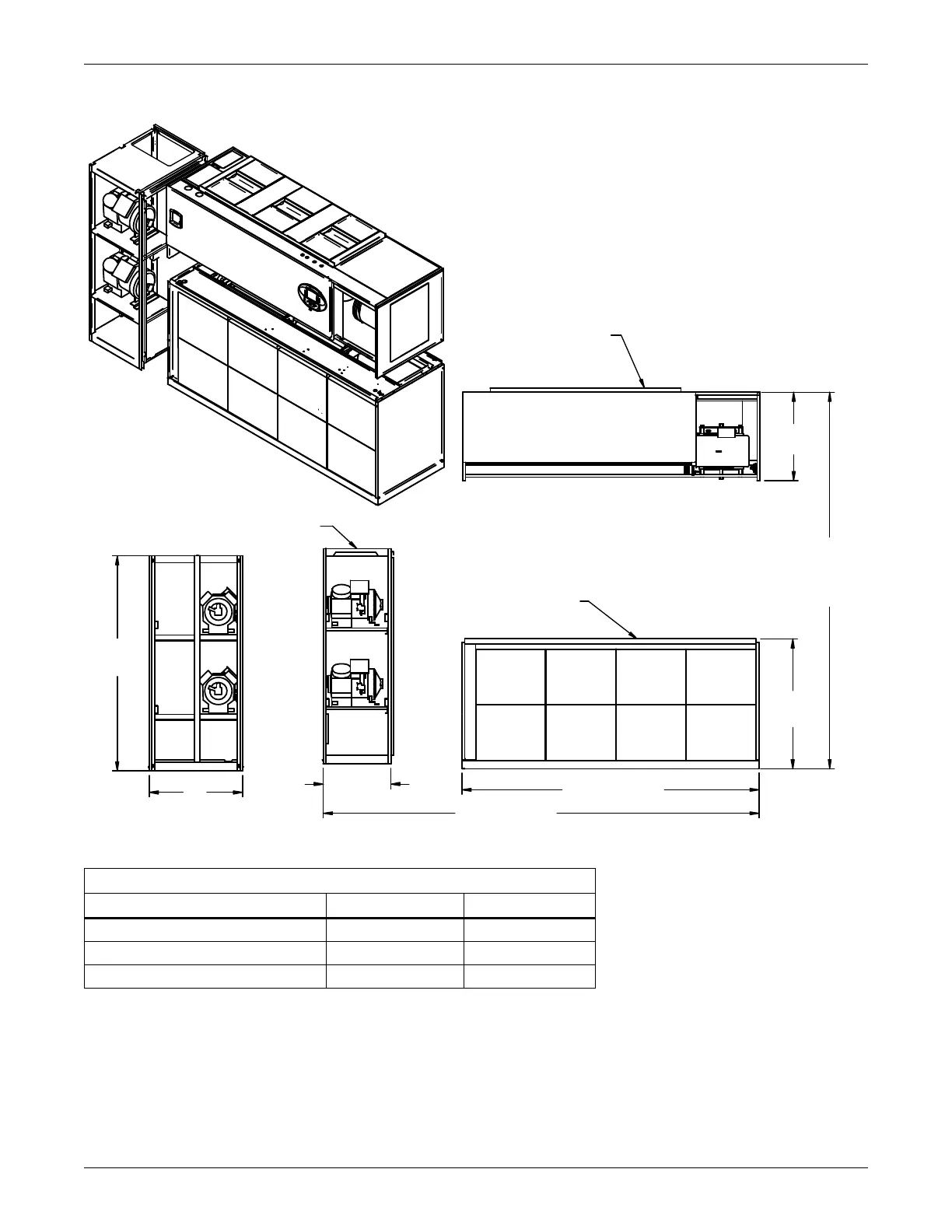

Figure 58 Component dimensions—upflow, air-cooled, 105kW (30 ton), semi-hermetic compressor

models

Table 44 Component weights—upflow, air-cooled, 105kW (30 ton), semi-hermetic compressor models

Dry Weight, Approximate, Including Panels, lb (kg)

Component

Air-Cooled Dual-Cool

Compressor Assembly 950 (431) 950 (431)

Blower & Electric Box Assembly 1080 (490) 1080 (490)

Filter & Coil Assembly 970 (440) 1300 (590)

DPN001254

REV 0

31-1/4"

(794mm)

33"

(838mm)

76"

(1930mm)

26"

(660mm)

Filter & Coil Assembly

Compressor

Assembly

Blower & Electric

Box Assembly

105" (2667mm)

131" (3327mm

Assembled Length

45-13/16"

(1164mm)

76"

(1930mm)

Assembled

Height

Drawing views are simplified with panels

removed to show overall dimensions.

See disassembly and handling instructions

in installation manual.
