Liebert DS Dimensions and Weights
15

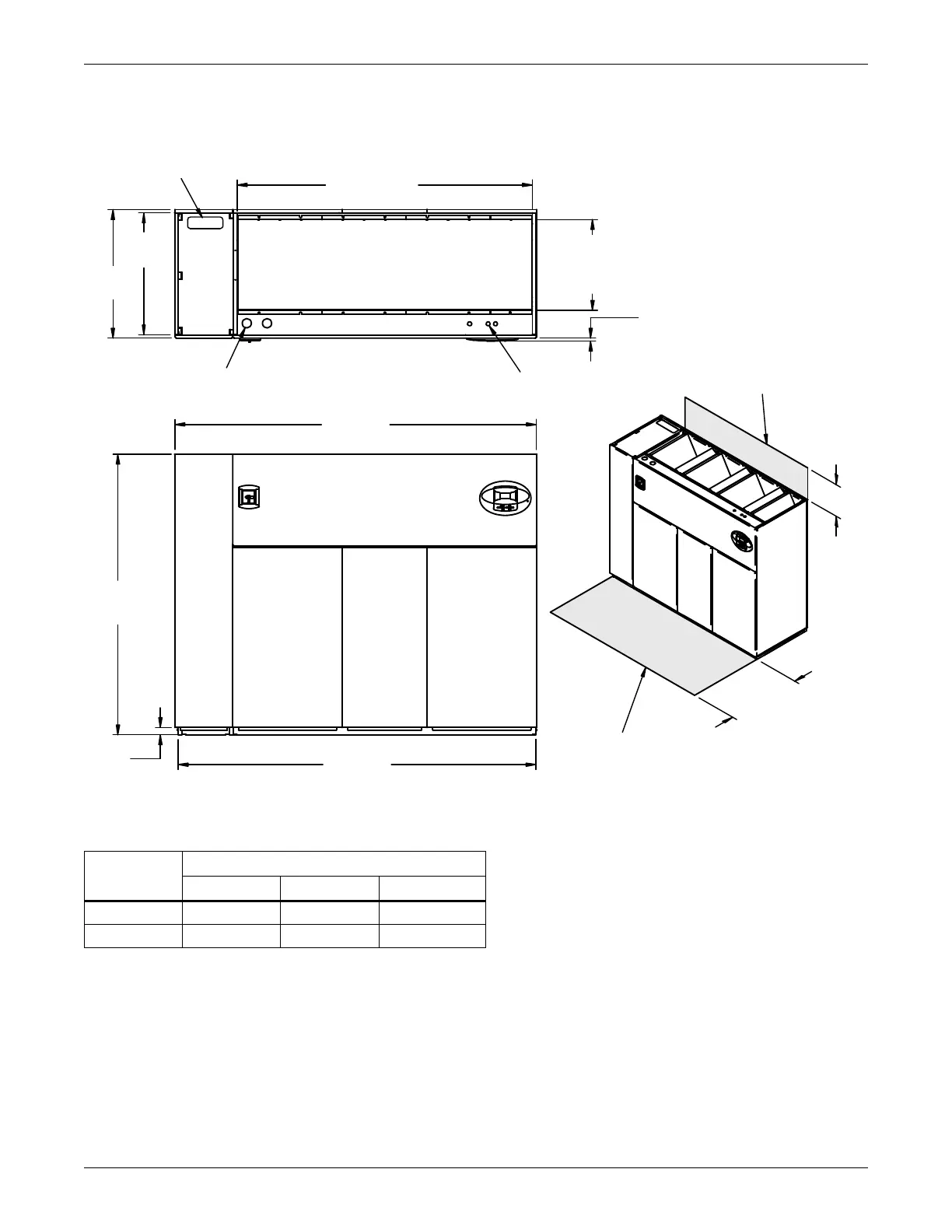

Figure 10 Cabinet and floor planning dimensions—downflow, air-cooled, 53-77kW (15-22 ton), scroll
compressor models
Table 7 Weights for downflow, air-cooled, 53-77kW (15-22 ton), scroll compressor models
Model No.
Dry Weight, lb (kg) Approximate
053 070 077
Air-Cooled 1920 (873) 1970 (896) 2020 (919)
Dual-Cool 2100 (955) 2150 (978) 2200 (1000)
15"
(381mm)
Notes: Filters are accessible
only through top of unit.
Downflow electrical
connections can be made
from top or bottom of unit.
Front View
Top View
Air Inlet Opening
Shaded area indicates a
recommended minimum
clearance for component
access.
Secondary Entrance
High Volt Connection(s)
Secondary Refrigerant
Piping Entrance
Secondary Entrance
Low Volt Connections
76"
(1930mm)
2"
(51mm)
DPN000925
Rev. 1
97"
(2464mm)
98"
(2489mm)
80"
(2032mm)
35"
(889mm)
24-5/8"
(625mm
Opening
3/4"
(19mm) Bezels
34"
(864mm)
33"
(838mm)
Minimum required
for filter replacement
Opening
