Liebert DS Dimensions and Weights
31

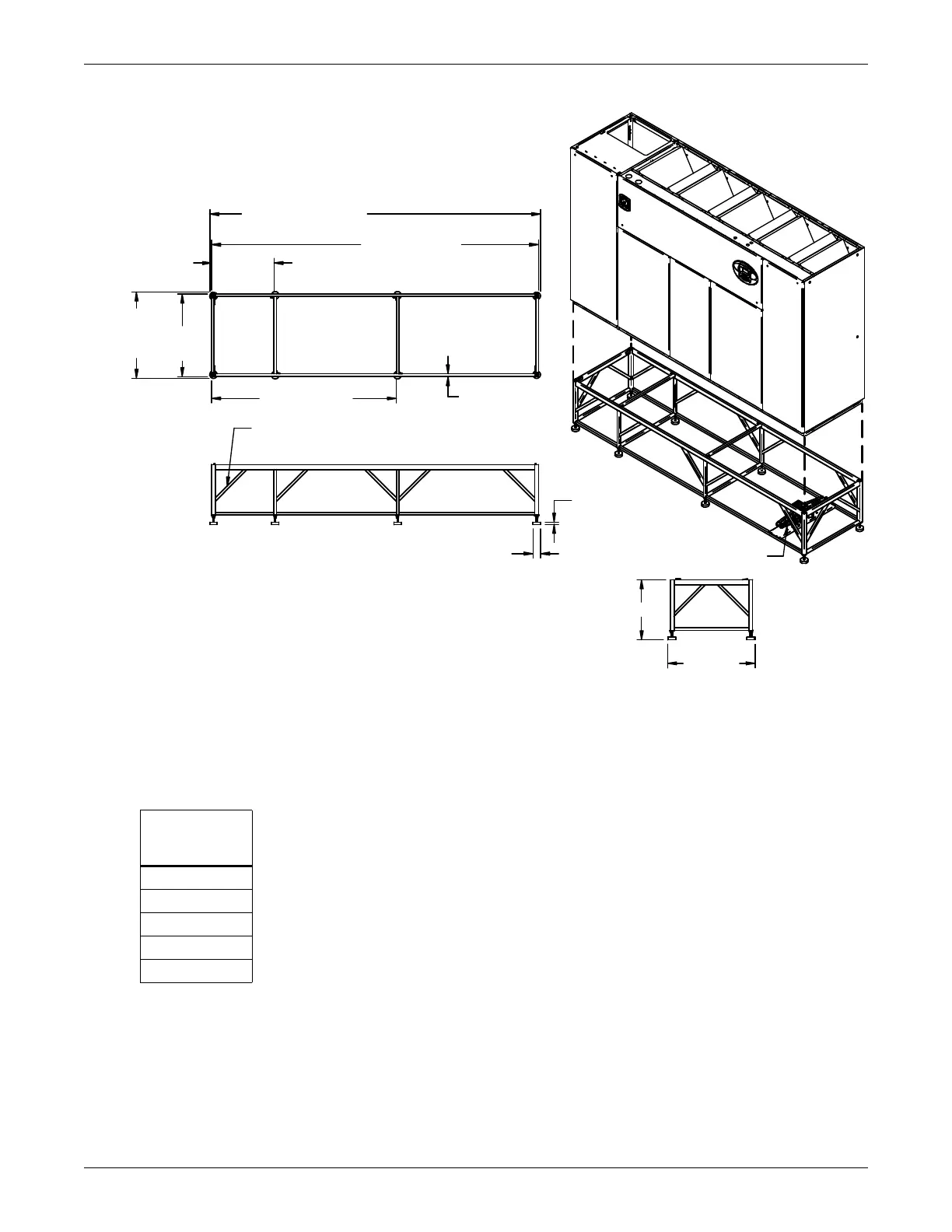

Figure 26 Floor stand and floor planning dimension, downflow 105kW (30 tons) models with EC fans
Table 23 Floor stand and floor planning dimensions—downflow, 105kW (30 ton) models with EC
fans
Height,
Dimension A
in. (mm)
24 (610)
30 (762)
36 (914)
42 (1067)
48 (1219)
A*
74" (1880mm)
NOTE:
1) This floor stand should be used when EC fans are intended to be lowered under
a raised floor. The standard Liebert DS floor stand can be used if the fans are to
remain in their original raised position.
2) Right side of paneled unit is flush with right side of floor stand. All other paneled
sides overhang floor stand 1" (25mm).
3) The floor stand used with EC units is not symmetrical and its orientation to the
Liebert DS is critical for lowering the EC fans. Unless the floor stand is installed in
the correct position, the blowers will not lower into the floor stand.
4) Jack and jack support are shipped loose and are intended to be placed into position
under each fan and utilized to lower or raise that fan as needed.
* Leveling feet are provided with ± 1-1/2" (38mm) adjustment from nominal height “A”
Gussets supplied on floor stands
12" (305 mm) tall and greater
DPN002152
Rev. 0
See Note 4
35"
(889mm)
Overall Depth
7/8"
(23mm)
3" (76mm)
33"
(838mm)
34-1/2"
(876mm)
(with feet)
132-1/2" (3366mm)
(with feet)
25"
(635mm)
131" (3327mm)
1" (25mm) Typ.
