Emerson Liebert DS Series - Figure 50 Component Dimensions-Downflow, Air-Cooled, 105 Kw (30 Ton), Scroll Compressor Models; Forward-Curved and EC Fan; Table 36 Component Weights-Downflow, Air-Cooled, 105 Kw (30 Ton), Scroll Compressor Models

Disassembling the Liebert DS for Transport
62

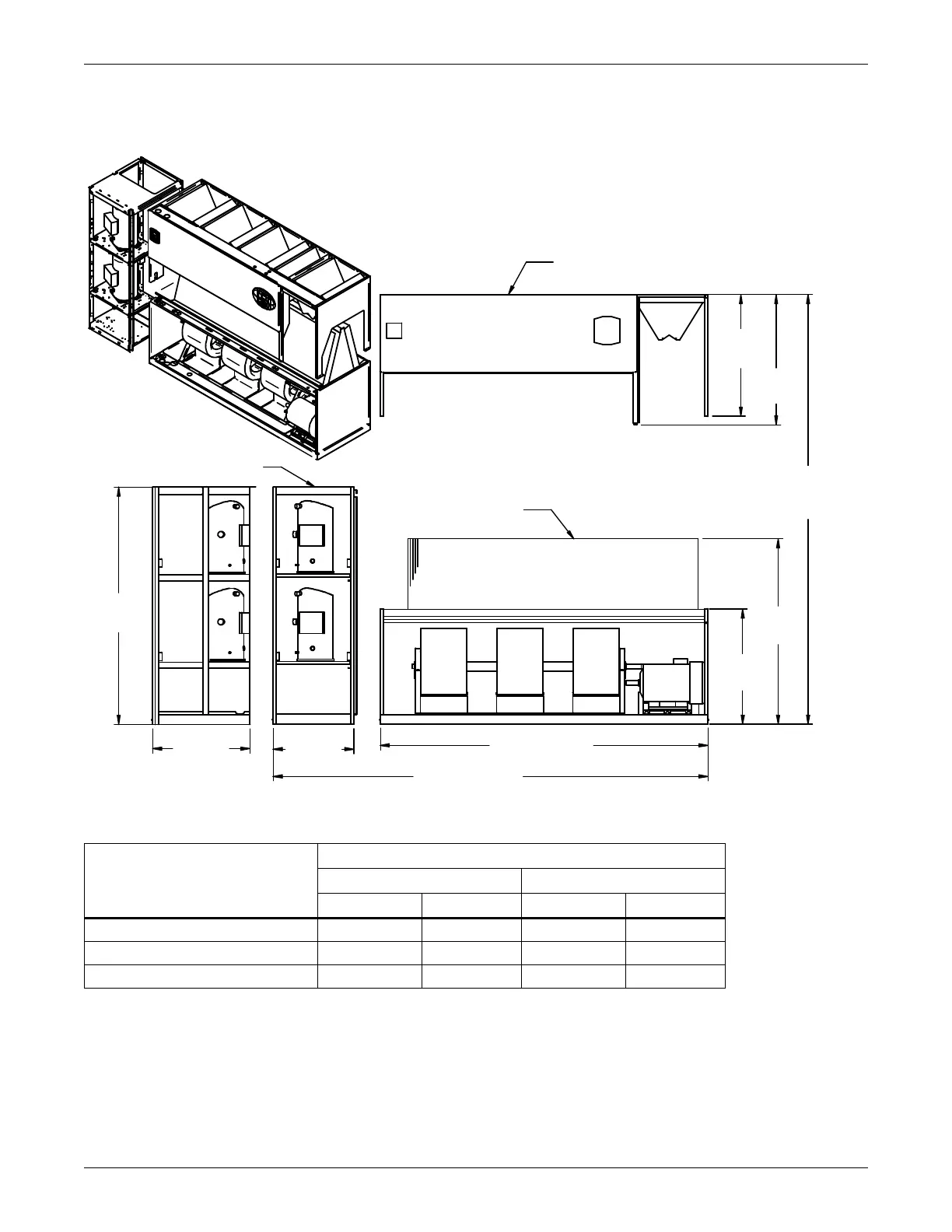

Figure 50 Component dimensions—downflow, air-cooled, 105kW (30 ton), scroll compressor models;
forward-curved and EC fan
Table 36 Component weights—downflow, air-cooled, 105kW (30 ton), scroll compressor models;
forward-curved and EC fan
Component
Dry Weight, lb (kg) Approximate (Includes Panels)
Forward Curved Fans EC Fans
Air-Cooled Dual Cool Air-Cooled Dual Cool
Compressor Assembly 830 (377) 830 (377) 830 (377) 830 (377)
Filter & Electric Box Assembly 270 (123) 270 (123) 270 (123) 270 (123)
Blower & Coil Assembly 1820 (827) 2180 (991) 1560 (708) 1915 (870)
DPN001058
Rev. 1
131" (3327mm)
Assembled Length
76"
1930mm
Assembled Height
Blower and
Coil Assembly
Compressor Assembly
Filter & Electric
Box Assembly
37"
(940mm)
59-7/16"
(1510mm)
39"
(991mm)
41-11/16"
(1059mm)
76"
(1930mm)
26"
(660mm)
105" (2667mm)
33"
(838mm)
Drawing views are simplified
with panels removed to show
overall dimensions.
See disassembly and handling
instructions in installation manual.
