Liebert DS Dimensions and Weights
14

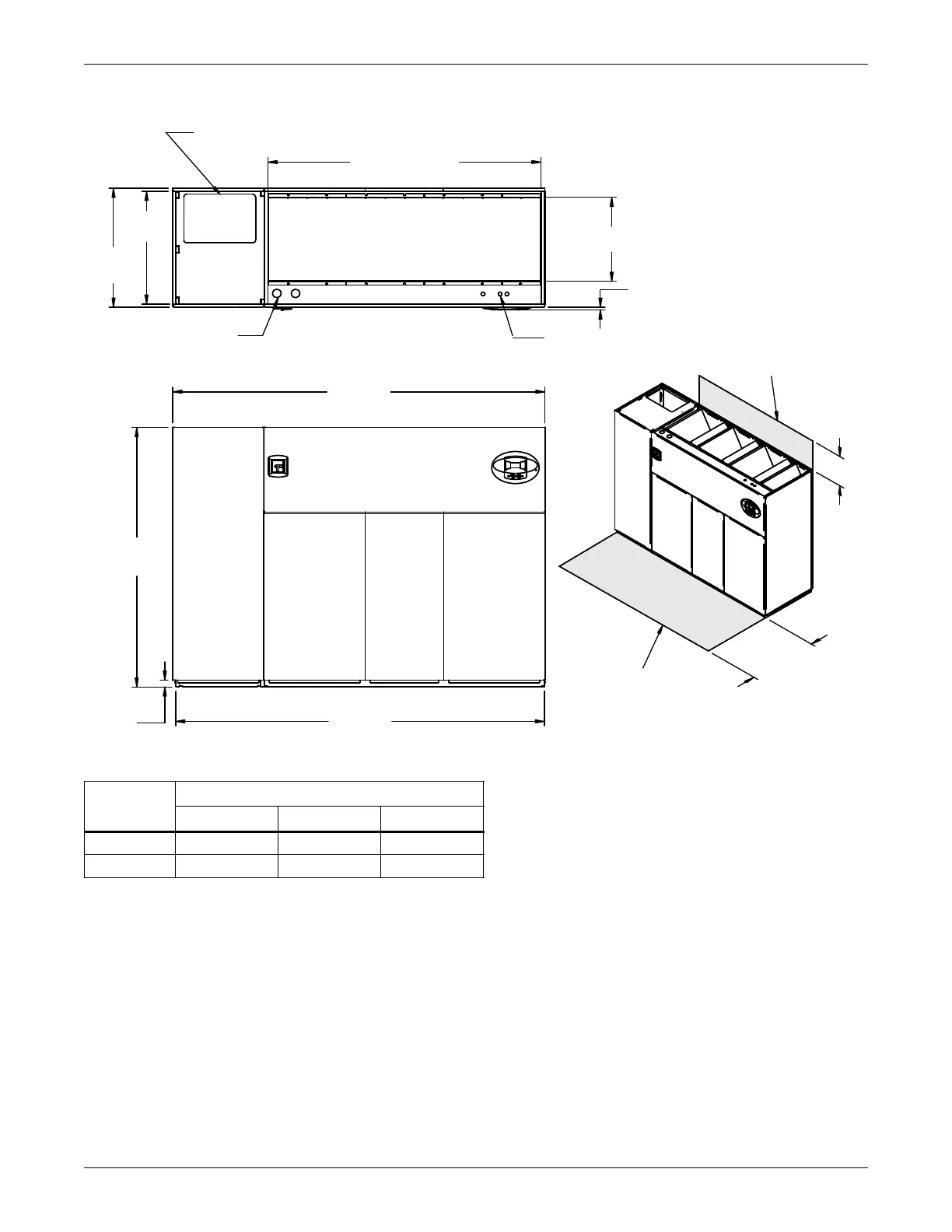

Figure 9 Cabinet and floor planning dimensions—downflow, air-cooled, 53-77kW (15-22 ton),
semi-hermetic compressor models
Table 6 Weights for downflow, air-cooled, 53-77kW (15-22 ton), semi-hermetic compressor models
Model
Dry Weight, lb (kg) Approximate
053 070 077
Air-Cooled 2350 (1069) 2400 (1091) 2450 (1114)
Dual-Cool 2530 (1150) 2580 (1173) 2630 (1196)
33"
(838mm)
35"
(889mm)
109"
(2769mm)
76"
(1930mm)
2"
(51mm)
108"
(2743mm)
34"
(864mm)
Shaded area indicates a
recommended minimum
clearance for component
yaccess.
15"
(381mm)
3/4"
(19mm)
24-3/8"
(619mm)
80"
(2032mm)
Second Refrigerant
Piping Entrance
Air Inlet Opening
Opening
Opening
Bezels
Secondary Entrance
Low Volt Connections
Minimum required
for filter replacement
Secondary Entrance
High Volt Connection(s)
Top View
Front View
Notes:Filters are accessible
through top of unit only.
Downflow electrical
connections can be made
from top or bottom of unit.
DPN000924
Rev. 2
