Liebert DS Dimensions and Weights
34

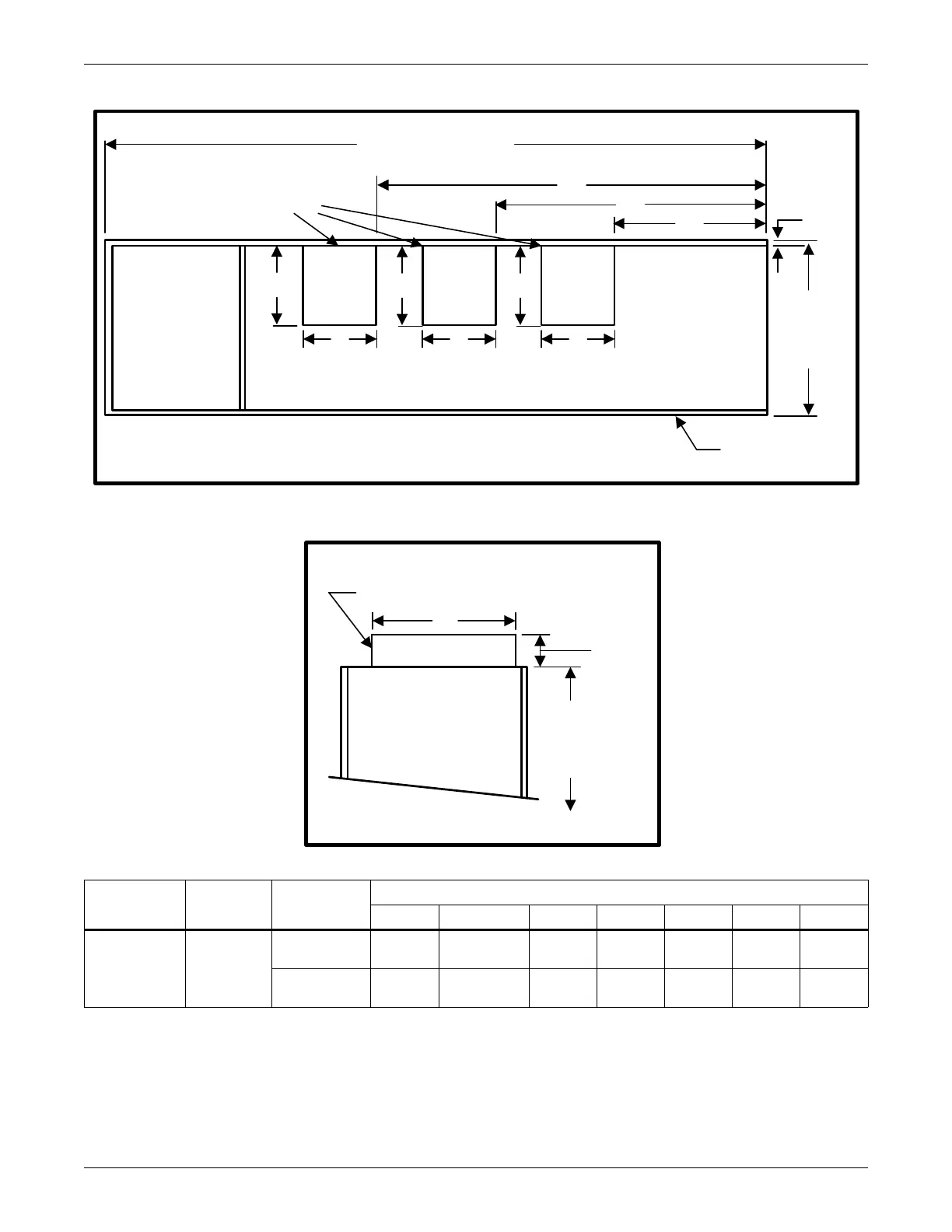

Figure 29 Blower outlet and deck dimensions—upflow 105kW (30ton)
Table 26 Blower outlet and deck dimensions—upflow 105kW (30ton)
Models Blower Supply
Dimensions, in. (mm)
ABCDE FG
105kW
(30 ton)
15 x 11
Front
Throw
15-7/8
(404)
14-11/16
(373)
2-1/8
(54)
25-5/8
(651)
30-3/4
(781)
54-1/2
(1384)
78-1/8
(1984)
Rear
Throw
15-7/8
(404)
14-11/16
(373)
11-5/8
(295)
25-5/8
(651)
30-3/4
(781)
54-1/2
(1384)
78-1/8
(1984)
1-1/2"
(38mm)
A A A
G
F
E
C
132" (3353mm)
35"
(889mm)
Ref
Front of Unit
Blower
Outlets *
Blower Outlet Location – TOP VIEW
Blower Deck
* Duct Flanges Not Provided
Top of Unit
D
Front or Rear Throw Air Supply
76"
(1930mm)
Ref
DPN001192
Rev. 0
B B B
