Disassembling the Liebert DS for Transport
63

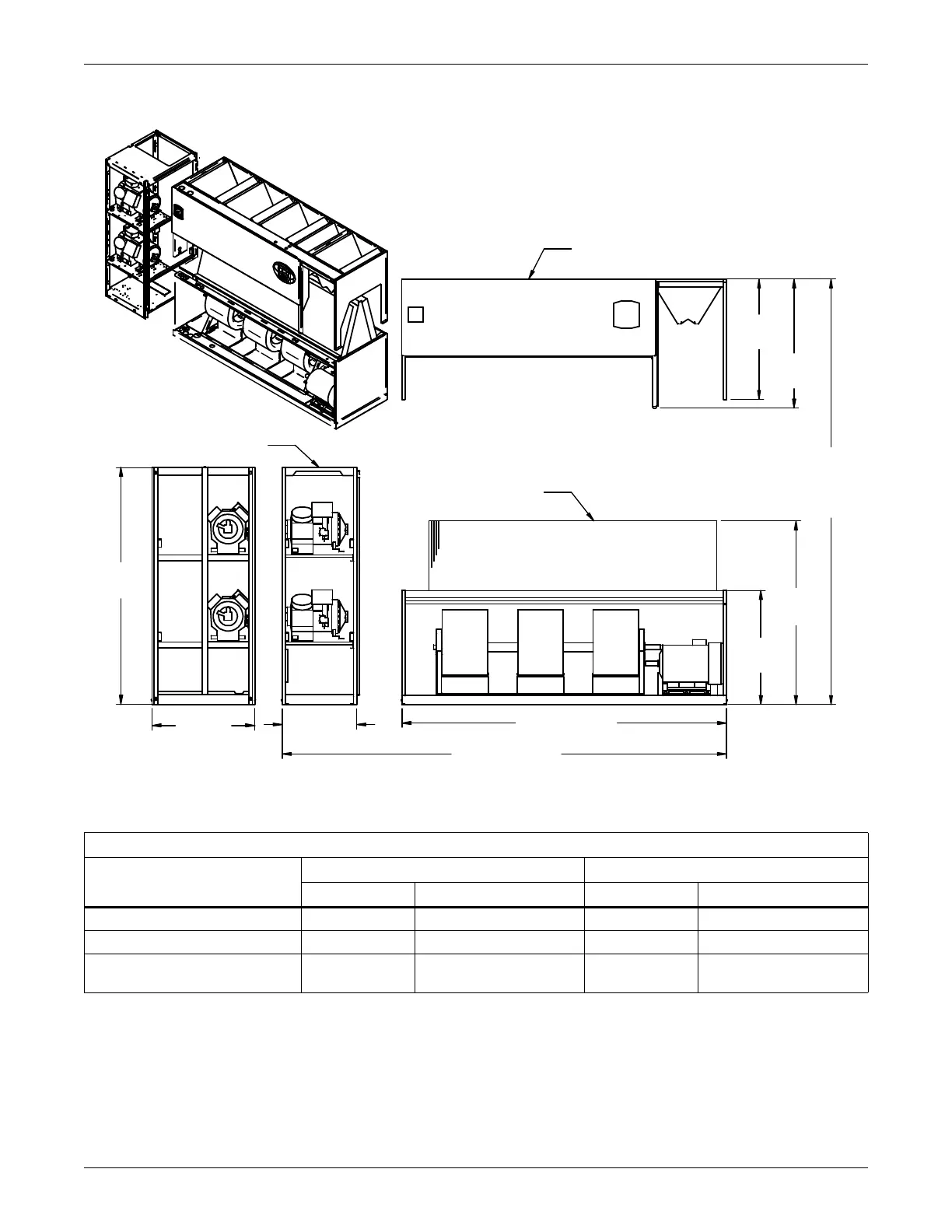

Figure 51 Component dimensions—downflow, water/glycol/GLYCOOL, 105kW (30 ton), forward-curved
and EC fan, all compressor models; forward-curved and EC fan
Table 37 Component weights—downflow, water/glycol/GLYCOOL, 105kW (30 ton), all compressor
models; forward-curved and EC fan
Dry Weight, Approximate, Including Panels, lb (kg)
Component
Semi-Hermetic Compressor Scroll Compressor
Water/Glycol GLYCOOL/Dual-Cool Water/Glycol GLYCOOL/Dual-Cool
Compressor Assembly 1320 (600) 1320 (600) 1200 (545) 1200 (545)
Filter & Electric Box Assembly 270 (123) 270 (123) 270 (123) 270 (123)
Blower & Coil Assembly,
Forward-Curve Fan / EC Fan)
1820 (827) /
1560 (708)
2180 (991) /
1915 (870)
1820 (827) /
1560 (708)
2180 (991) /
1915 (870)
DPN001060
Rev. 1
59-7/16"
(1510mm)
Filter & Electric
Box Assembly
33"
(838mm)
76"
(1930mm)
76"
(1930mm)
Assembled
Height
26"
(660mm)
Compressor Assembly
Blower and
Coil Assembly
131" (3327mm)
Assembled Length
105" (2667mm)
37"
(940mm)
39"
(991mm)
41-11/16"
(1059mm)
Drawing views are simplified
with panels removed to show
overall dimensions.
See disassembly and handling
instructions in installation manual.
