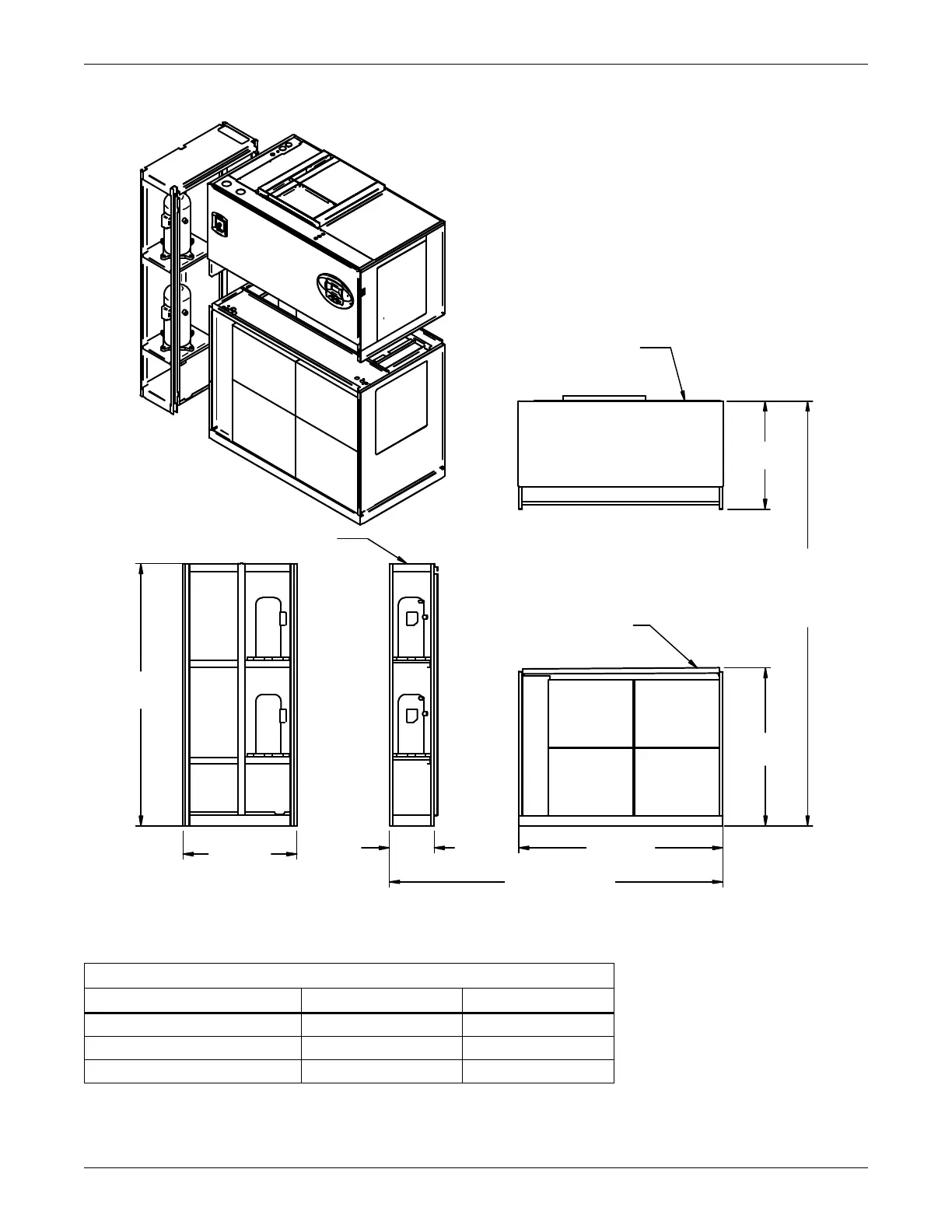

Figure 53 Component dimensions—upflow, air-cooled, 28-42kW (8-12 ton), scroll/digital scroll
compressor models
Table 39 Component weights—upflow, air-cooled, 28-42kW (8-12 ton), scroll/digital scroll compressor
models
Dry Weight, Approximate, Including Panels, lb (kg)
Component
Air-Cooled Dual-Cool
Compressor Assembly 490 (223) 490 (223)
Blower & Electric Box Assembly 510 (231) 510 (231)
Filter & Coil Assembly 520 (236) 670 (304)
31-1/4"
(794mm)
76"
(1930mm)
Assembled
Height
45-13/16"
(1163mm)
DPN001172
Rev. 0
59"
(1499mm)
72" (1829mm)
13"
(330mm)
33"
(838mm)
76"
(1930mm)
Compressor Assembly
Filter & Coil Assembly
Blower & Electric
Box Assembly
Assembled Length
Drawing views are simplified with panels
removed to show overall dimensions.
See disassembly and handling instructions
in installation manual.
