Liebert DS Dimensions and Weights
32

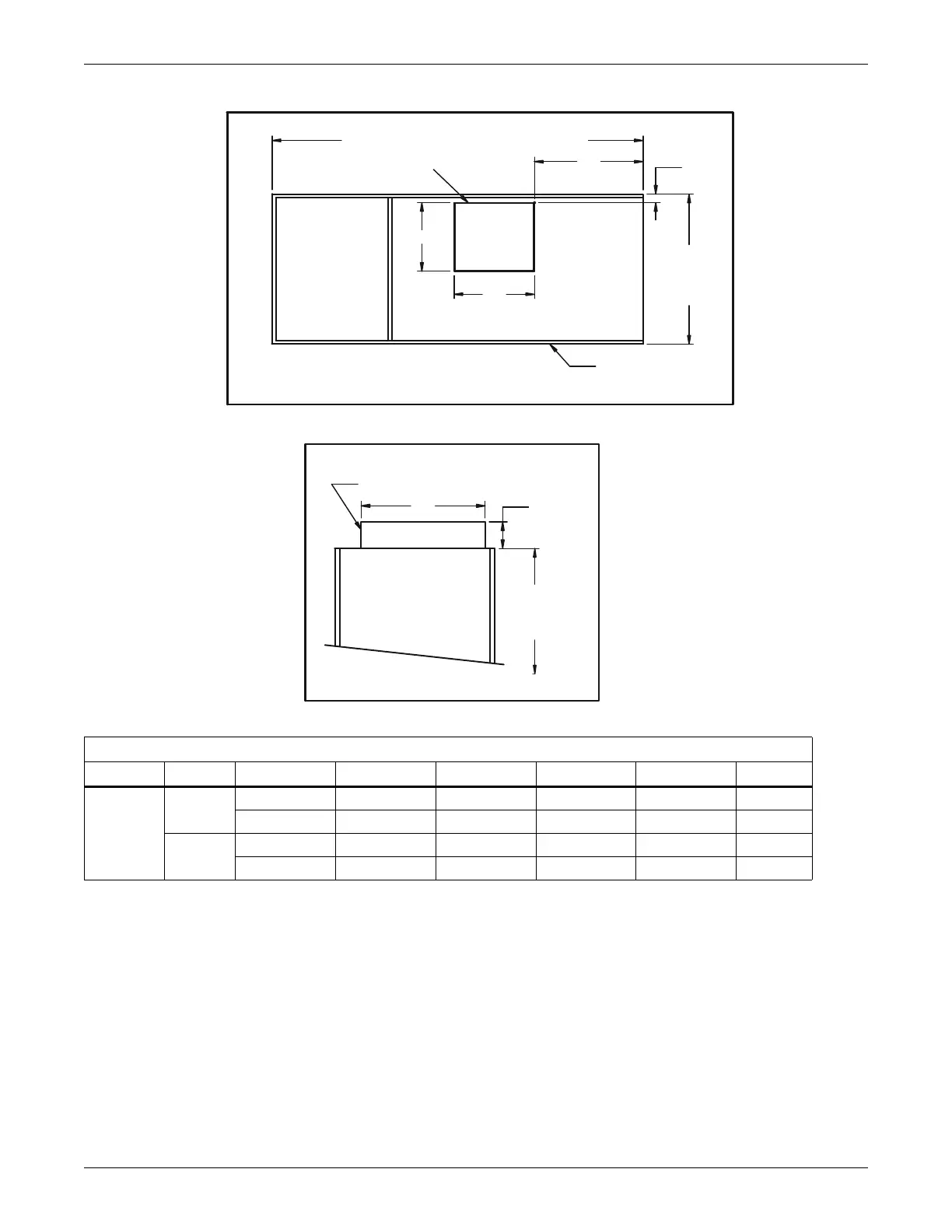

Figure 27 Blower outlet and deck dimensions—upflow, 28-42kW (8-12 ton)
Table 24 Blower outlet and deck dimensional data for upflow, 28-42kW (8-12 ton)
Dimensional data, in. (mm)
Model Blower Supply ABCDE
28-42kW
(8-12ton)
15 x 15
Front Throw 15-7/8 (404) 18-5/8 (472) 2-1/8 (54) 25-5/8 (651) 25 (635)
Rear Throw 15-7/8 (404) 18-5/8 (472) 11-5/8 (295) 25-5/8 (651) 25 (635)
15 x 11
Front Throw 15-7/8 (404) 14-1/2 (368) 2-1/8 (54) 25-5/8 (651) 25 (635)
Rear Throw 15-7/8 (404) 14-1/2 (368) 11-5/8 (295) 25-5/8 (651) 25 (635)
E
C
B
A
D
73" (1854mm) or 86" (2184mm) Ref
35"
(889mm)
Ref
76"
(1930mm)
Ref
1-1/2"
(38mm)
Blower Deck
DPN001120
Rev. 2
Blower Outlet *
* Duct flange not provided
Blower Outlet Location - Top View
Top of Unit
Front or Rear Throw Air Supply
