Emerson Liebert DS Series - Figure 17 Cabinet and Floor Planning Dimensions-Upflow, Air-Cooled, 53-77 Kw (15-22 Ton); Semi-Hermetic Compressor Models; Table 14 Weights for Upflow, Air-Cooled, 53-77 Kw (15-22 Ton), Semi-Hermetic Compressor Models

Liebert DS Dimensions and Weights
22

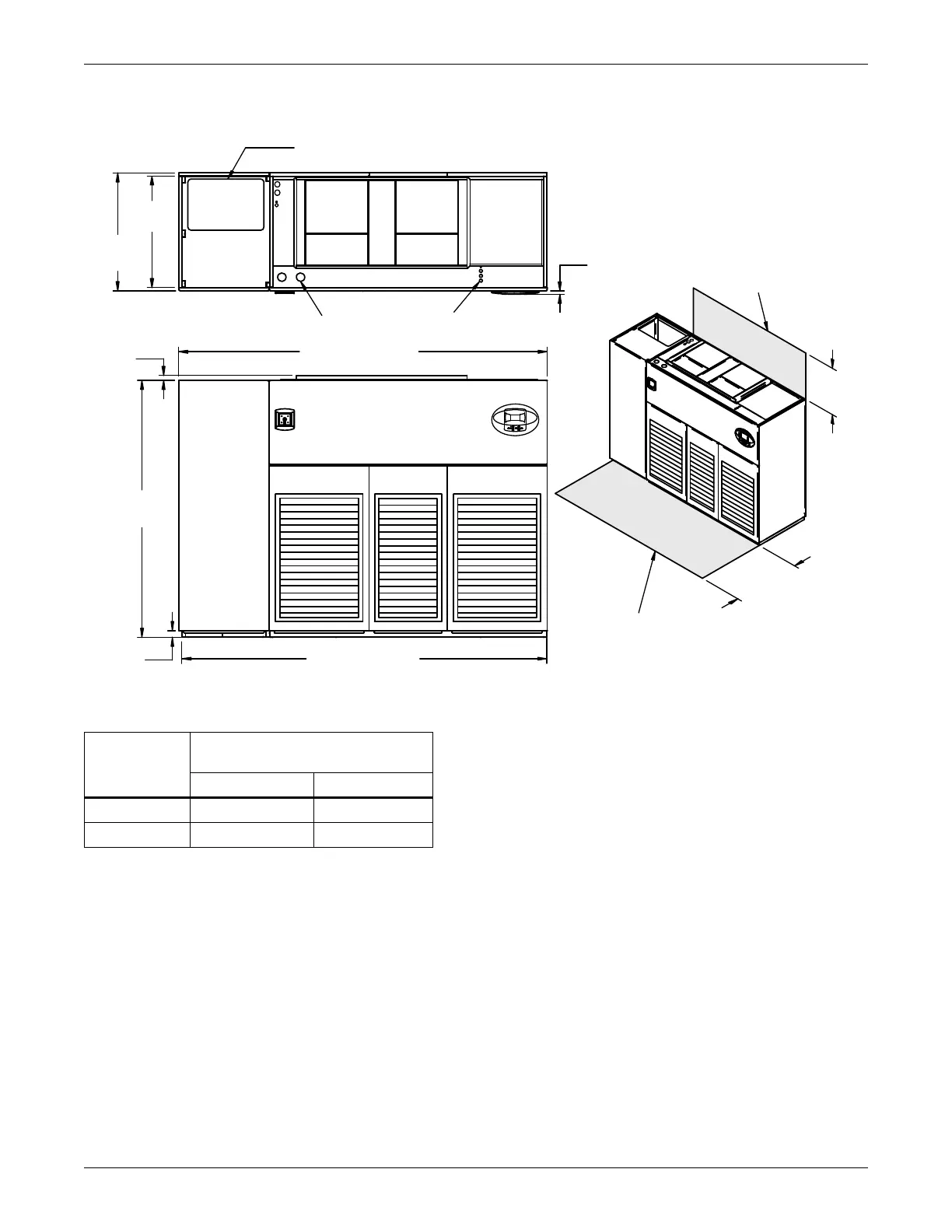

Figure 17 Cabinet and floor planning dimensions—upflow, air-cooled, 53-77kW (15-22 ton), semi-hermetic
compressor models
Table 14 Weights for upflow, air-cooled, 53-77kW (15-22 ton), semi-hermetic compressor models
Model
Dry Weight, lb (kg)
approximate
053 070, 077
Air-Cooled
2350 (1069) 2500 (1134)
Dual
-Cool
2530 (1150) 2680 (1216)
DPN001165
Rev. 1
TOP VIEW
FRONT VIEW
High Volt Connection(s)
Alternate Refrigerant
Piping Entrance
Low Volt Connection(s)
Shaded area indicates a
recommended minimum
clearance for component
access.
3/4"
(19mm)
Bezels
35"
(889mm)
33"
(838mm)
76"
(1930mm)
2"
(51mm)
109" (2769mm)
108" (2743mm)
1-1/2"
(38mm)
24"
(610mm)
34"
(864mm)
Minimum required
for blower replacement
Note: Front air return unit shown. For rear
return unit, in addition to front service area
shown, also include 25" (635mm) on one side
of unit for access to rear return filter box.
See DPN001196, Figure 30.
